Actuator Power Source Circuit
Actuator Power Source Circuit

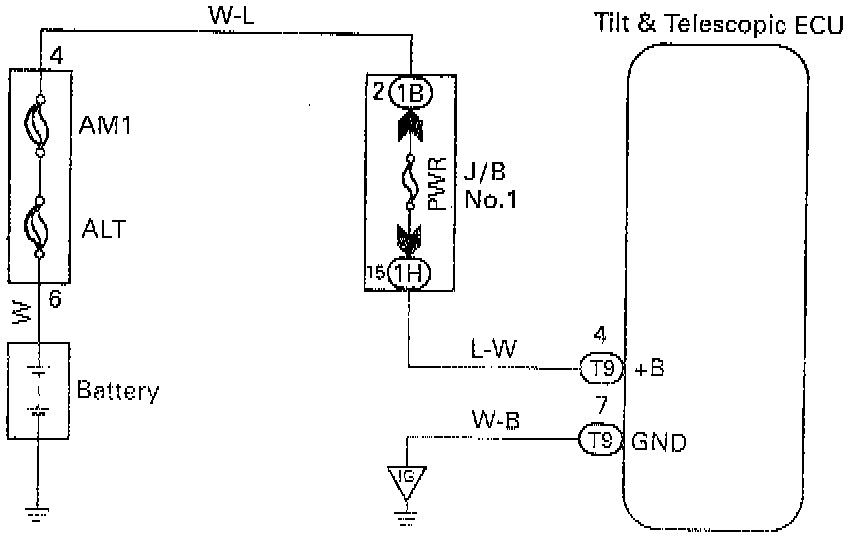

Actuator Power Source Circuit Diagram:
CIRCUIT DESCRIPTION
This is the power source for the motor.

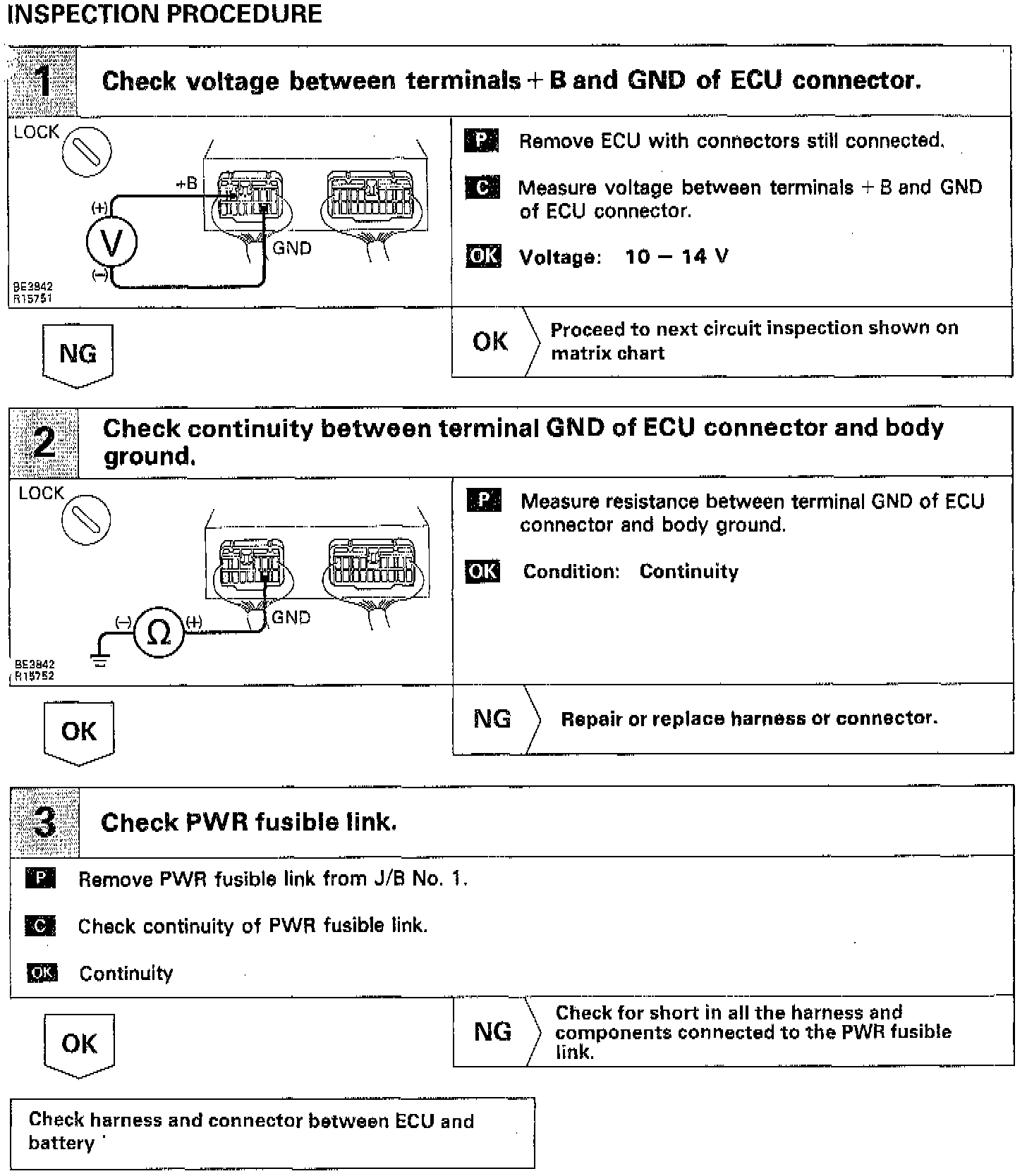

INSPECTION PROCEDURE
