Removal and Installation

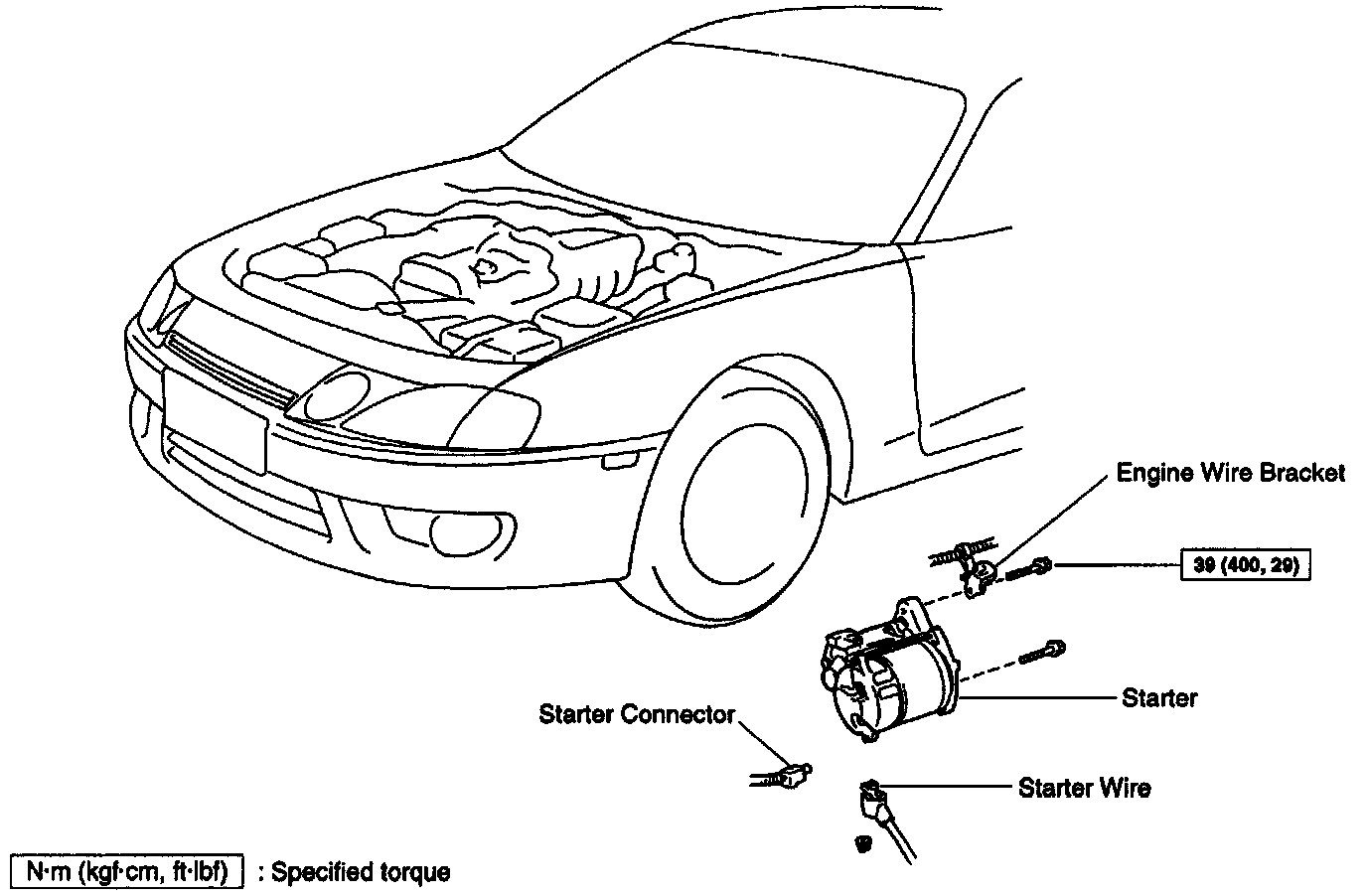

COMPONENTS FOR REMOVAL AND INSTALLATION

STARTER REMOVAL
REMOVE STARTER

(a) Disconnect the negative terminal of the battery.

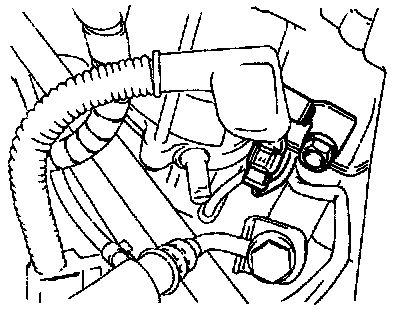

(b) Disconnect the starter connector.
(c) Remove the nut and disconnect the starter wire.

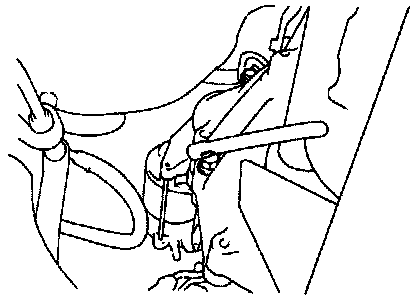

(d) Remove the 2 bolts and starter.
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

STARTER INSTALLATION
Installation is in the reverse order of removal.
