Ignition Switch: Testing and Inspection

IGNITION SWITCH INSPECTION

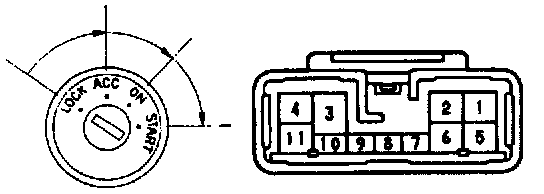

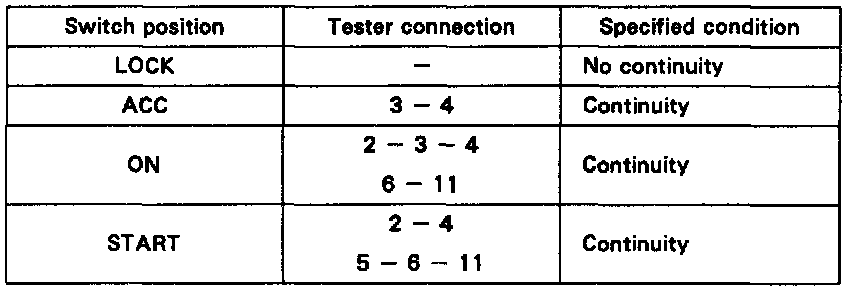

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

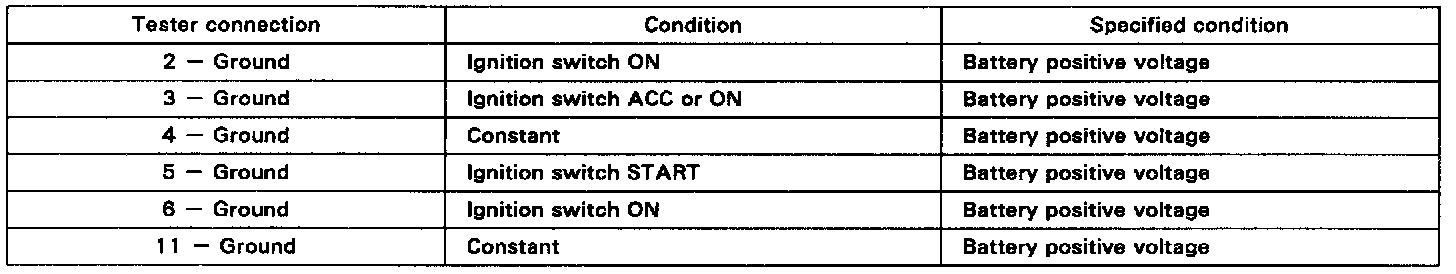

2. INSPECT SWITCH CIRCUIT

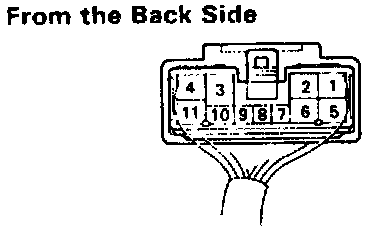

Connect the switch connector and inspect the connector on the wire harness side from the back side, as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.

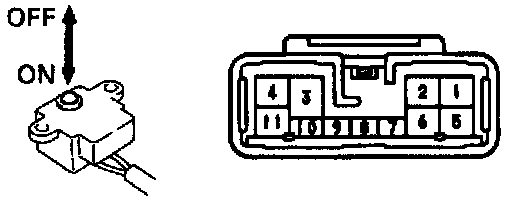

KEY UNLOCK WARNING SWITCH INSPECTION

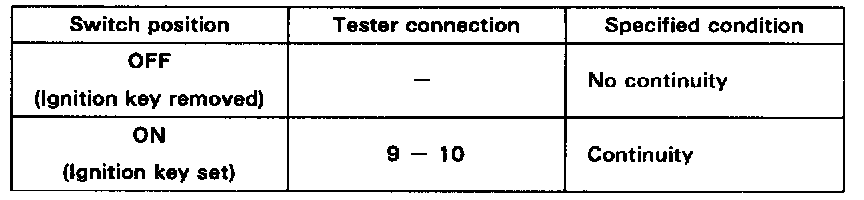

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

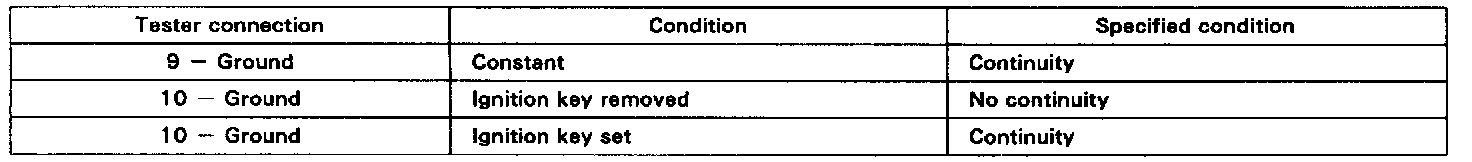

2. INSPECT SWITCH CIRCUIT
Connect the switch connector and inspect the connector on the wire harness side from the back side, as shown.
If circuit is not as specified, inspect the switch or wire harness.
