Removal and Installation

COMPONENTS FOR REMOVAL AND INSTALLATION

GENERATOR REMOVAL





1. REMOVE ENGINE UNDER COVER

2. REMOVE DRIVE BELT
Loosen the belt tension by turning the drive belt tensioner clockwise and remove the drive belt.

INSTALLATION NOTE: Do an on - vehicle inspection. (See steps 5 to 7 in on - vehicle inspection)

3. REMOVE GENERATOR

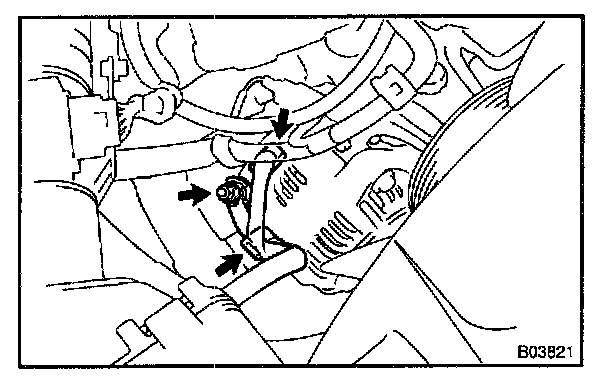

(a) Disconnect the generator connector.
(b) Remove the cap and nut and disconnect the generator wire.
(c) Disconnect the generator wire clamp from the wire clip on the generator.

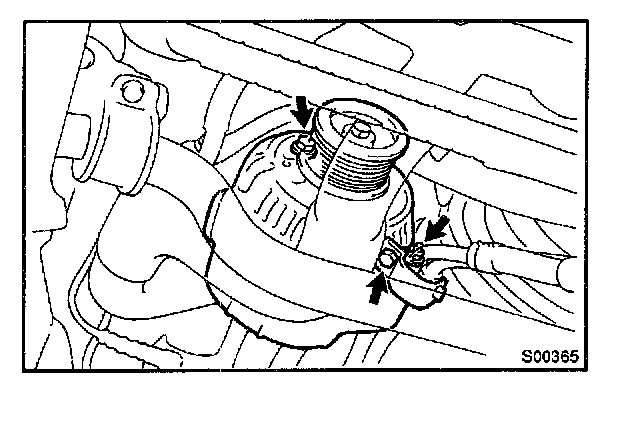

(d) A/T:
Remove the bolt and pipe clamp and disconnect the 2 A/T oil cooler pipes from the generator.
(e) Remove the bolt, nut, pipe bracket and generator.
Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

GENERATOR INSTALLATION
Installation is in the reverse order of removal.
