Home >> Lexus >> 1997 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Torque Specifications

Torque Specifications

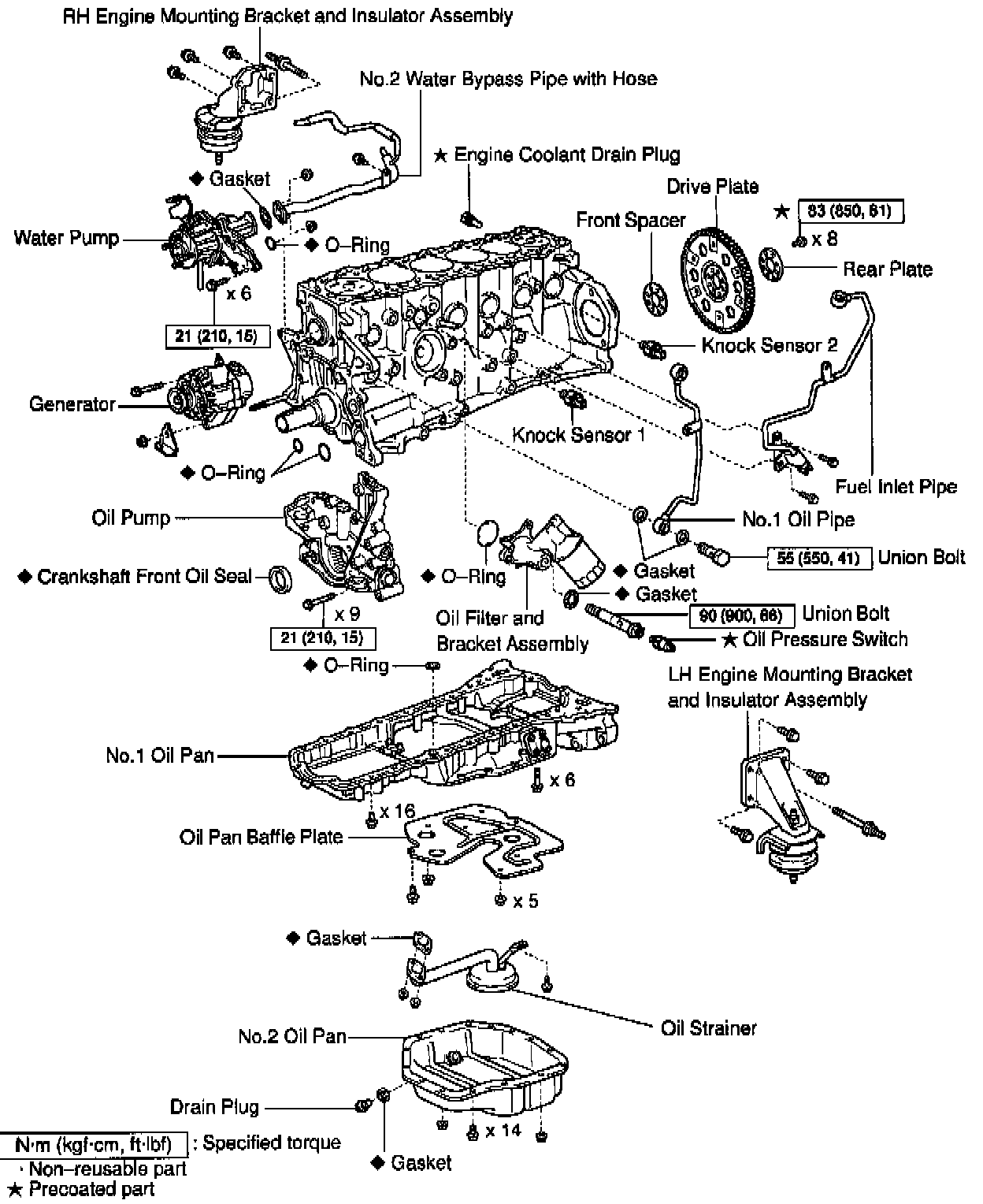

Part 1 of 7

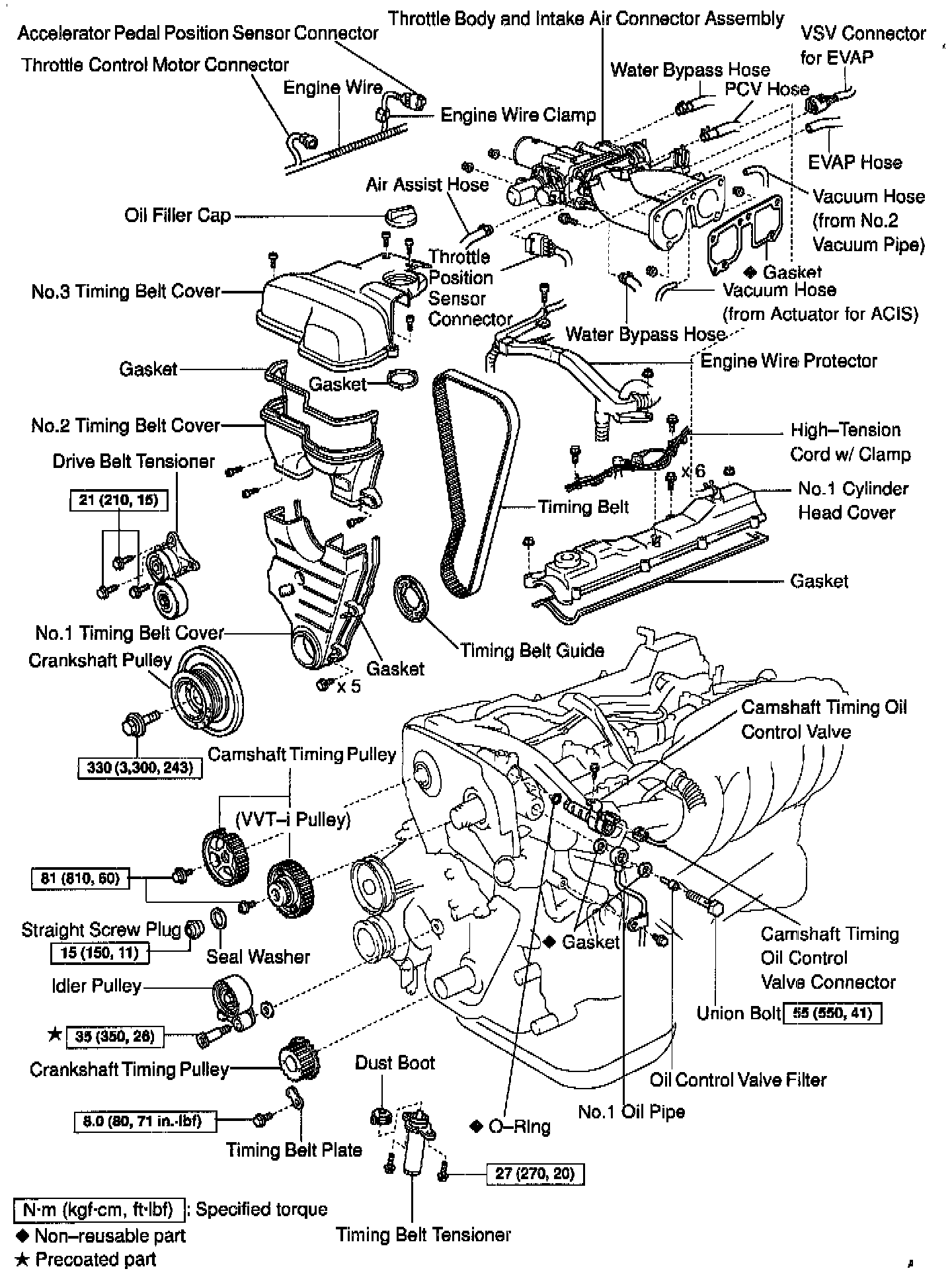

Part 2 of 7

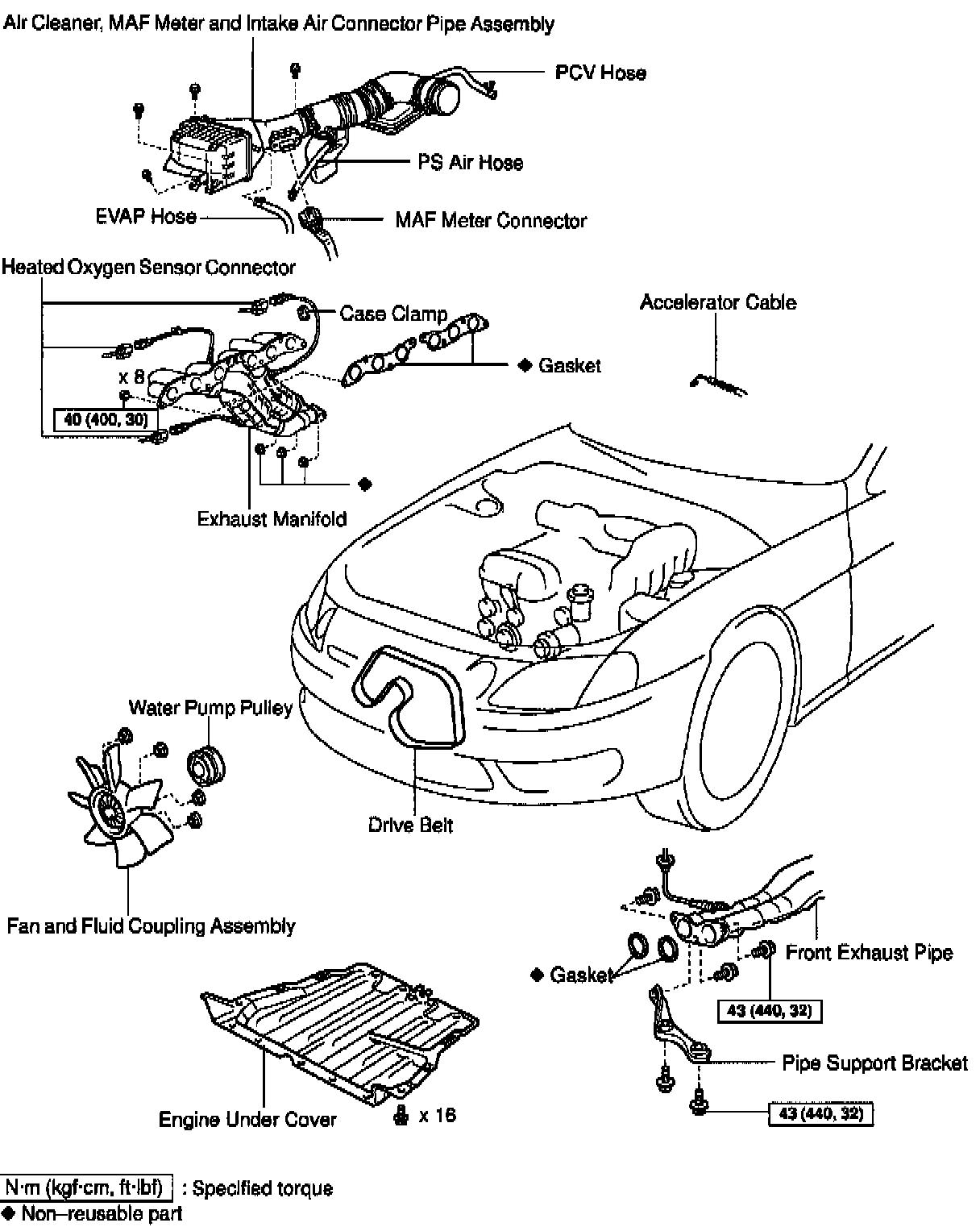

Part 3 of 7

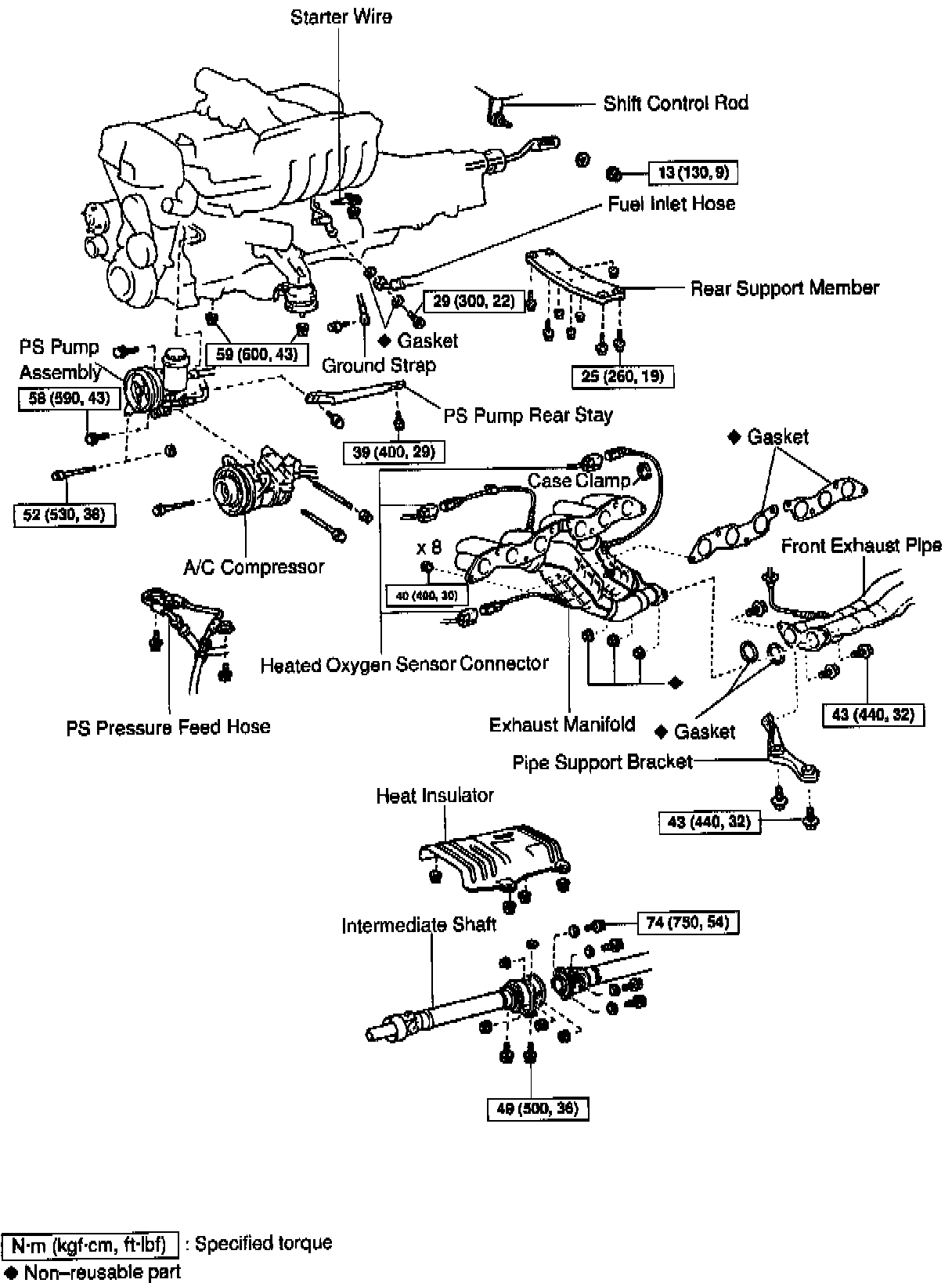

Part 4 of 7

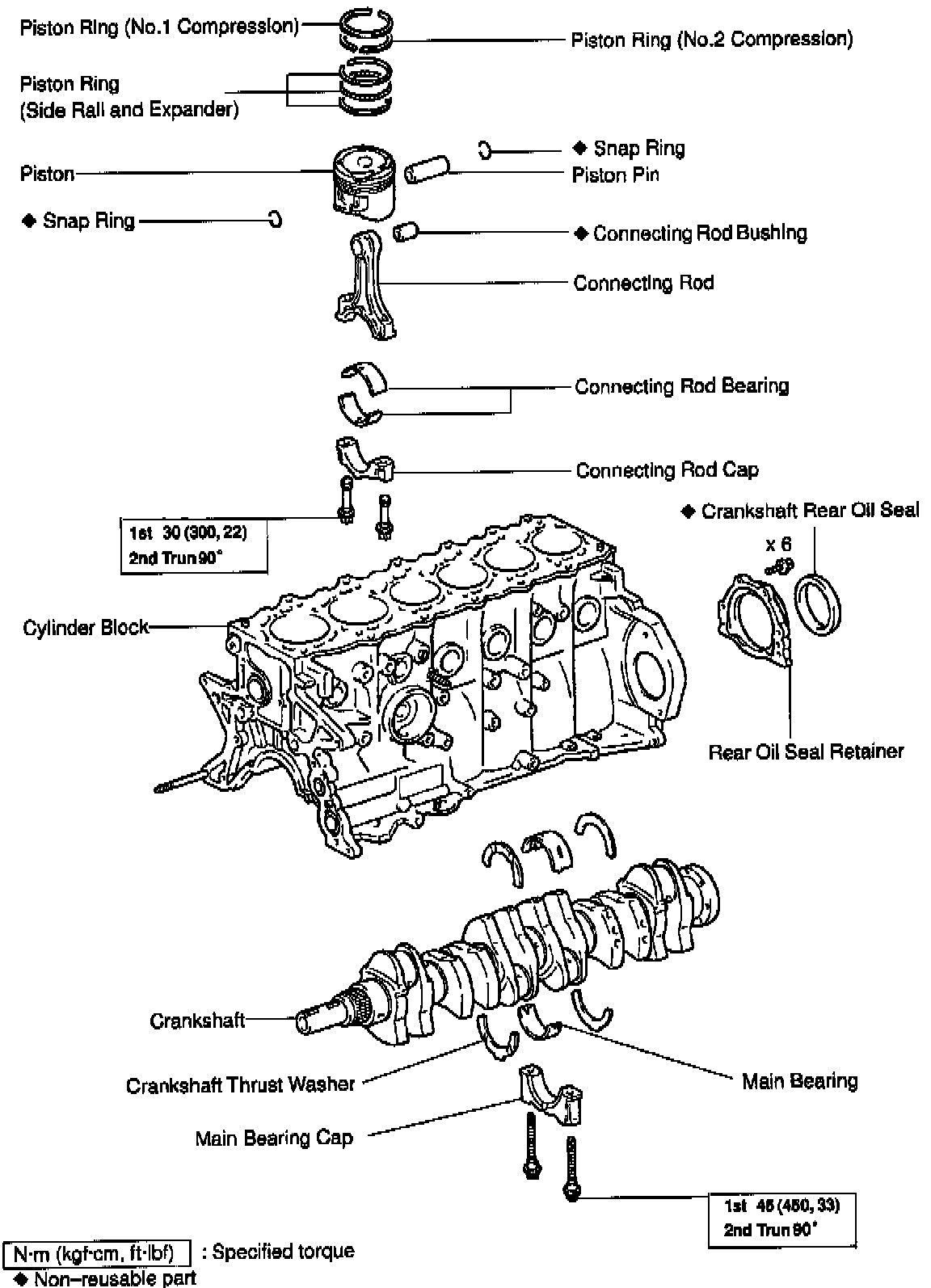

Part 5 of 7

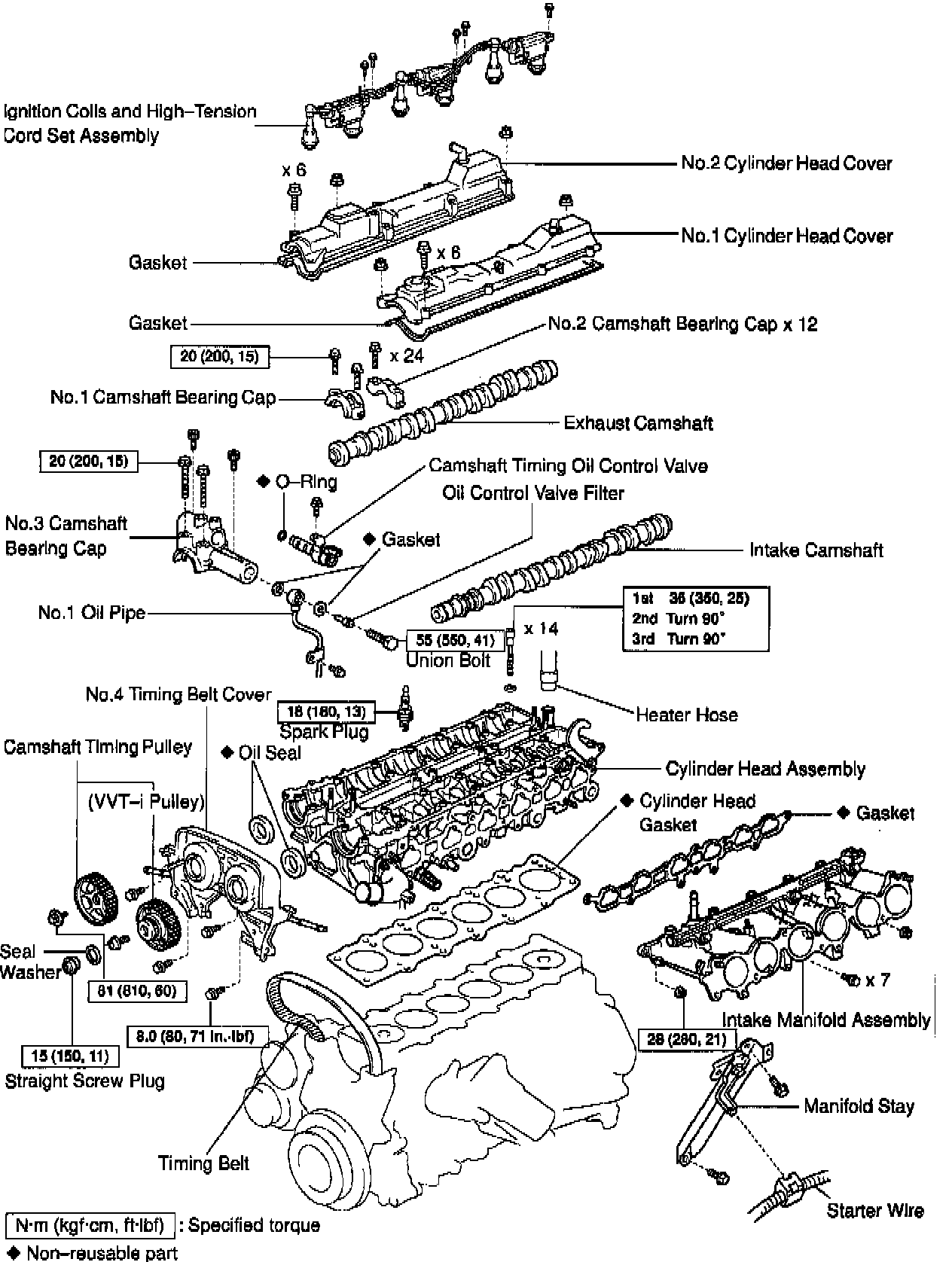

Part 6 of 7

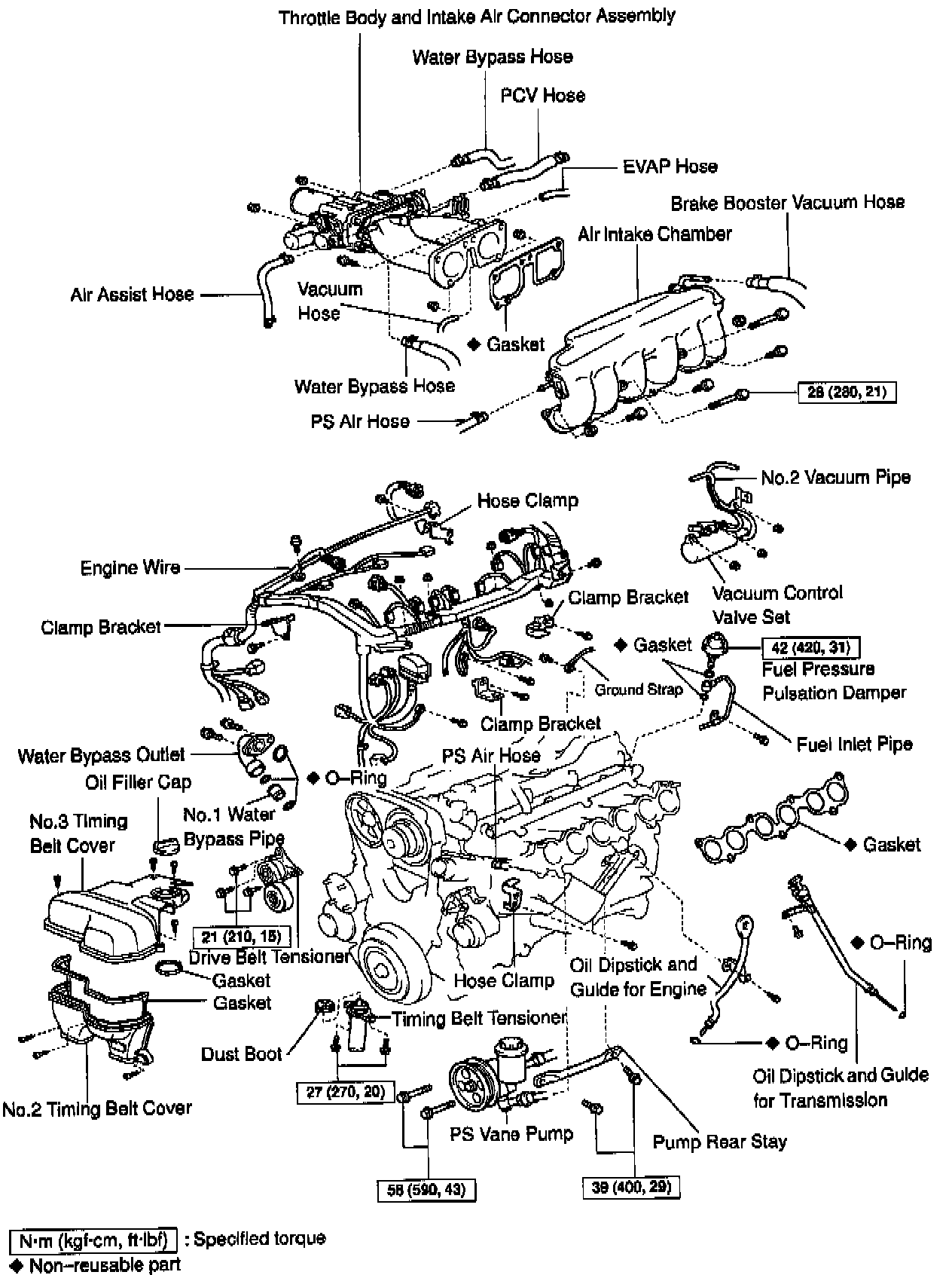

Part 7 of 7
