Home >> Lexus >> 1997 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Technical Data >> Shift and Lock-Up Points

Shift and Lock-Up Points

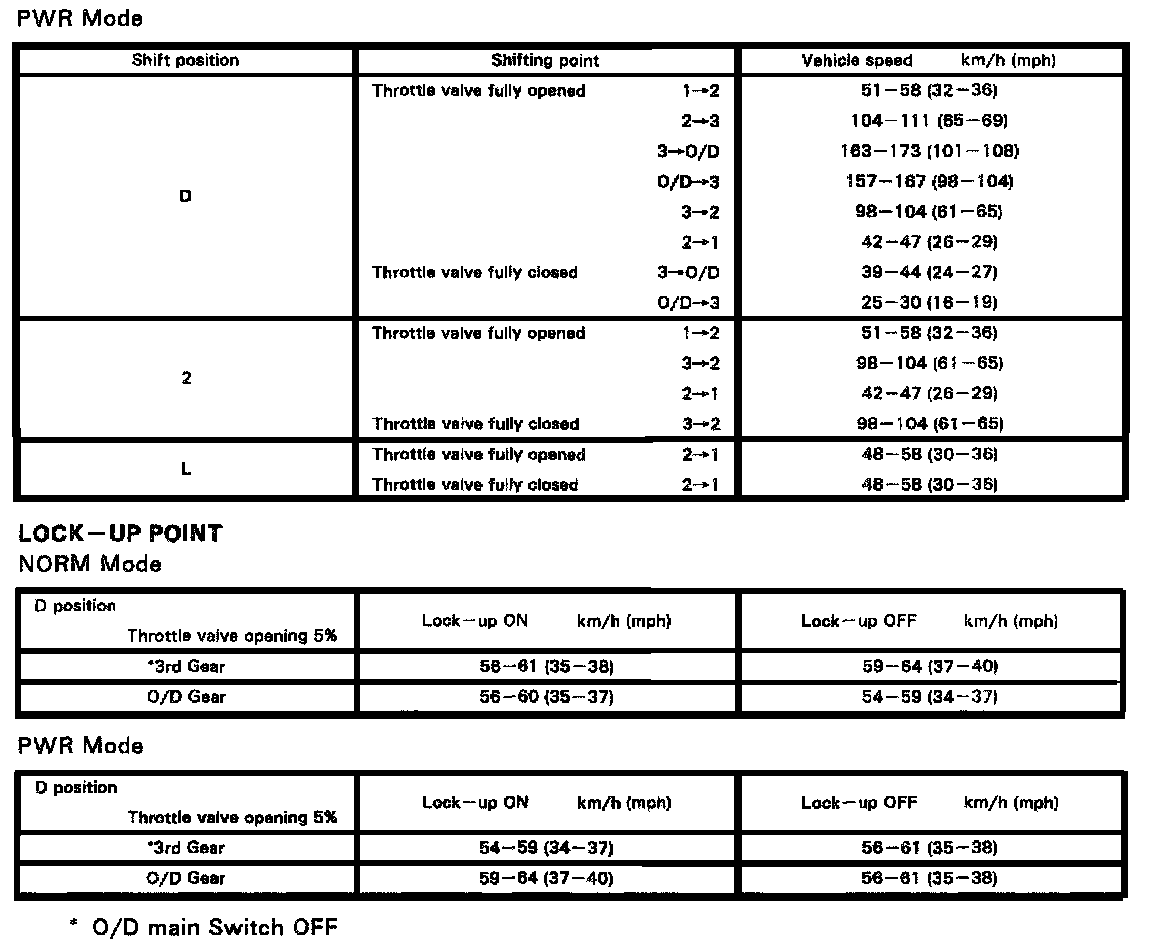

A340E 4-spd A/T, Line Pressure / Shift Schedule:





A340E 4-spd A/T, Shift Schedule / Lock-Up Point:
