EGR Temperature Sensor: Testing and Inspection

COMPONENTS FOR REMOVAL AND INSTALLATION

EGR GAS TEMPERATURE SENSOR INSPECTION
1. REMOVE EGR GAS TEMPERATURE SENSOR





2. INSPECT EGR GAS TEMPERATURE SENSOR

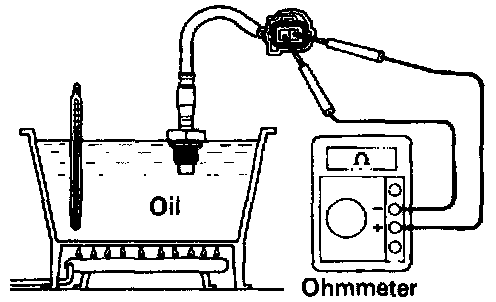

Using an ohmmeter, measure the resistance between the terminals.

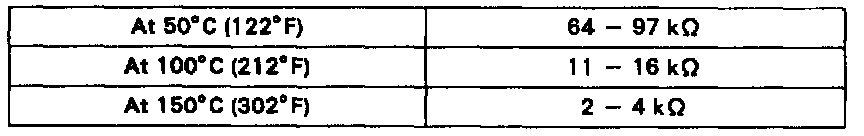

Resistance:

If the resistance is not as specified, replace the sensor.
3. REINSTALL EGR GAS TEMPERATURE SENSOR

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
