Horn Relay: Testing and Inspection

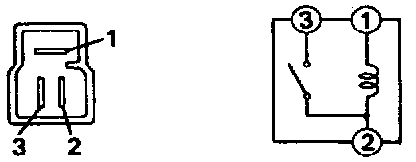

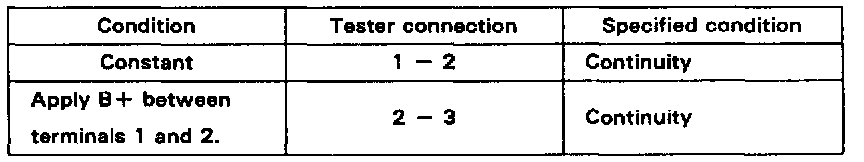

1. INSPECT RELAY CONTINUITY
If continuity is not as specified, replace the relay.





2. INSPECT RELAY CIRCUIT
Remove the relay from the relay block and inspect the connector on relay block side as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.
