Vacuum Reservoir: Service and Repair

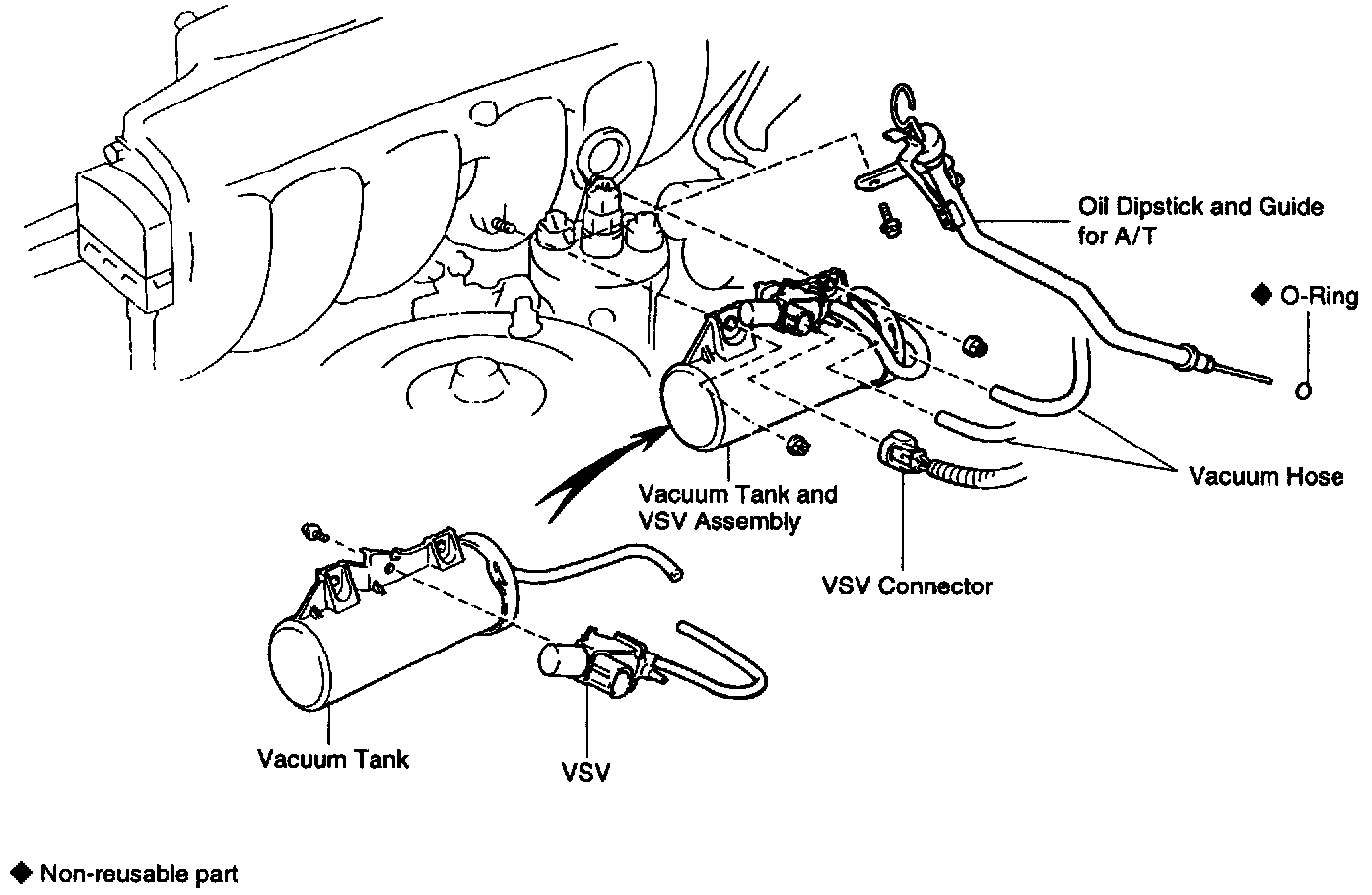

COMPONENTS FOR REMOVAL AND INSTALLATION

VACUUM TANK REMOVAL

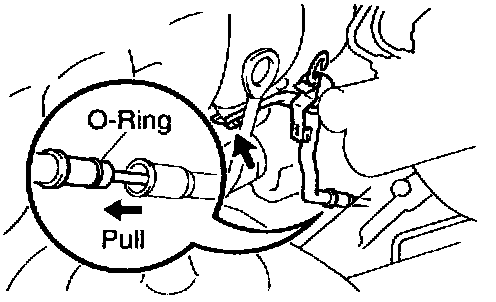

1. A/T:
REMOVE OIL DIPSTICK AND GUIDE FOR A/T
(a) Remove the bolt.
(b) Pull out the dipstick guide together with the dipstick.
(c) Remove the O-ring from the dipstick guide.

INSTALLATION HINT: Use a new O-ring.

2. REMOVE VACUUM TANK AND VSV ASSEMBLY

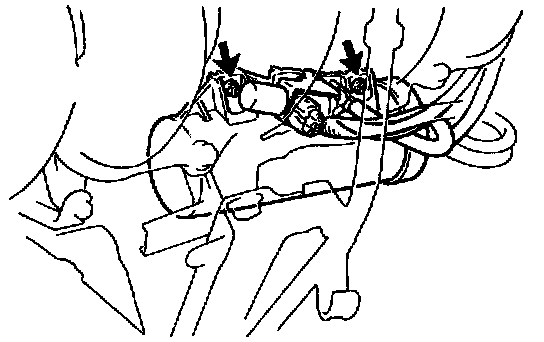

(a) Remove the 2 nuts and disconnect the vacuum tank from the intake manifold.

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)





(b) Disconnect these connector and hoses and remove the vacuum tank and VSV assembly:
(1) VSV connector
(2) Vacuum hose (from air intake chamber) from port B of vacuum tank
(3) Vacuum hose (from actuator) from VSV

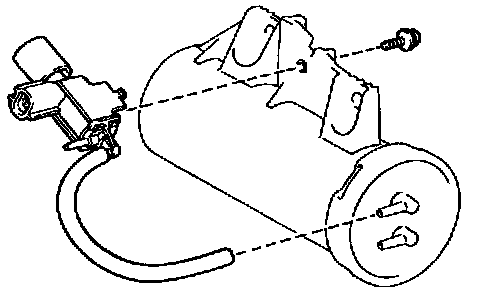

3. REMOVE VSV FROM VACUUM TANK
(a) Disconnect the vacuum hose from port A of the vacuum tank.
(b) Remove the screw and VSV.

VACUUM TANK INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
