Removal and Installation

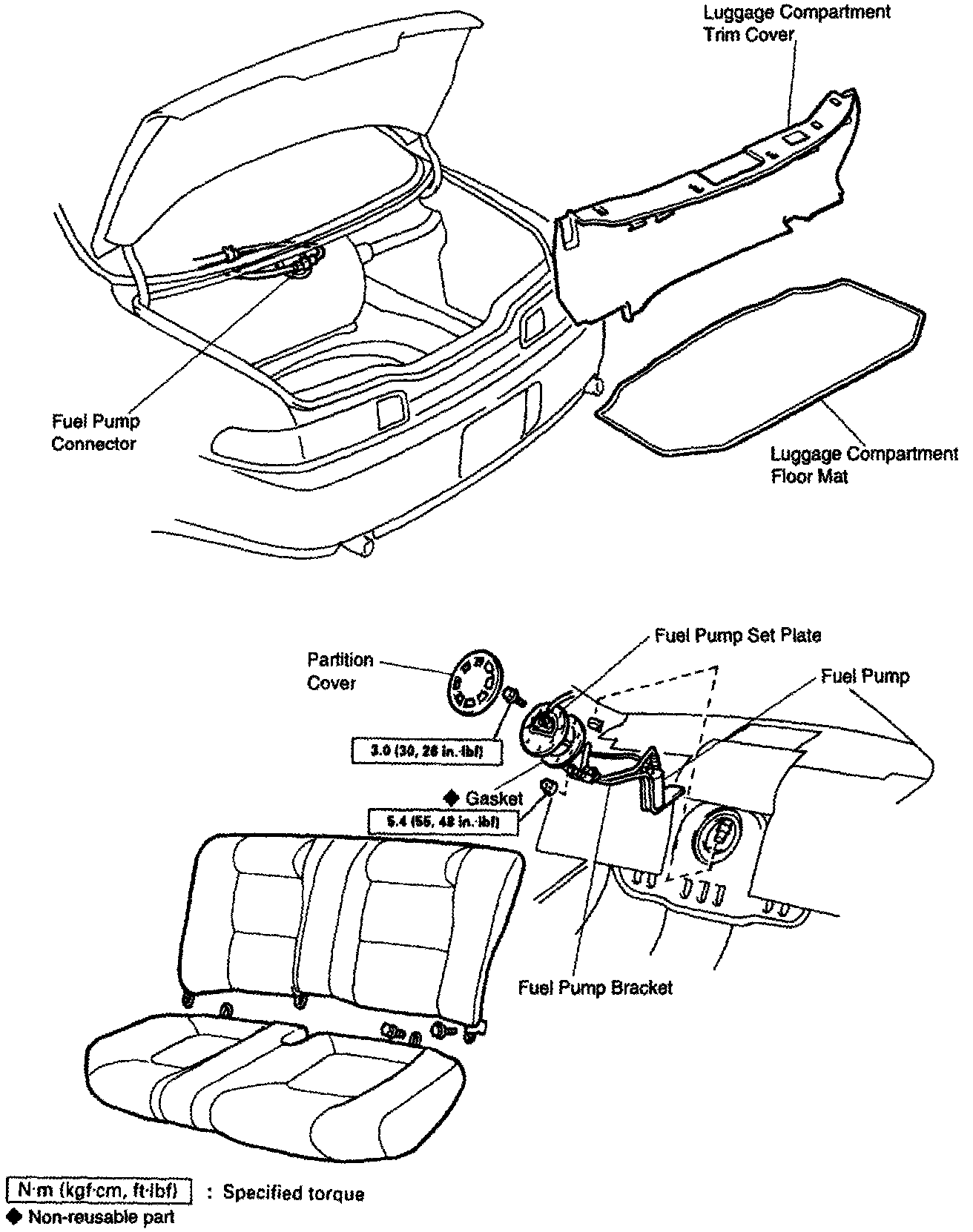

COMPONENTS FOR REMOVAL AND INSTALLATION

FUEL PUMP REMOVAL

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE SPARE TIRE
3. REMOVE LUGGAGE COMPARTMENT TRIM COVER

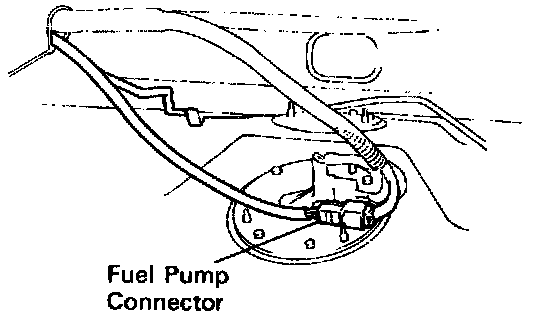

4. DISCONNECT FUEL PUMP CONNECTOR
5. REMOVE SEAT CUSHION AND BACK





6. REMOVE PARTITION COVER

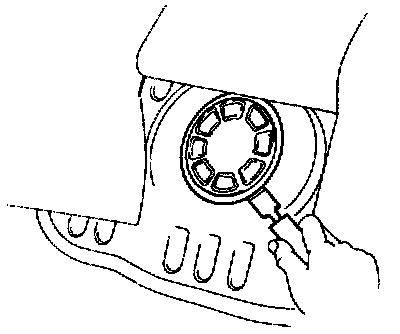

Using a scraper, pry out the partition cover.
7. REMOVE FUEL PUMP

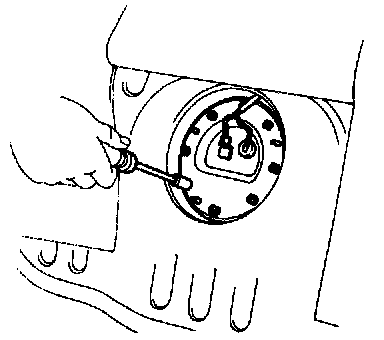

(a) Remove the 8 bolts and disconnect the fuel pump set plate from the fuel tank.

Torque: 3.0 N.m (30 kgf.cm, 26 in.lbf)

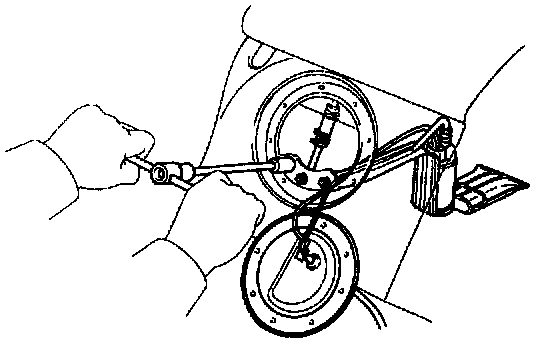

(b) Remove the 3 nuts and disconnect the fuel pump bracket from the fuel tank.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

(c) Disconnect the fuel hose from the fuel pump bracket and remove the fuel pump, bracket and set plate assembly.

INSTALLATION HINT: Use a new gasket.

FUEL PUMP INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
