Disassembly and Reassembly

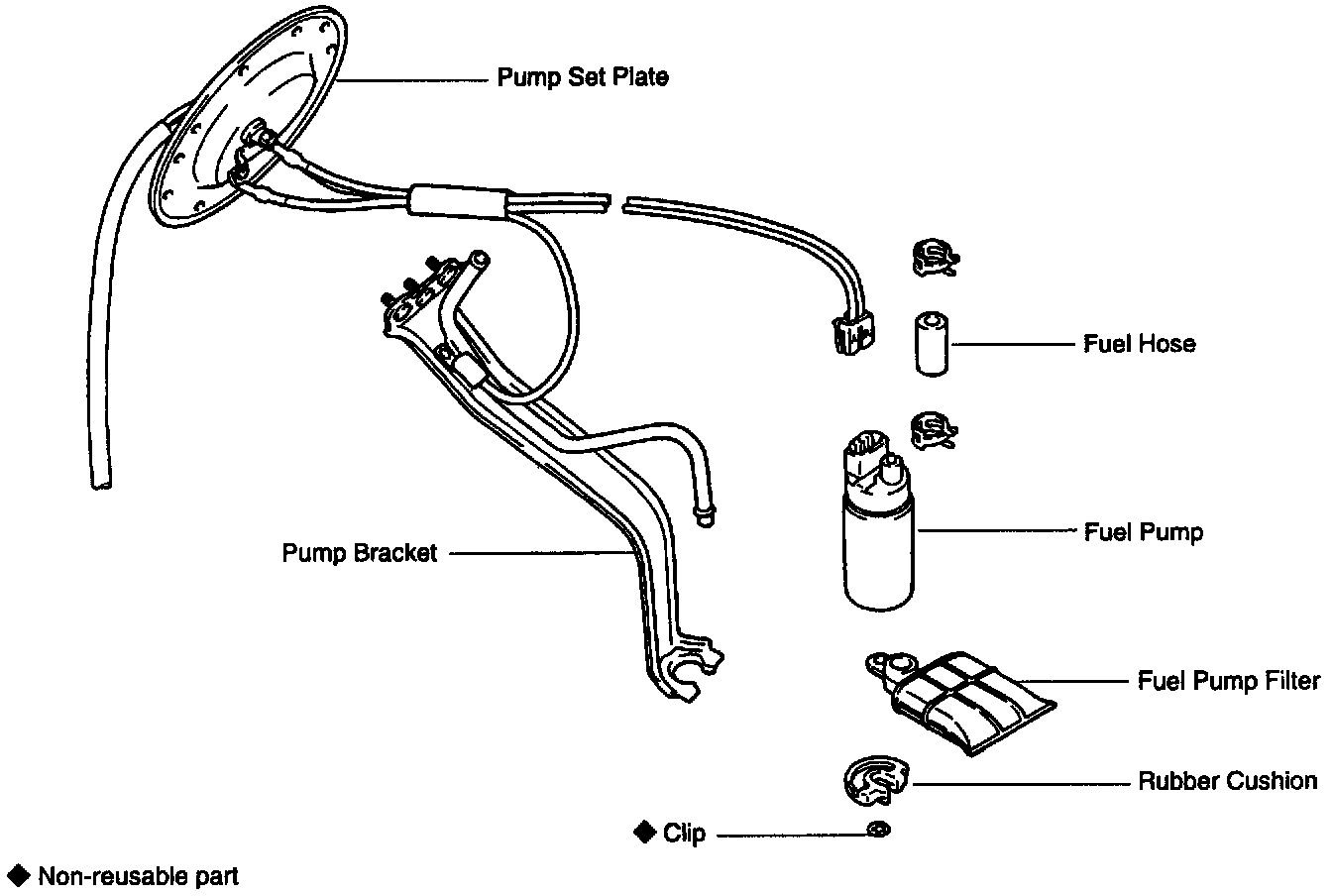

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY

FUEL PUMP DISASSEMBLY

1. REMOVE PUMP SET PLATE FROM FUEL PUMP
Disconnect the lead connector from the fuel pump and remove the set plate.
2. REMOVE FUEL PUMP FROM PUMP BRACKET





(a) Pull out the lower side of the fuel pump from the pump bracket.
(b) Remove the rubber cushion from the fuel pump.
(c) Disconnect the fuel hose from the fuel pump and remove the fuel pump.
3. REMOVE FUEL PUMP FILTER FROM FUEL PUMP

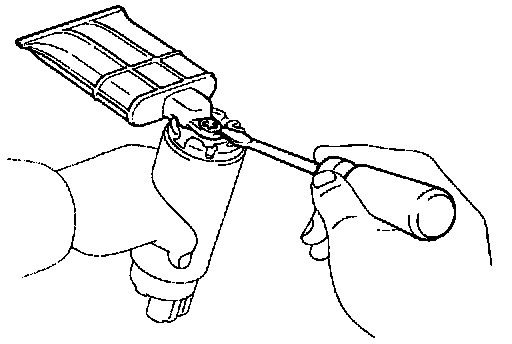

(a) Using a small screwdriver, remove the clip.

ASSEMBLY HINT: Use a new clip.

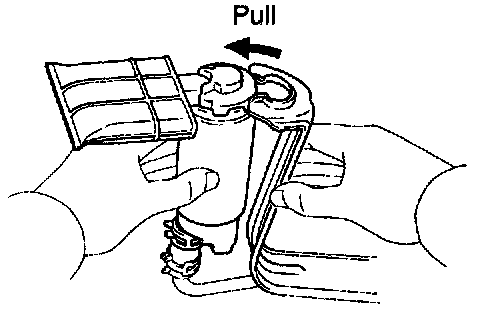

(b) Pull out the pump filter.

FUEL PUMP ASSEMBLY

ASSEMBLY HINT: Assembly is in the reverse order of disassembly.
