IACV Control Circuit

Intake Air Control Valve (IACV) Control Circuit





CIRCUIT DESCRIPTION

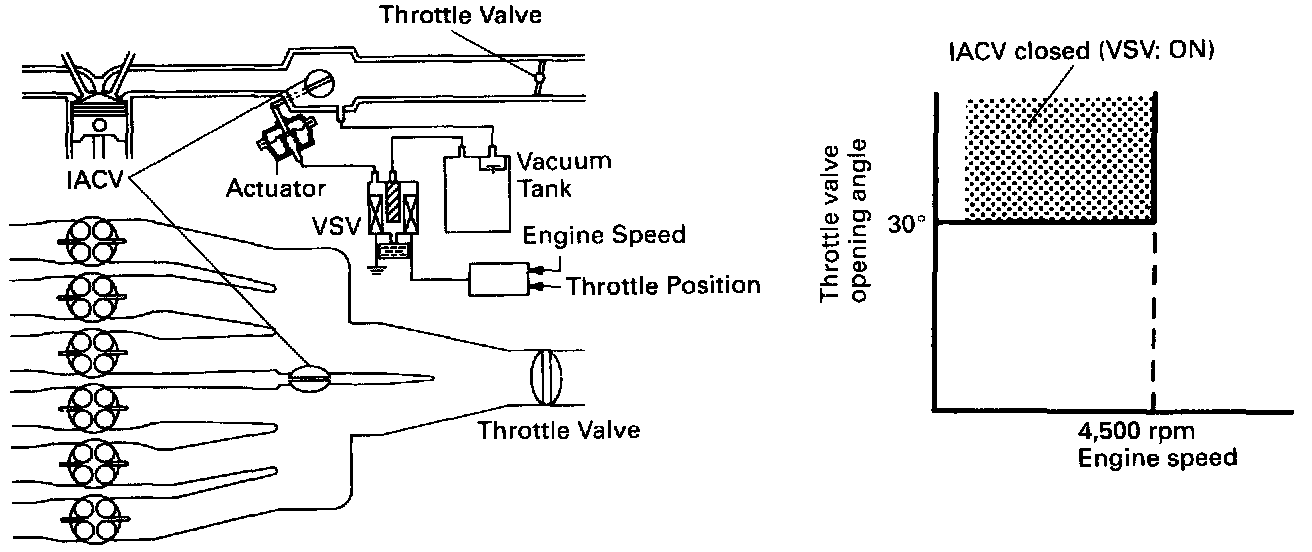

This Circuit opens and closes the IACV (Intake Air Control Valve) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).
When the engine speed is 4,500 rpm or less and the throttle valve opening angle is 300 or more, the ECM turns the VSV ON and closes the IACV. At all other times, the VSV is OFF, so the IACV is open.

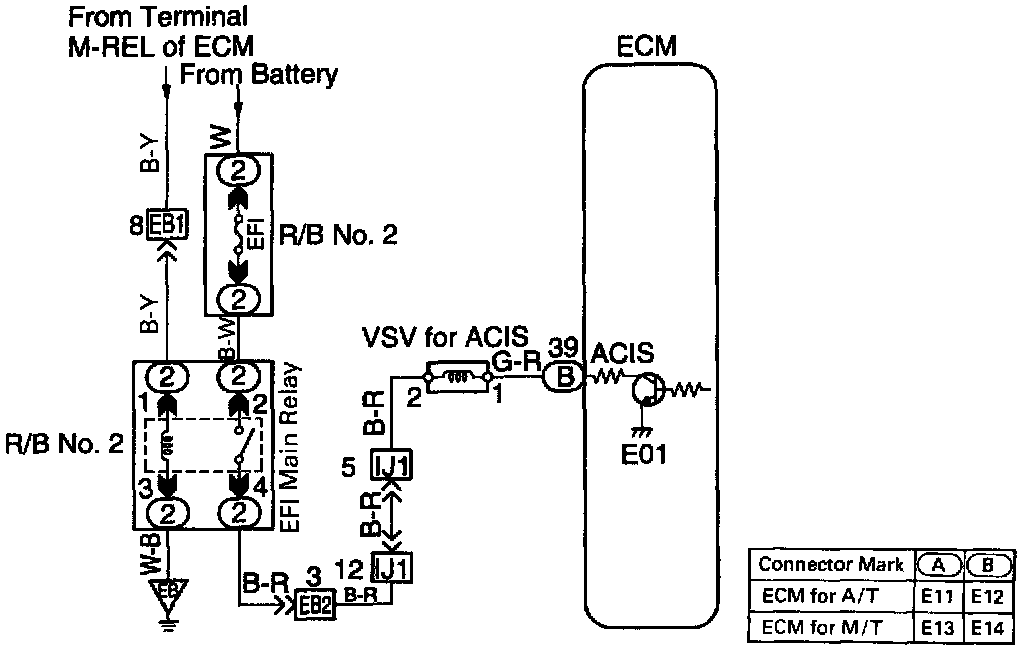

WIRING DIAGRAM

INSPECTION PROCEDURE

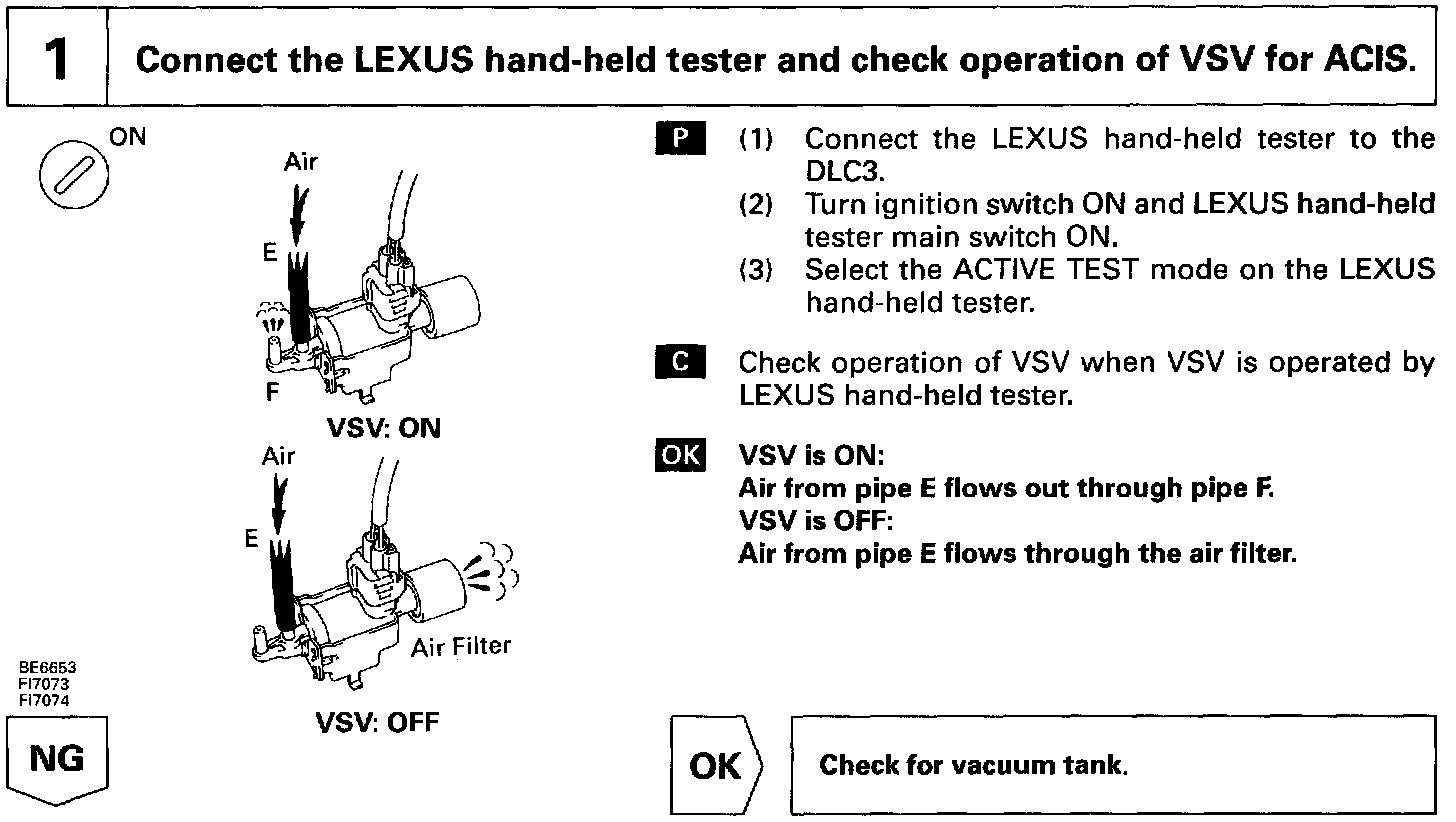

Step 1:

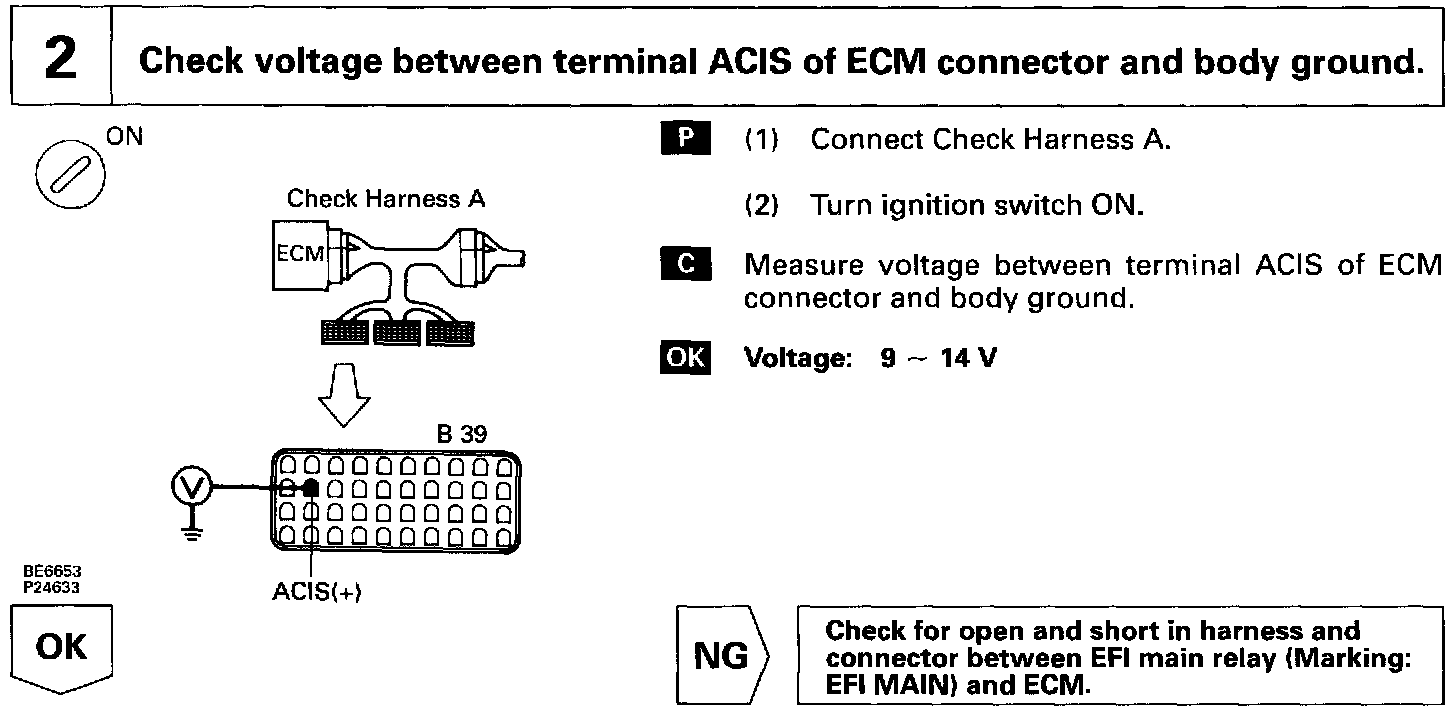

Step 2:

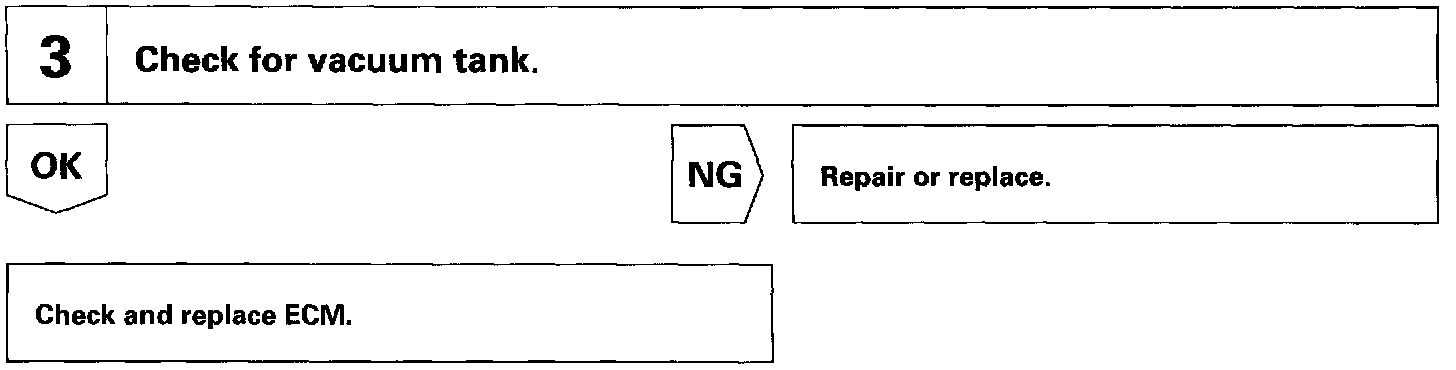

Step 3:

LEXUS hand-held tester

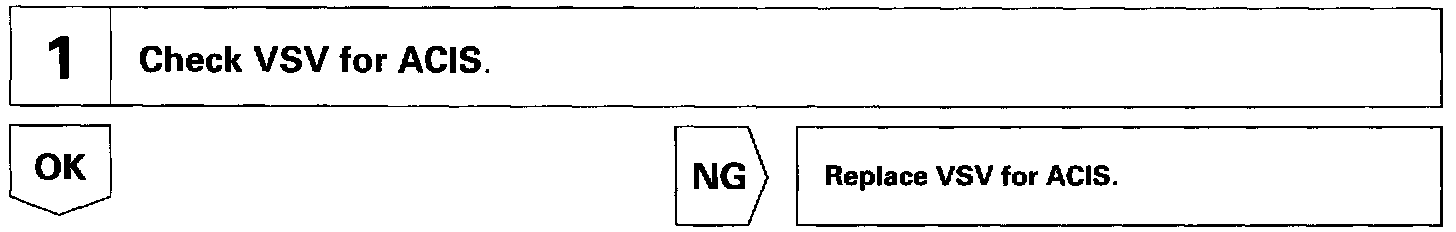

Step 1:

Step 2:

Step 3:

OBD II scan tool (excluding LEXUS hand-held tester)
