ECM Power Source Circuit

ECM Power Source Circuit

CIRCUIT DESCRIPTION
When the ignition switch is turned ON, battery positive voltage is applied to the coil, closing the contacts of the EFI main relay (Marking: EFI MAIN) and supplying power to the terminal +B of the ECM.

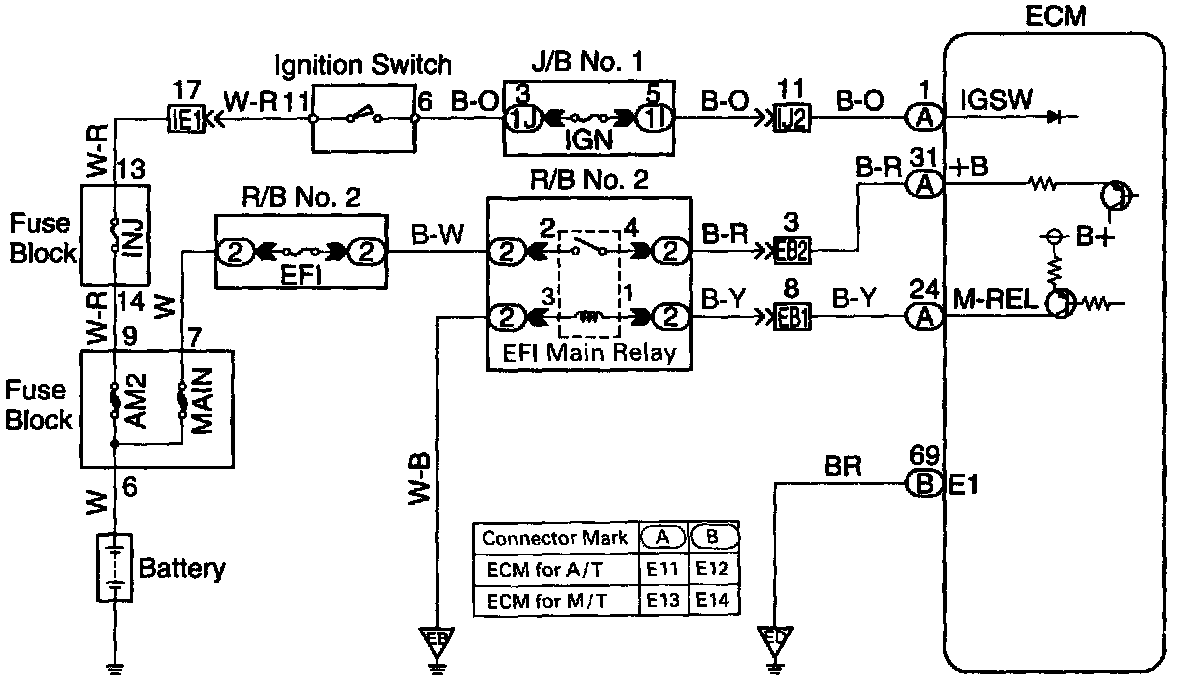

WIRING DIAGRAM

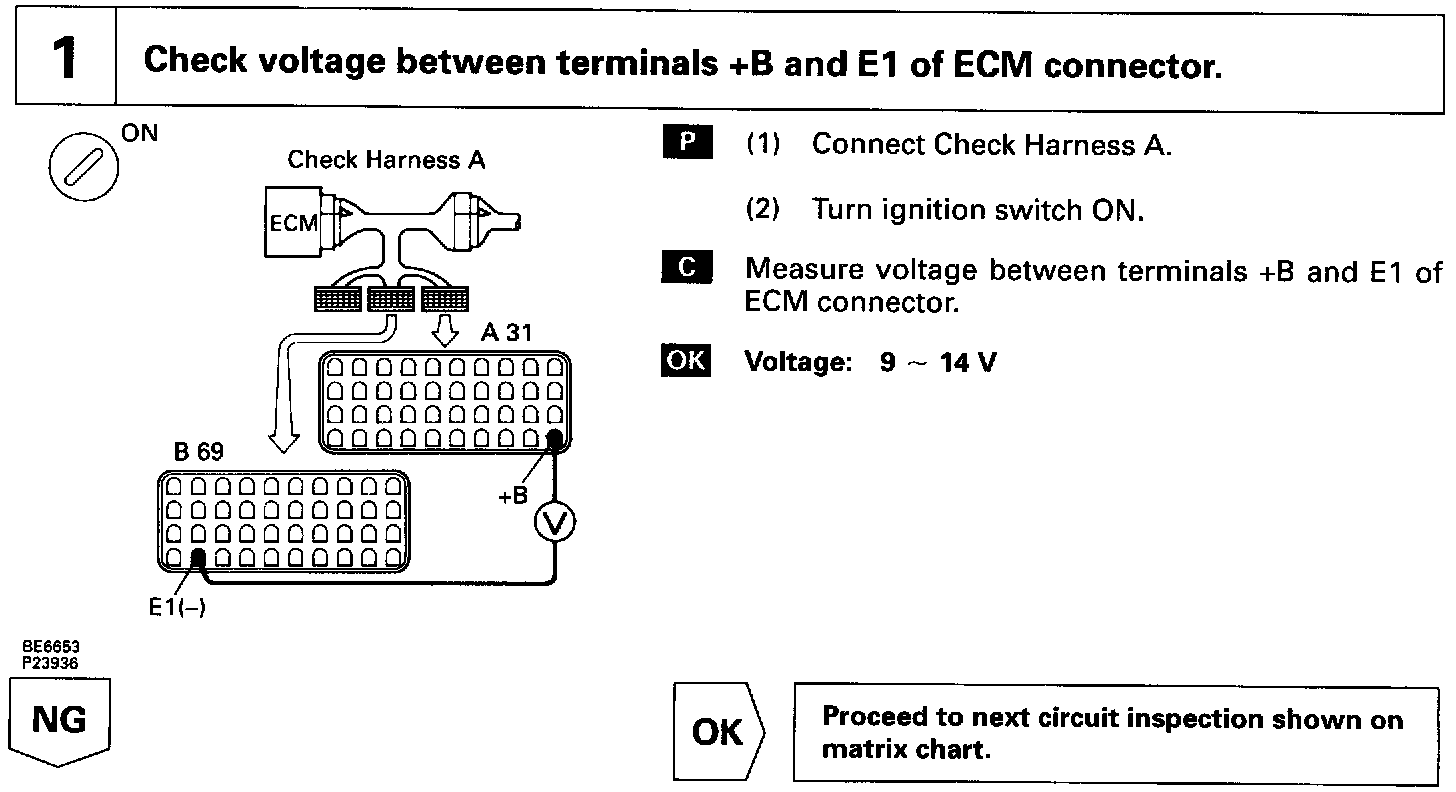

Step 1:

Step 2:

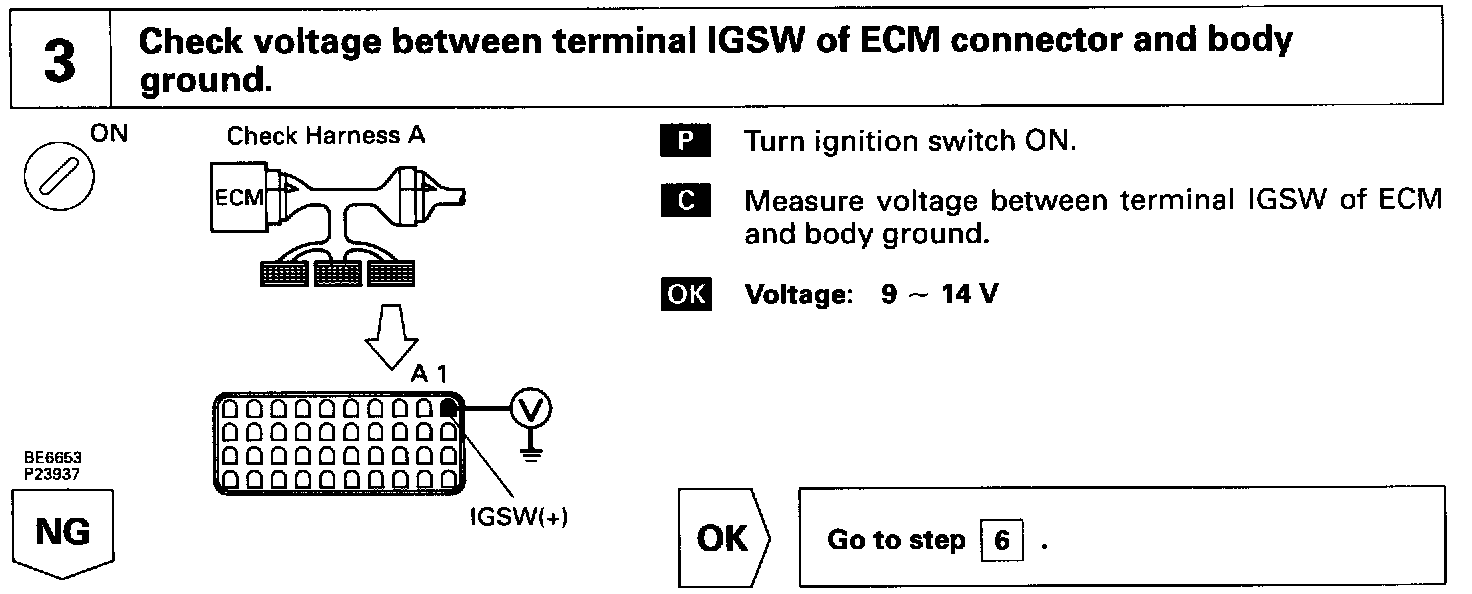

Step 3:

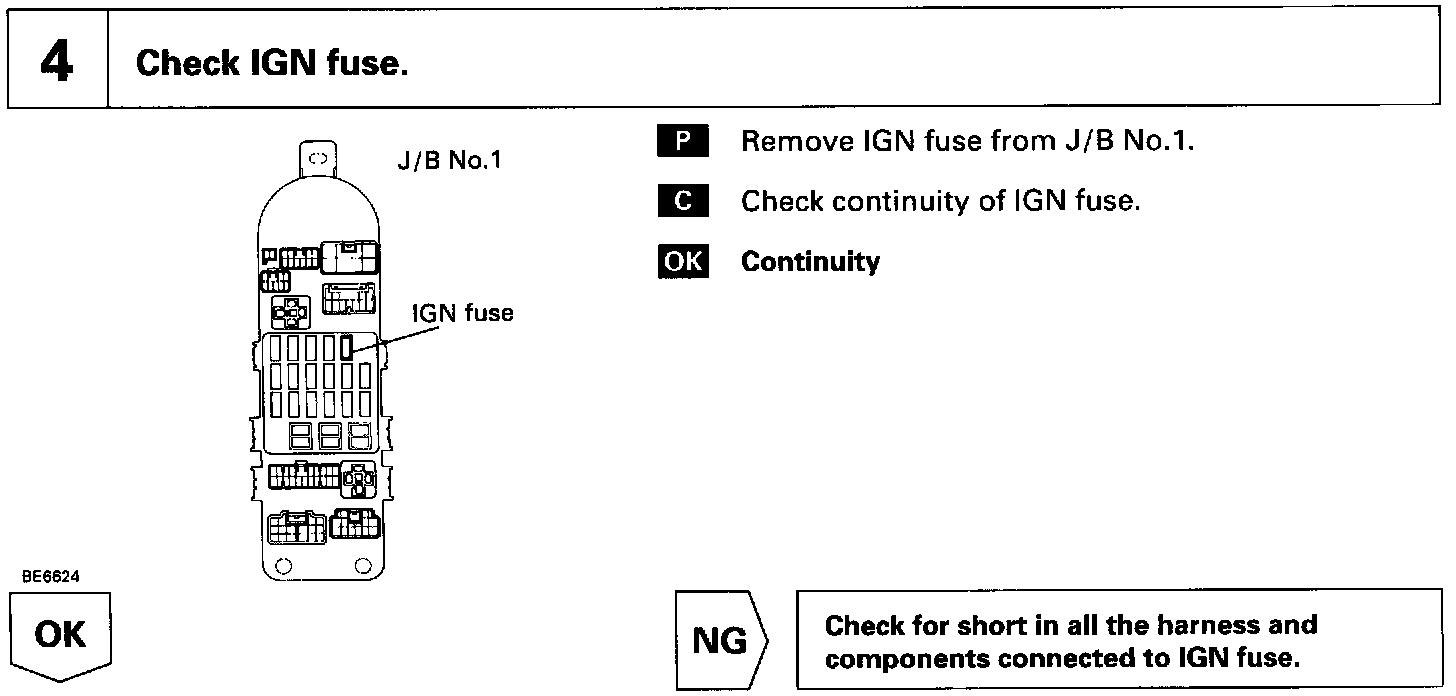

Step 4:

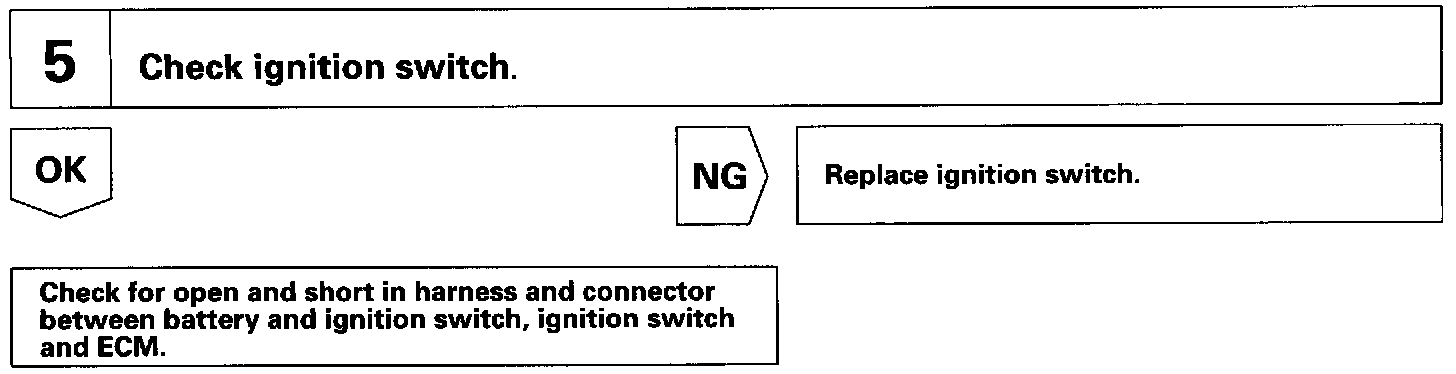

Step 5:

Step 6:

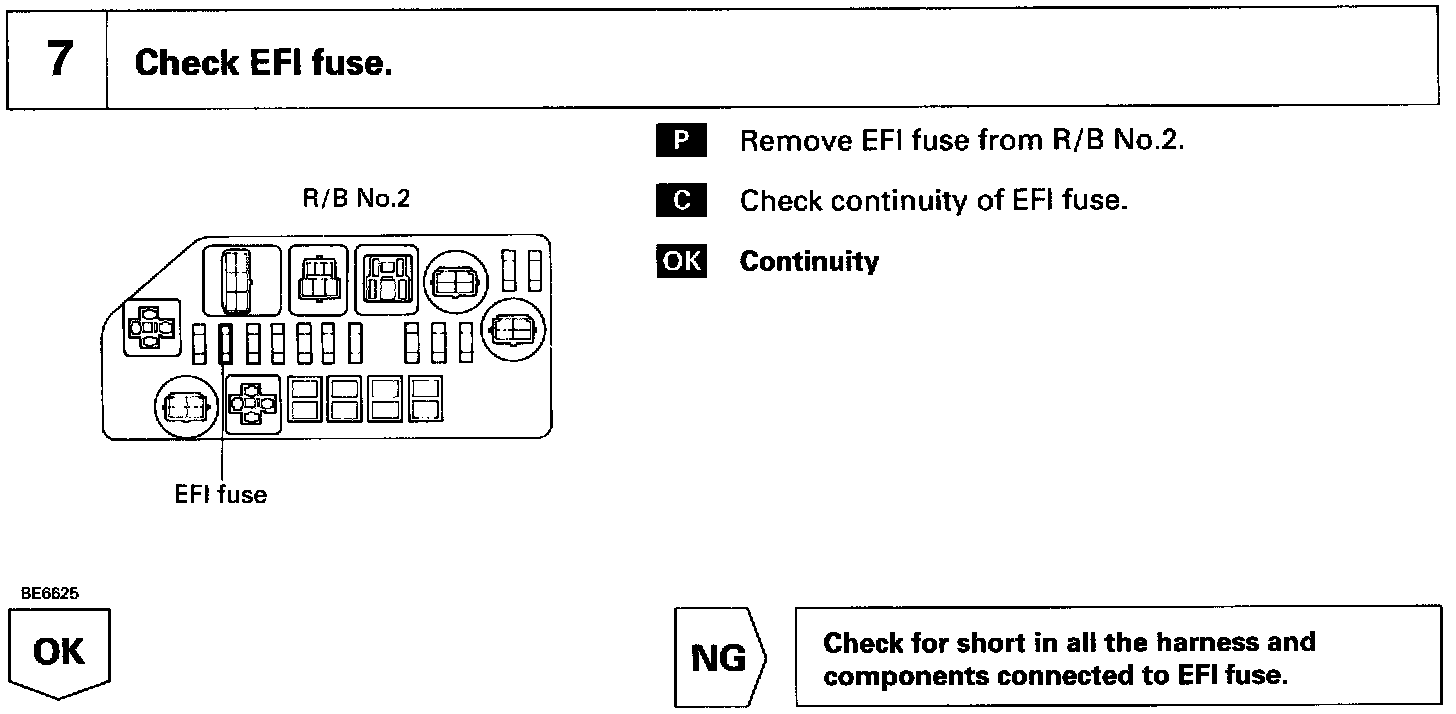

Step 7:

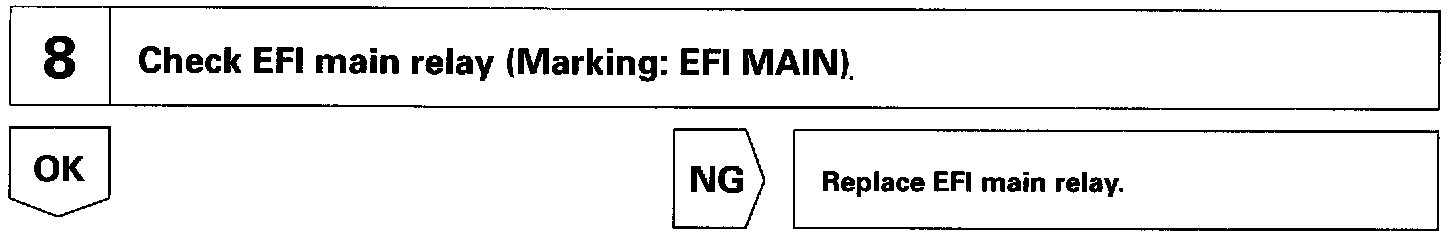

Step 8:

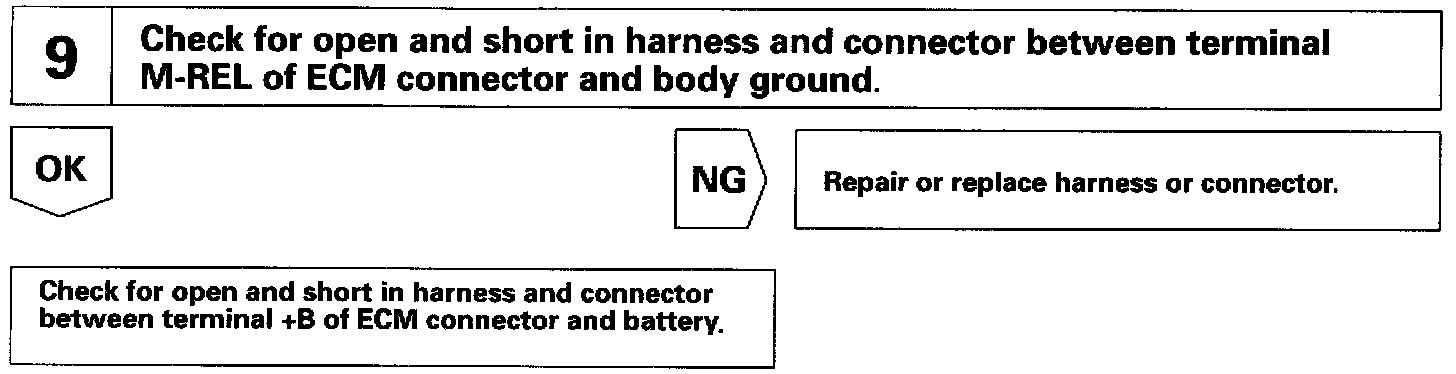

Step 9:

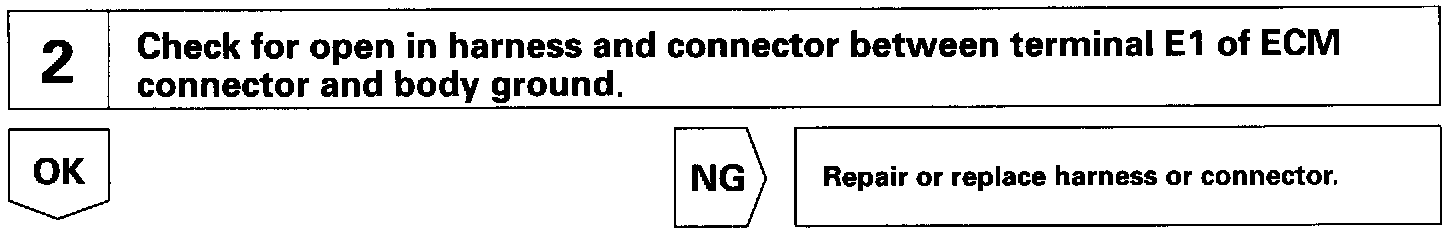

INSPECTION PROCEDURE
