Splice Locations

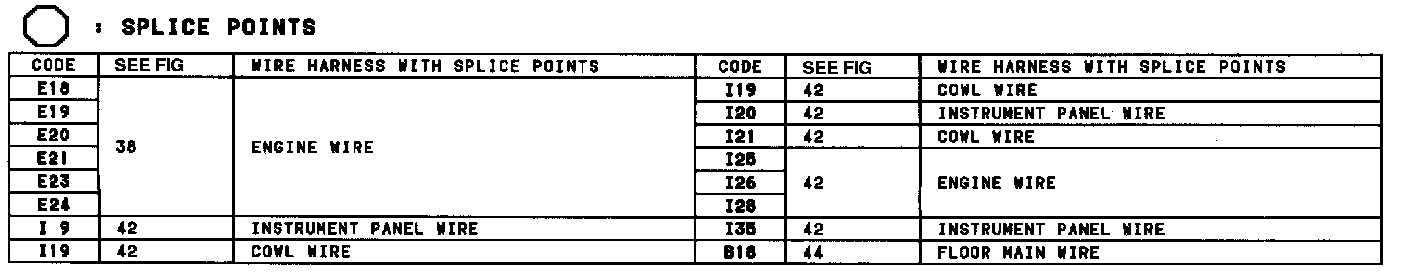

Splice Points:

SPLICE POINTS

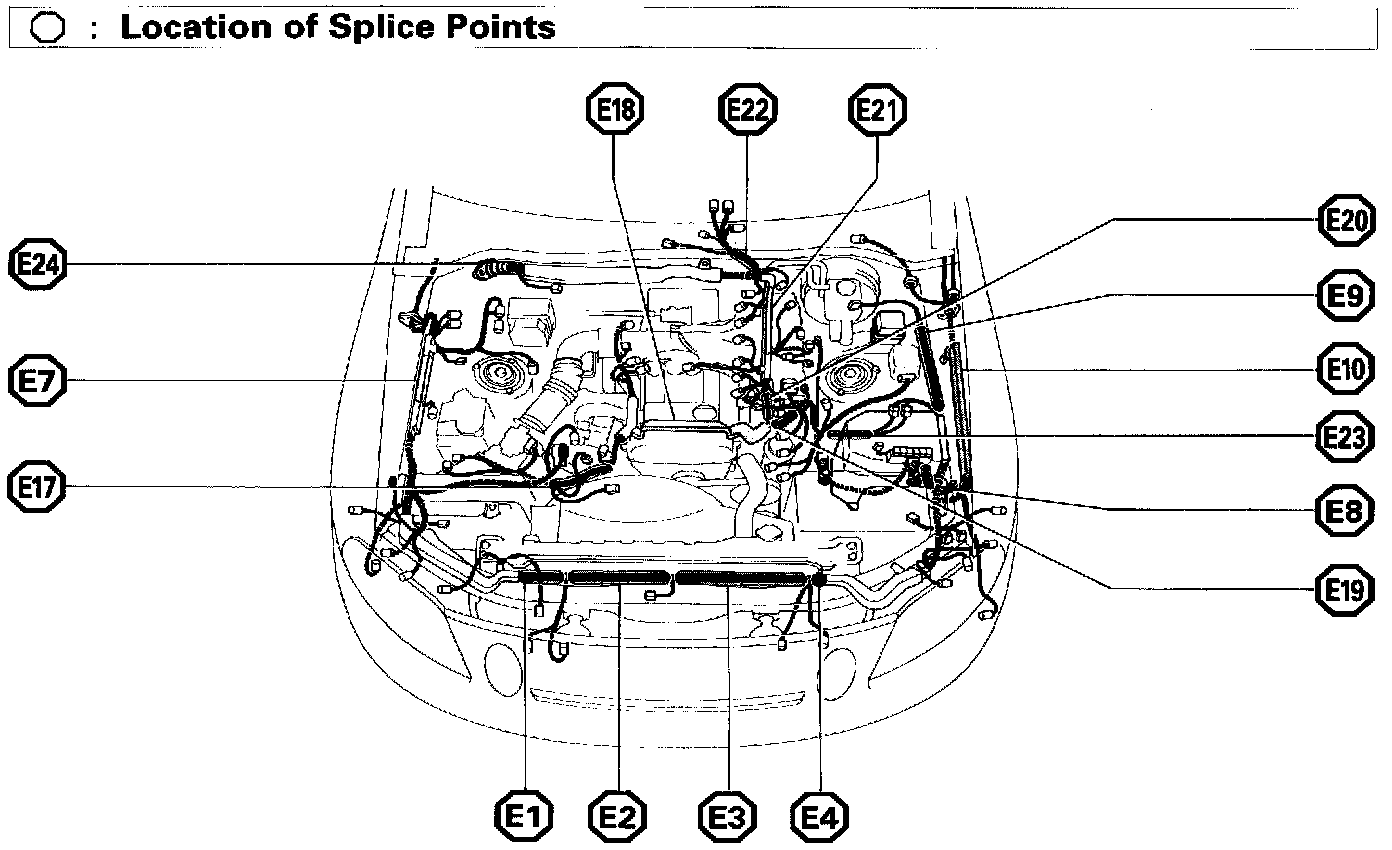

Location Of Splice Points (Fig 38):

FIG 38

Location Of Splice Points (Fig 42):

FIG 42

Location Of Splice Point (Fig 44):

FIG 44
