Relay Block No. 4 and No. 5

RELAY BLOCK NO.4 AND RELAY BLOCK NO.5 INSPECTION





1. INSPECT FUSE CIRCUIT

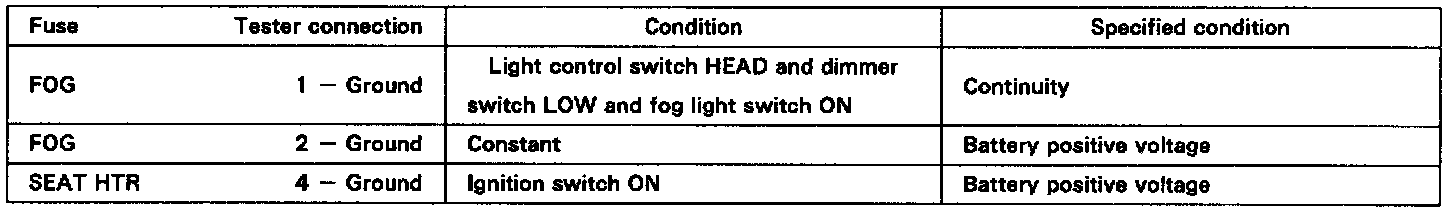

Remove the fuse from the relay block and inspect the connector on relay block side, as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.





2. INSPECT RELAY CIRCUIT
Remove the relay from the relay block and inspect the connector on relay block side, as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.
