Junction Block No. 1

JUNCTION BLOCK NO.1 INSPECTION





1. INSPECT FUSE CIRCUIT

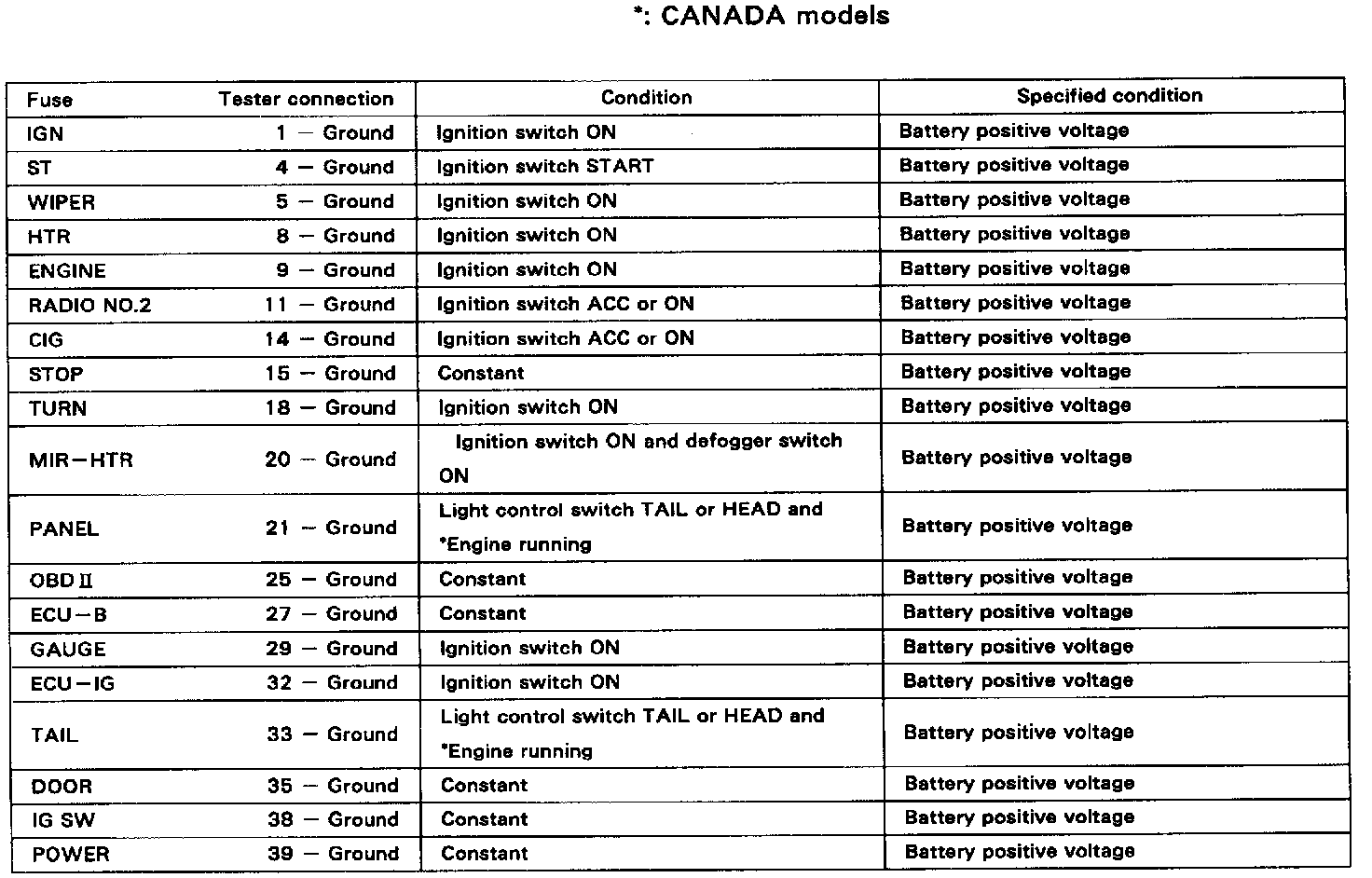

Remove the fuse from the junction block and inspect the connector on junction block side, as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.





2. INSPECT RELAY CIRCUIT
Remove the relay from the junction block and inspect the connector on junction block side, as shown.
