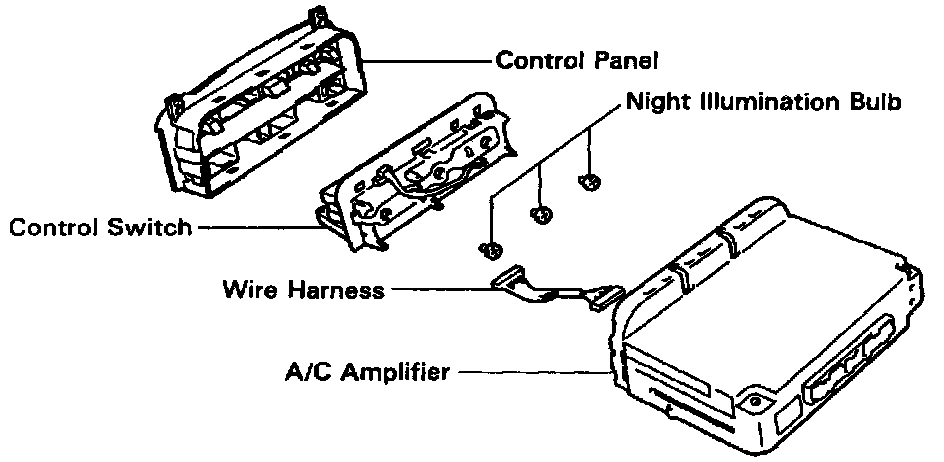

A/C CONTROL ASSEMBLY DISASSEMBLY

1. SEPARATE CONTROL PANEL FROM CASE

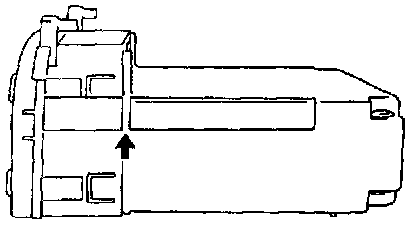

(a) Cut up cloth tapes affixed on both sides of the case, as shown in the illustration.

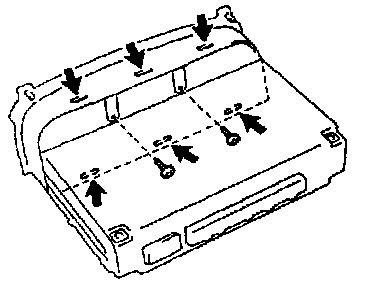

(b) Remove the 2 screws and release the 6 claws to separate the control panel from the case.

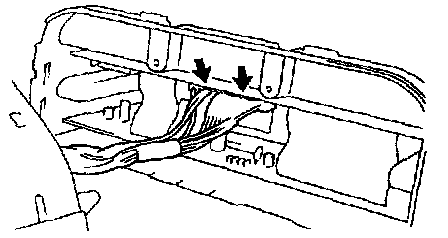

(c) Disconnect the 2 connectors and separate the control panel from the case.
(d) Remove the wire harness from control panel.





2. REMOVE NIGHT ILLUMINATION BULB

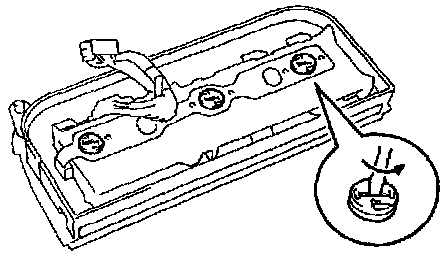

Using a flat-bladed screwdriver, remove the night illumination bulbs.





3. REMOVE CONTROL SWITCH

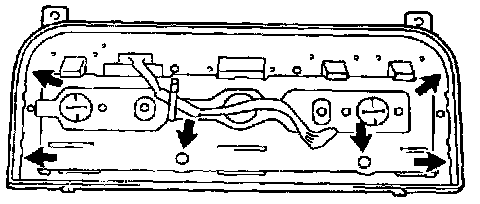

Release the 2 crews and the 4 clips as shown on the illustration, then remove the control switch.

A/C CONTROL ASSEMBLY

ASSEMBLY
Assembly is in the reverse order of disassembly.
