Hub Bolt Replacement

REPLACEMENT
1. Remove front wheel.
2. Remove front brake caliper and disc.

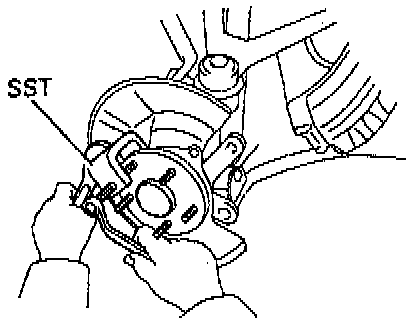

3. Using Special Service Tool (SST) 09628 - 10011 or equivalent, remove the hub bolt.

Front Wheel Hub Bolt Replacement:

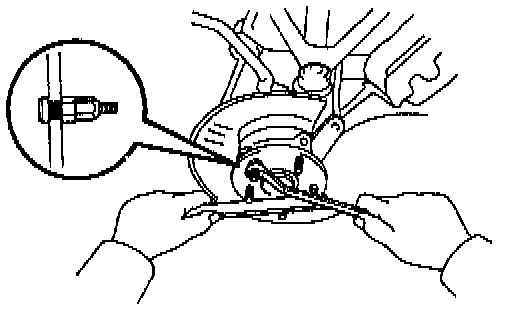

4. Install hub bolt. Install a washer and nut to the bolt, as shown in the illustration, and install a new hub bolt by torquing the nut.
5. Install front disc and brake caliper
6. Install the front wheel.
Torque: 103 Nm (76 ft. lbs.).
