Wire Harness to Wire Harness

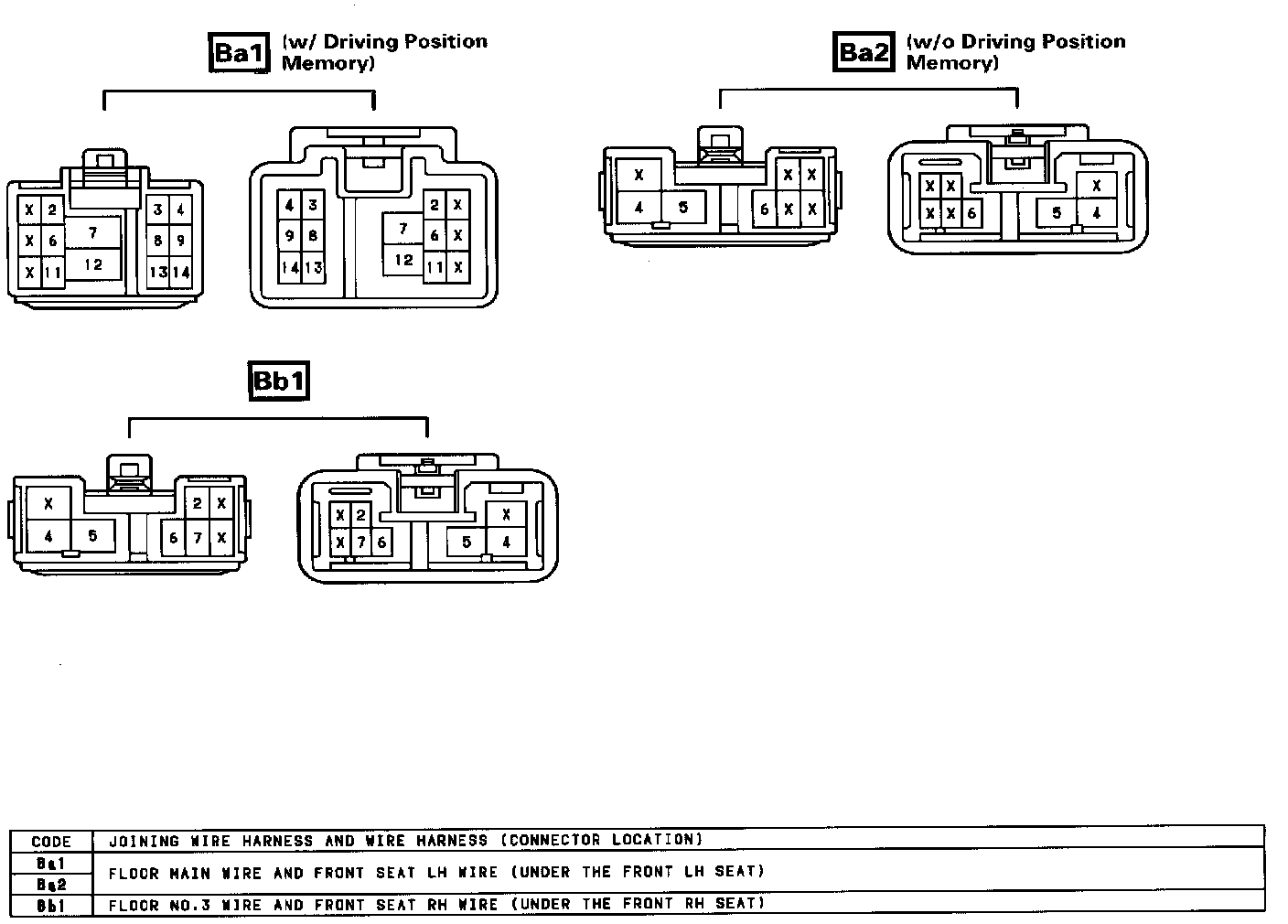

Connector Joining Wire Harness And Wire Harness-Connectors:

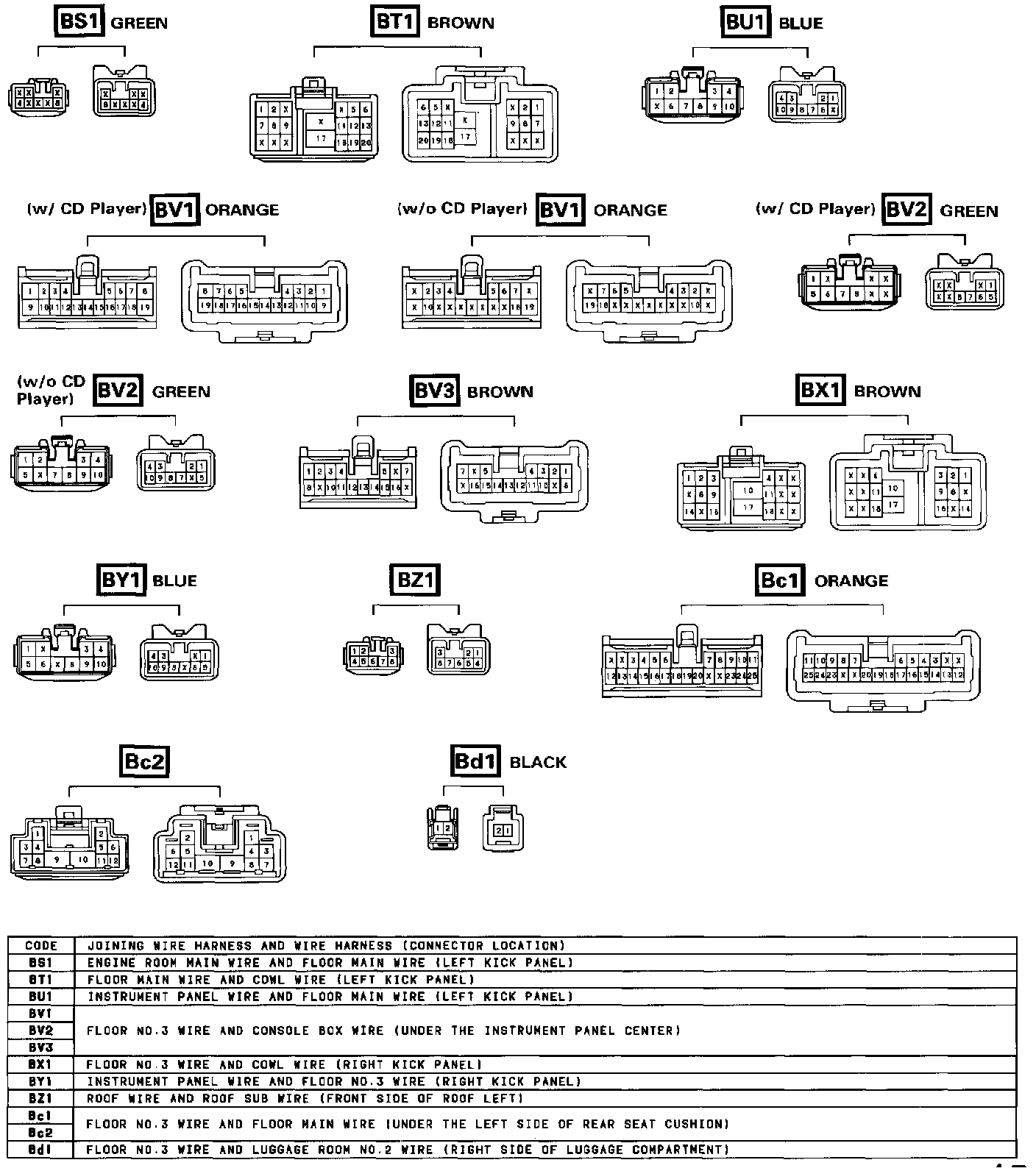

Connector Joining Wire Harness And Wire Harness-Connectors:

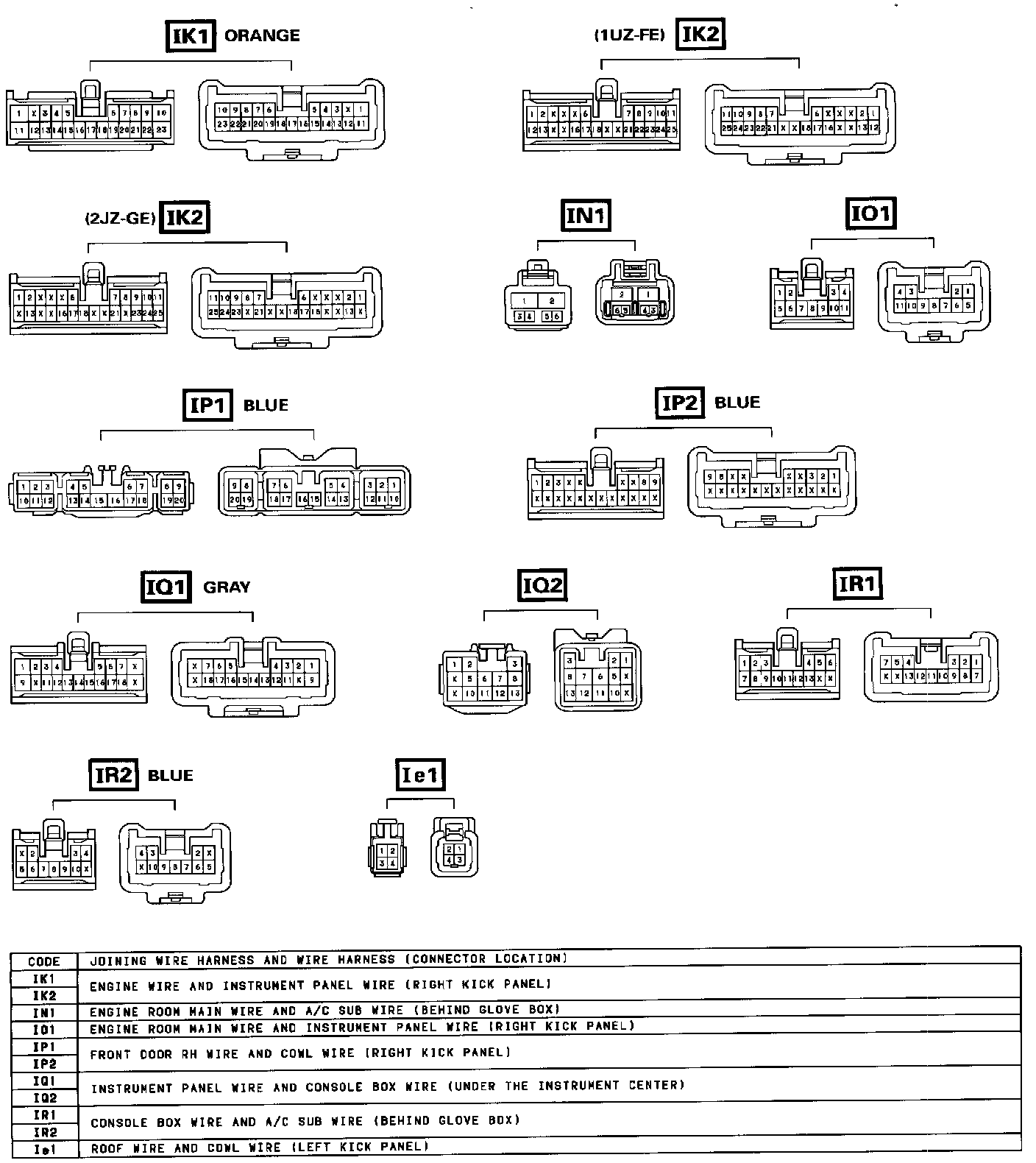

Connector Joining Wire Harness And Wire Harness-Connectors:

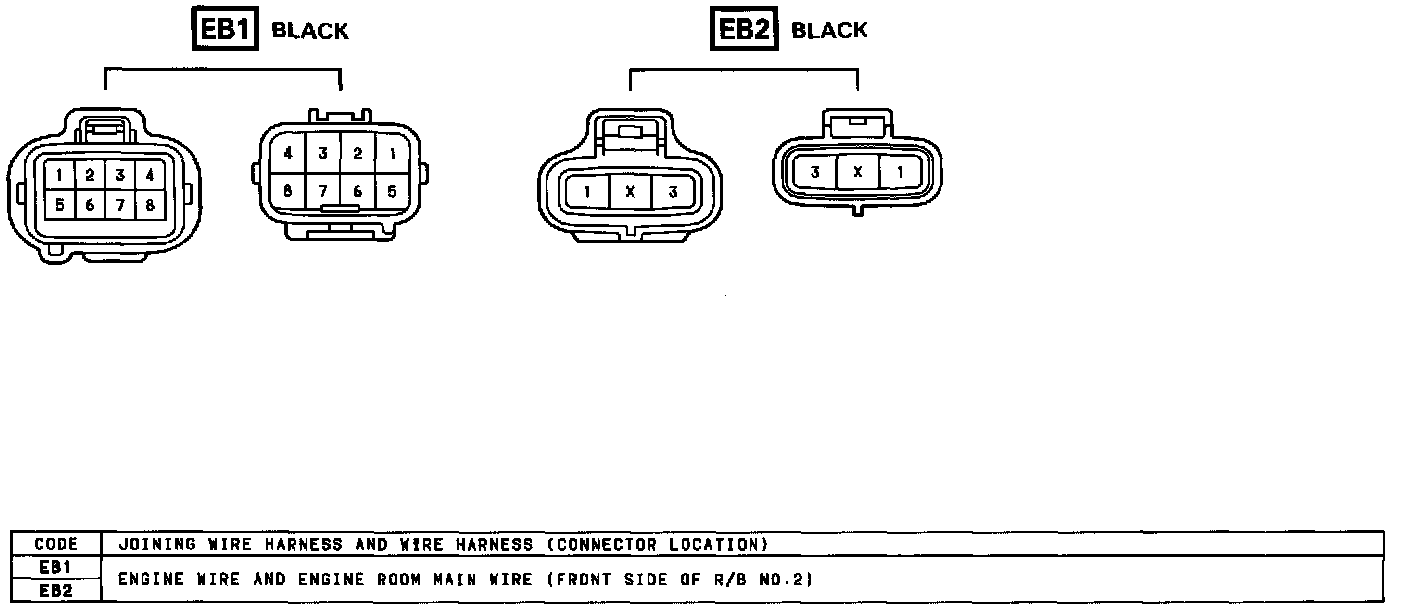

Connector Joining Wire Harness And Wire Harness-Connectors:




Connector Joining Wire Harness And Wire Harness-Connectors:
