Vanity Lamp: Testing and Inspection

FRONT PERSONAL LIGHT INSPECTION

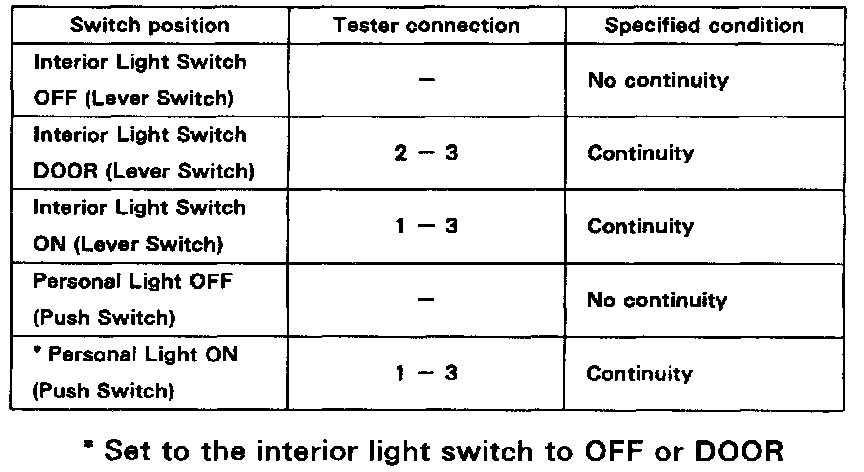

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the light assembly or bulb.

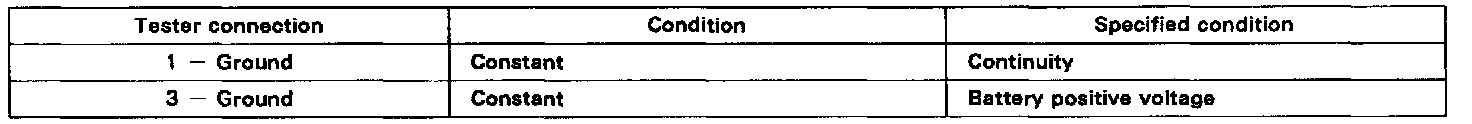

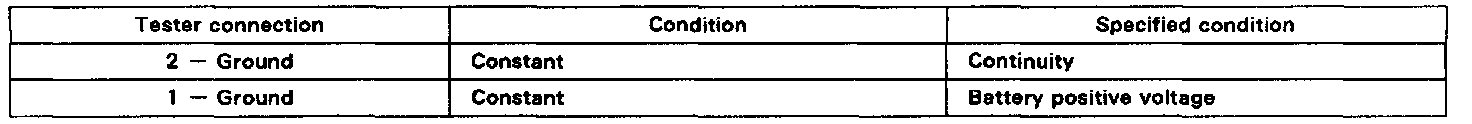

2. INSPECT SWITCH CIRCUIT

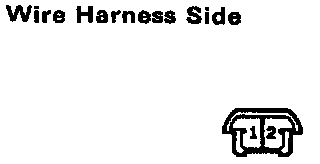

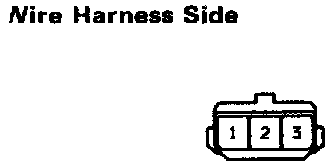

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the power source or wire harness.

VANITY LIGHT INSPECTION

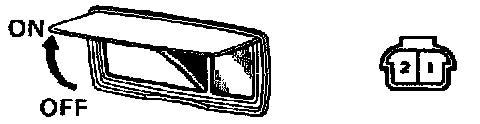

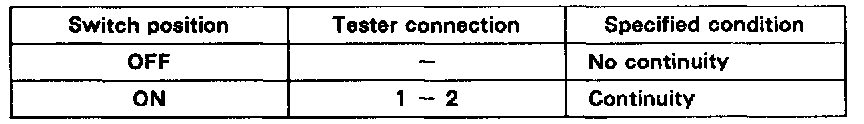

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the bulb or vanity light.
