Trunk Lamp Switch: Testing and Inspection

LUGGAGE COMPARTMENT DOOR COURTESY SWITCH INSPECTION

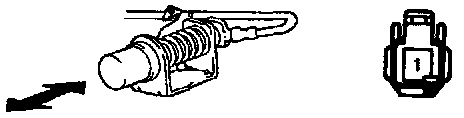

1. INSPECT SWITCH CONTINUITY
If operation is not as specified, replace the switch.

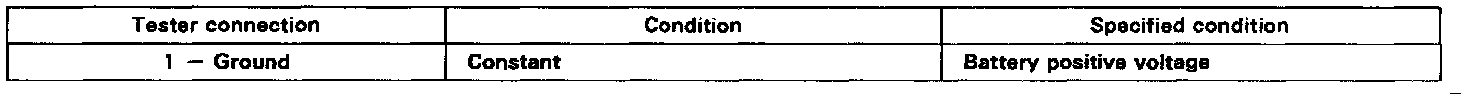

2. INSPECT SWITCH CIRCUIT

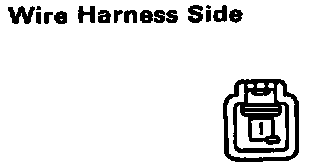

Disconnect the connector from the switch and inspect the connector on the wire harness, as shown.
If circuit is not as specified, inspect the power source or wire harness.
