Tail Lamp: Testing and Inspection

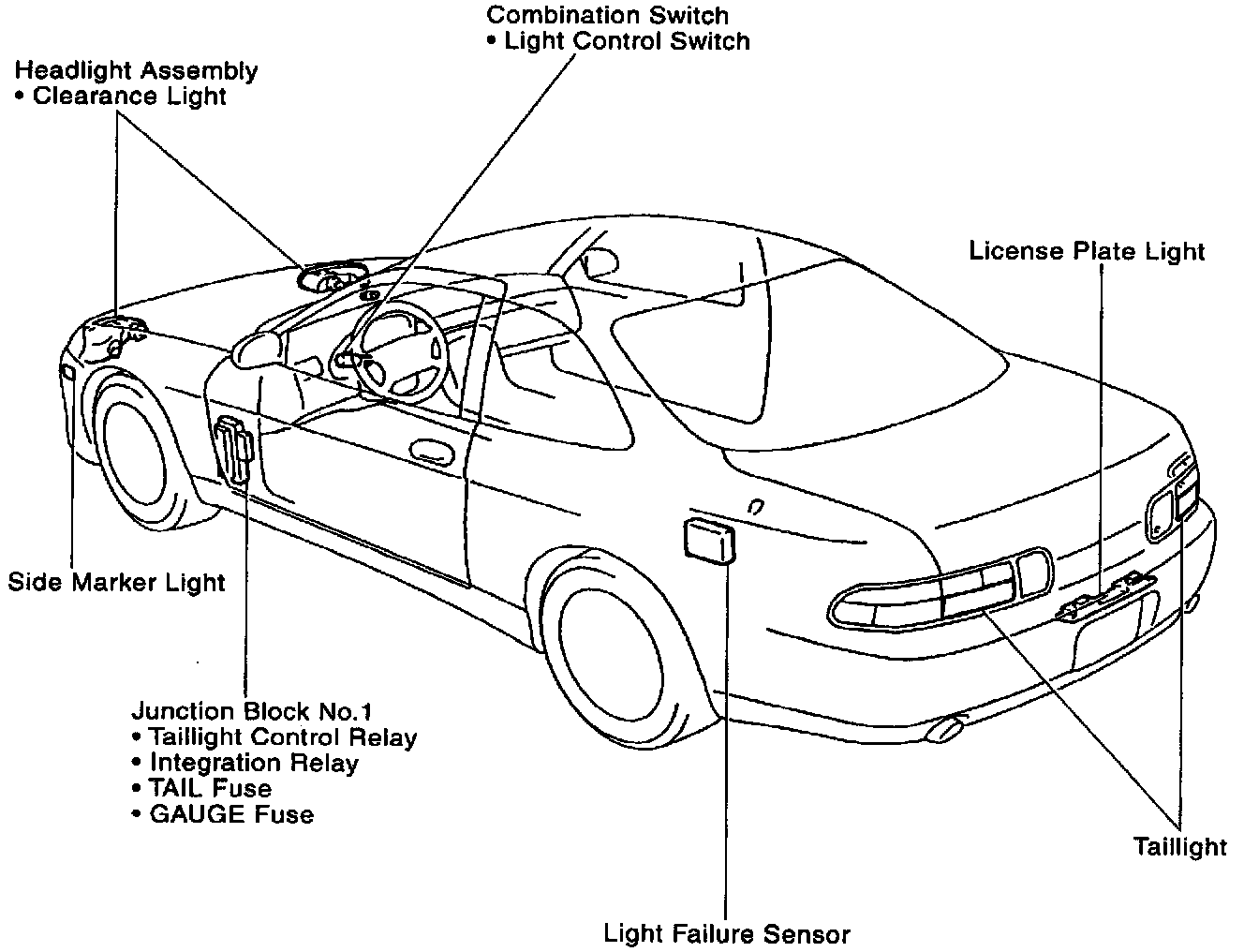

PARTS LOCATION

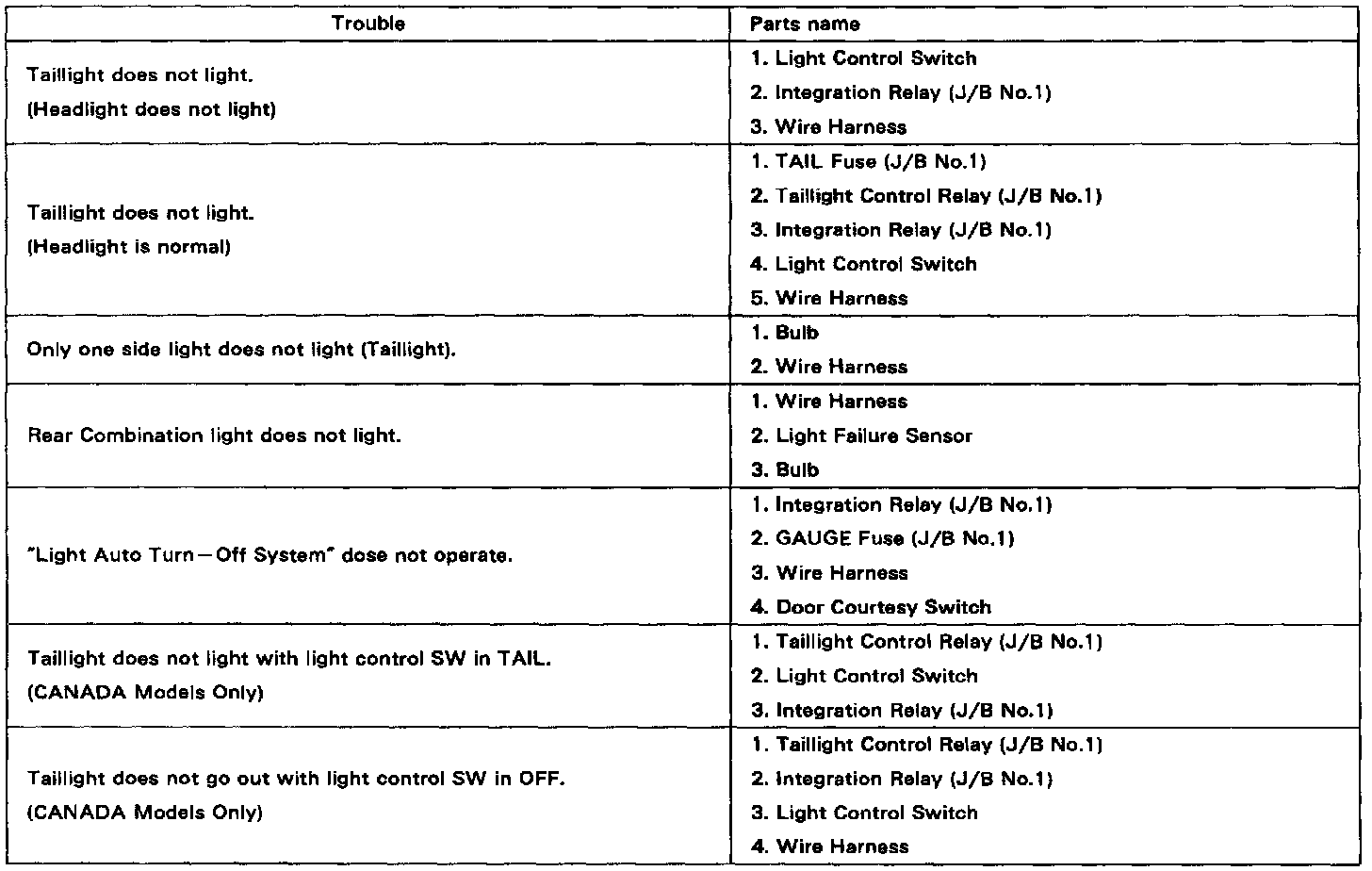

TROUBLESHOOTING
The table above will be useful for you in troubleshooting these electrical problems. The most likely causes of the malfunction are shown in the order of their probability. Inspect each part in the order shown and replace the part when it is found to be faulty.

TAILLIGHT CONTROL RELAY INSPECTION

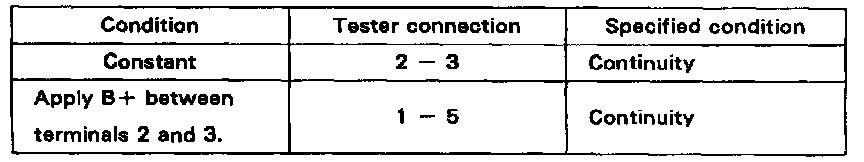

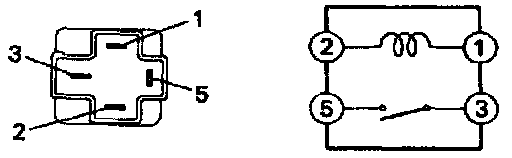

1. INSPECT RELAY CONTINUITY
If continuity is not as specified, replace the relay.

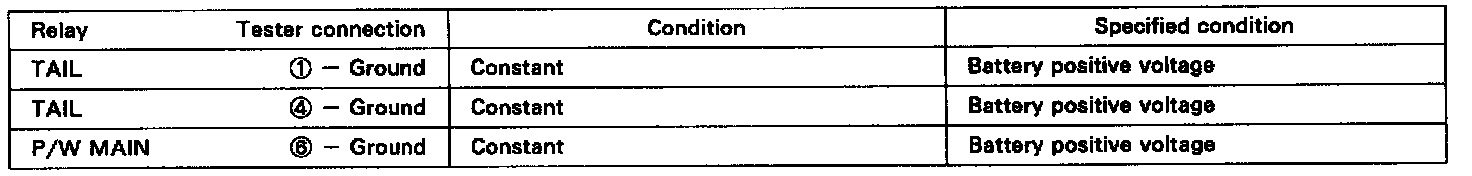

2. INSPECT RELAY CIRCUIT

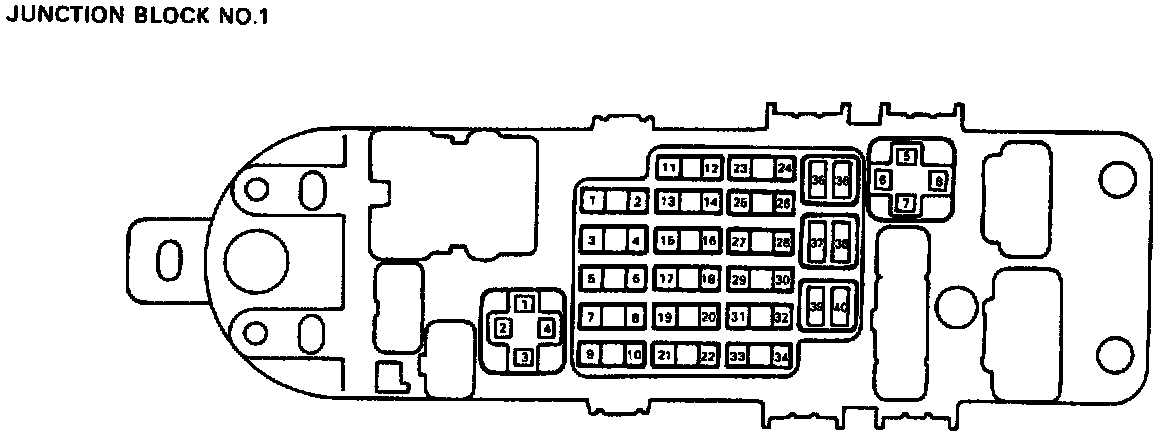

remove the relay from the junction block and inspect the connector on junction block side, as shown.
