Headlamp: Adjustments

1. INSPECT HEADLIGHT AIM
Do the following before inspection.
- Make sure the body around the headlight is not deformed.
- Park the vehicle on a level spot.
- The driver gets into the driver's seat and puts the vehicle in a state ready for driving (with a full tank).
- Bounce the vehicle several times.

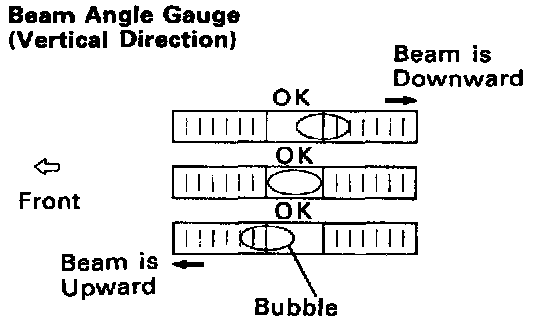

2. ADJUST VERTICAL ALIGNMENT

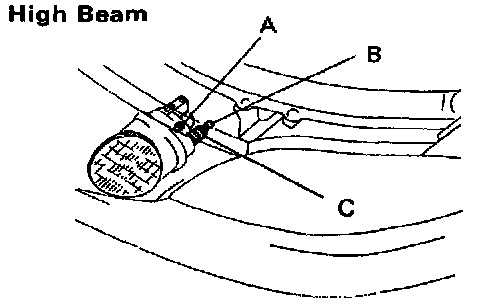

If the bubble is outside the acceptable range of the beam angle gauge, adjust it using adjusting screw A.

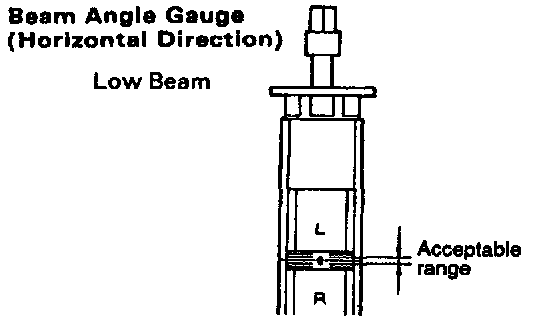

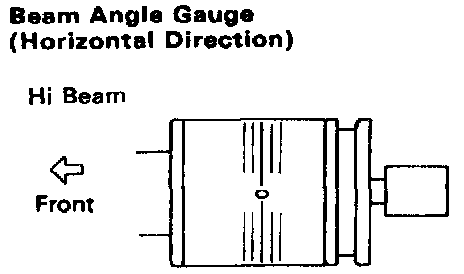

3. ADJUST HORIZONTAL ALIGNMENT
If the "0" moves away from the mark beyond the acceptable range, adjust the "0" back to the mark using adjusting screw B.
