Daytime Running Light No. 2, No. 3, and No. 4 Relay

DAYTIME RUNNING LIGHT NO.2, NO.3 AND NO.4 RELAY INSPECTION

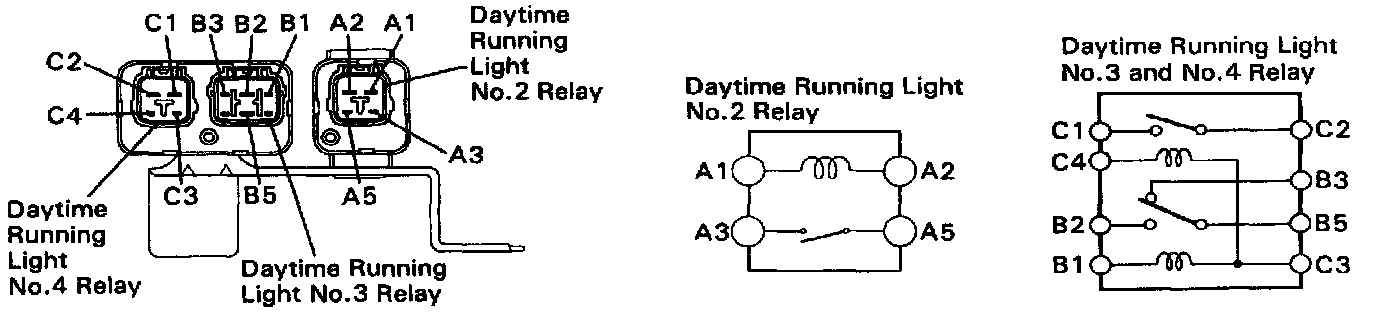

1. INSPECT RELAY CONTINUITY

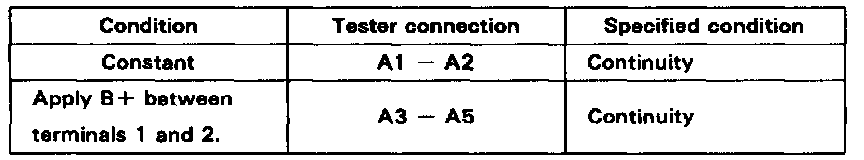

Daytime Running Light No.2 Relay

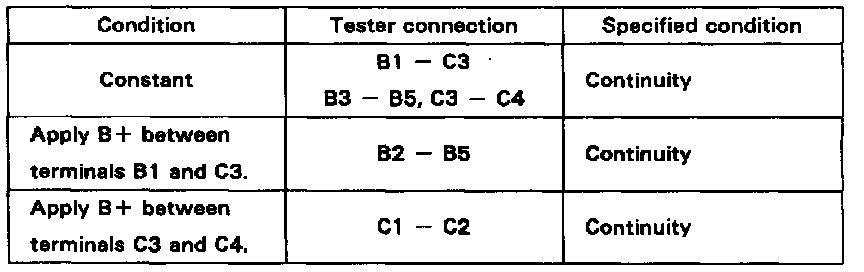

Daytime Running Light No.3 and No.4 Relay
If continuity is not as specified, replace the relay.

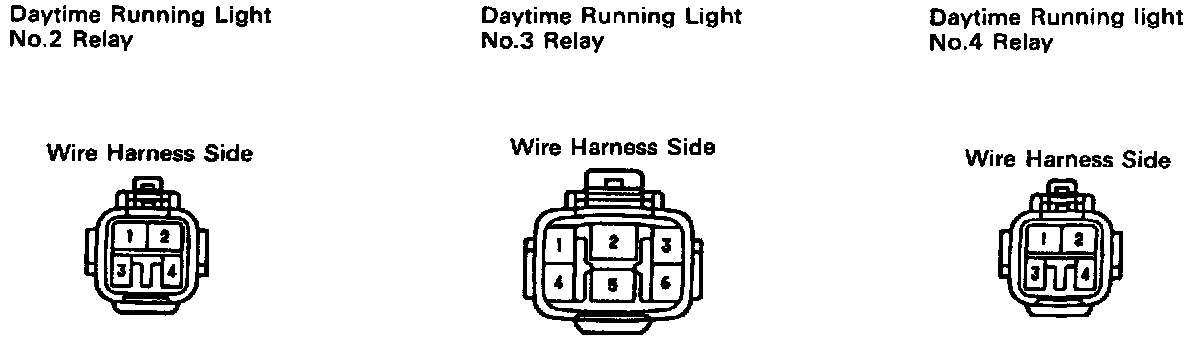

2. INSPECT RELAY CIRCUIT

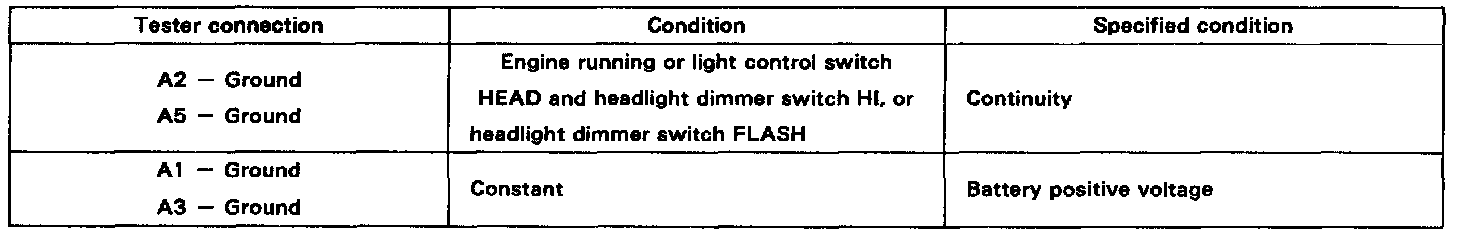

Daytime Running Light No.2 Relay

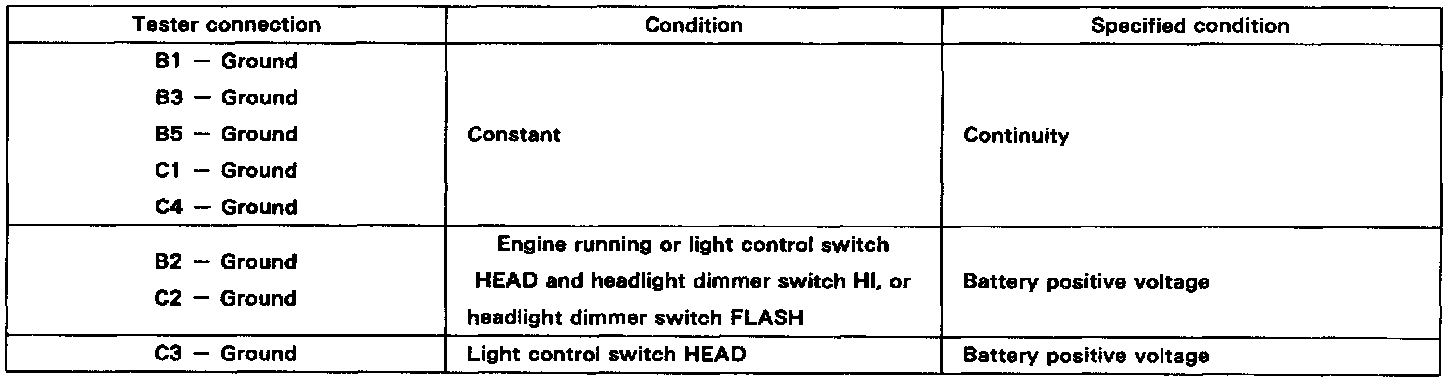

Daytime Running Light No.3 and No.4 Relay
If the circuit is not as specified, inspect the circuits connected to other parts.
