Brake Light Switch: Testing and Inspection

STOP LIGHT SWITCH INSPECTION

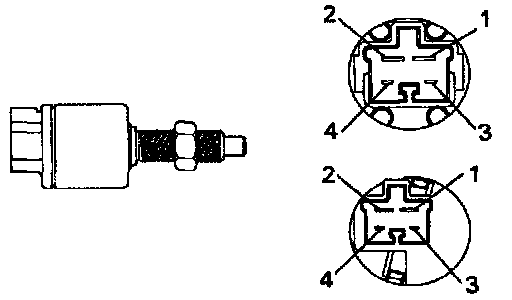

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.








2. INSPECT SWITCH CIRCUIT

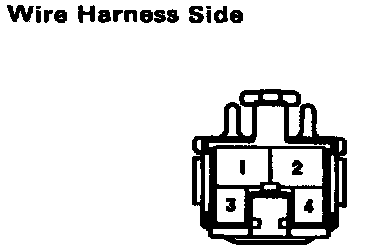

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the power source or wire harness.
