Symptom Related Diagnostic Procedures
TROUBLESHOOTINGPRECAUTIONS
1. When checking voltage, resistance, etc., use a high impedance type tester (it is impossible with a simple tester).
2. When the ignition switch is turned to START, all meters will go out but this is normal.
3. When replacing the internal mechanism (computer parts) of the meter, be careful that no part of your body or clothing comes in contact with the terminals of the leads from the IC, etc. of the replacement parts (spare parts).
4. Do not disconnect the battery while engine is running as this would cause an instant reverse charge, resulting in damage to the components.
5. Always disconnect the battery terminals before pulling apart connectors or terminals.
8. To prevent damage, handle meters with care.
PAGE REFERENCE:
TROUBLESHOOTING/COMBINATION METER
ALL METERS, GAUGES AND ILLUMINATIONS

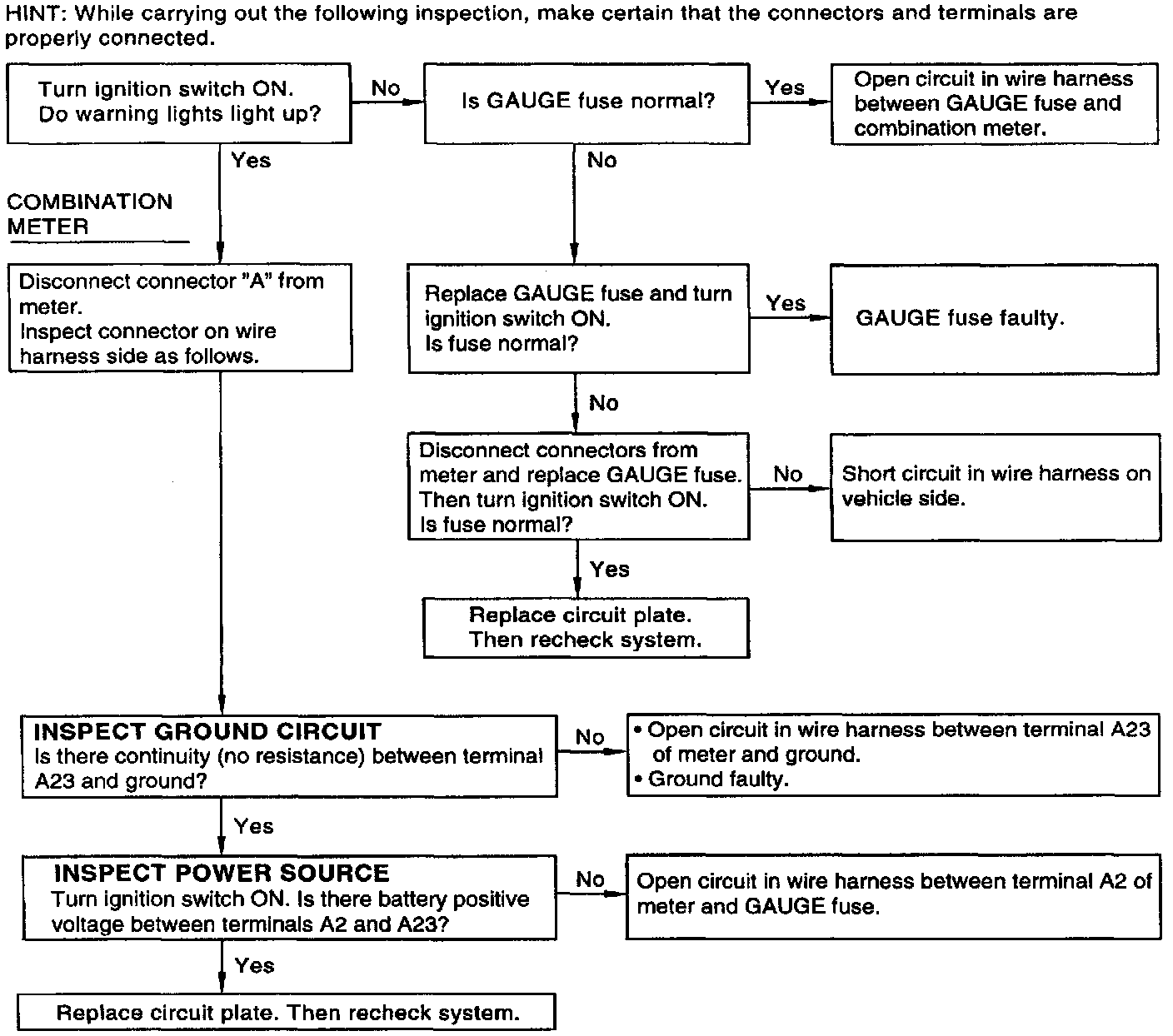

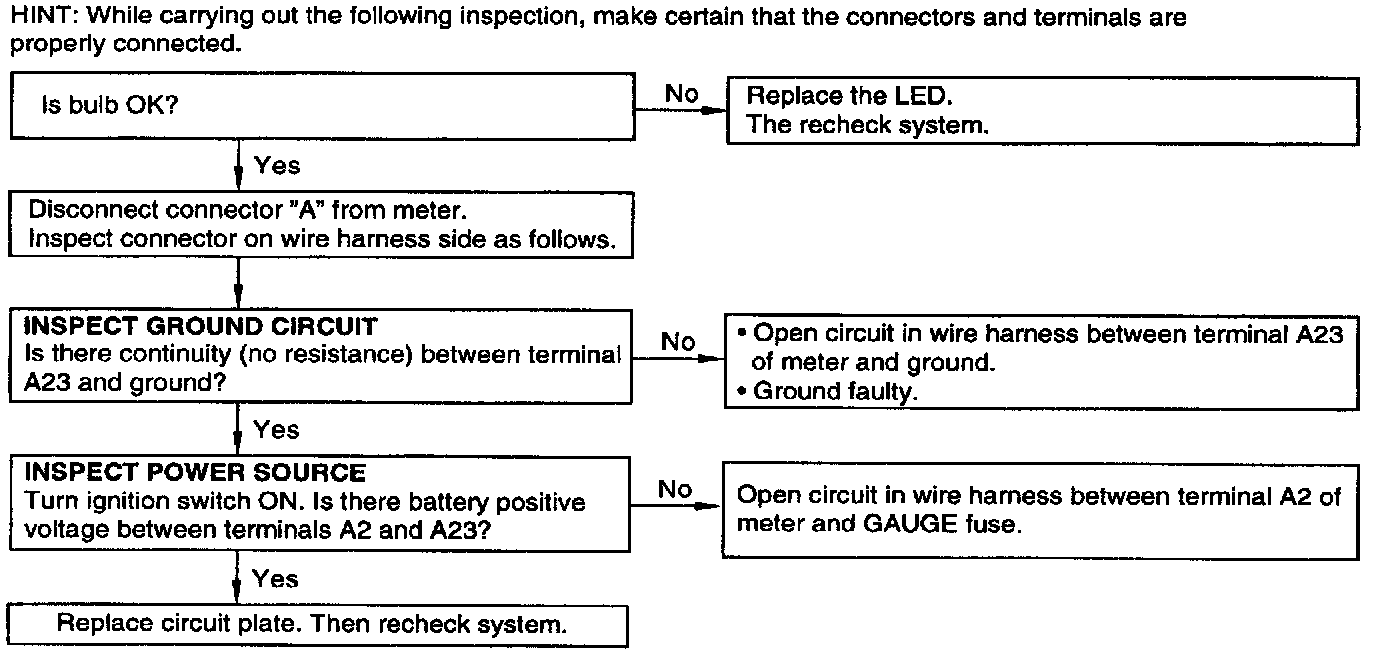

1. No display at all.

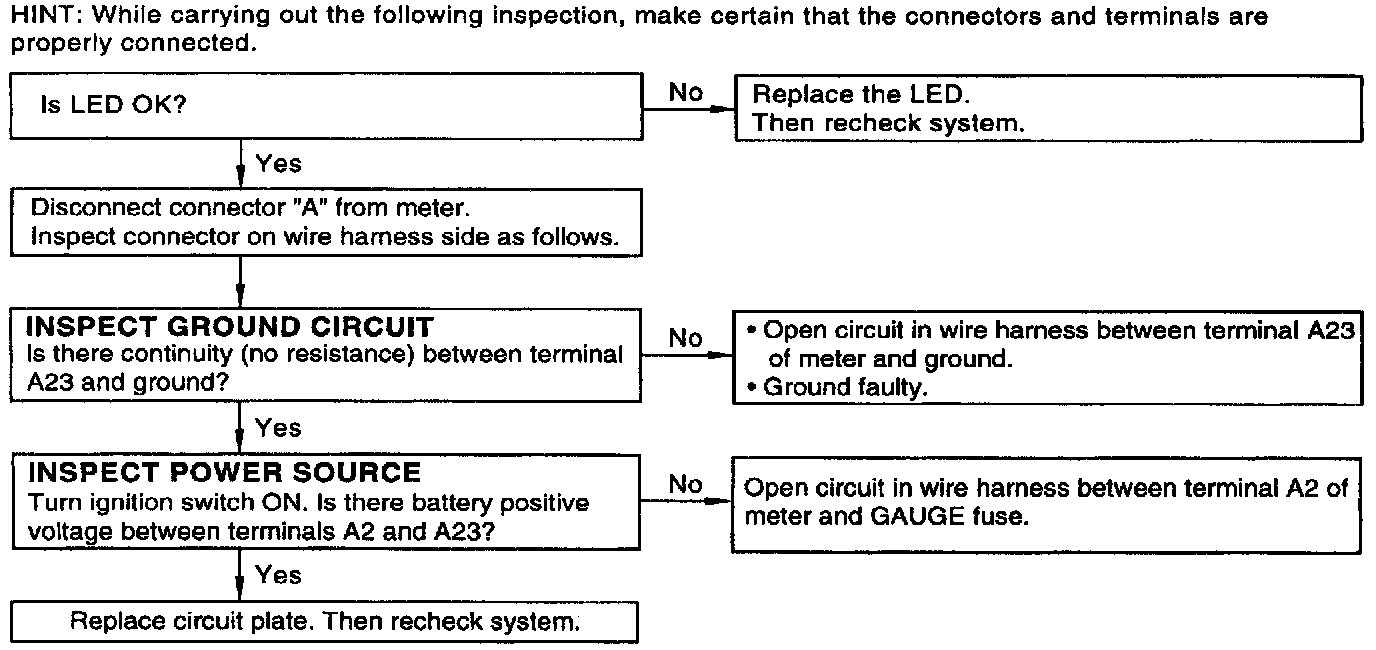

2. One indicator needle does not light up.
3. The character plate is illuminated on one side.

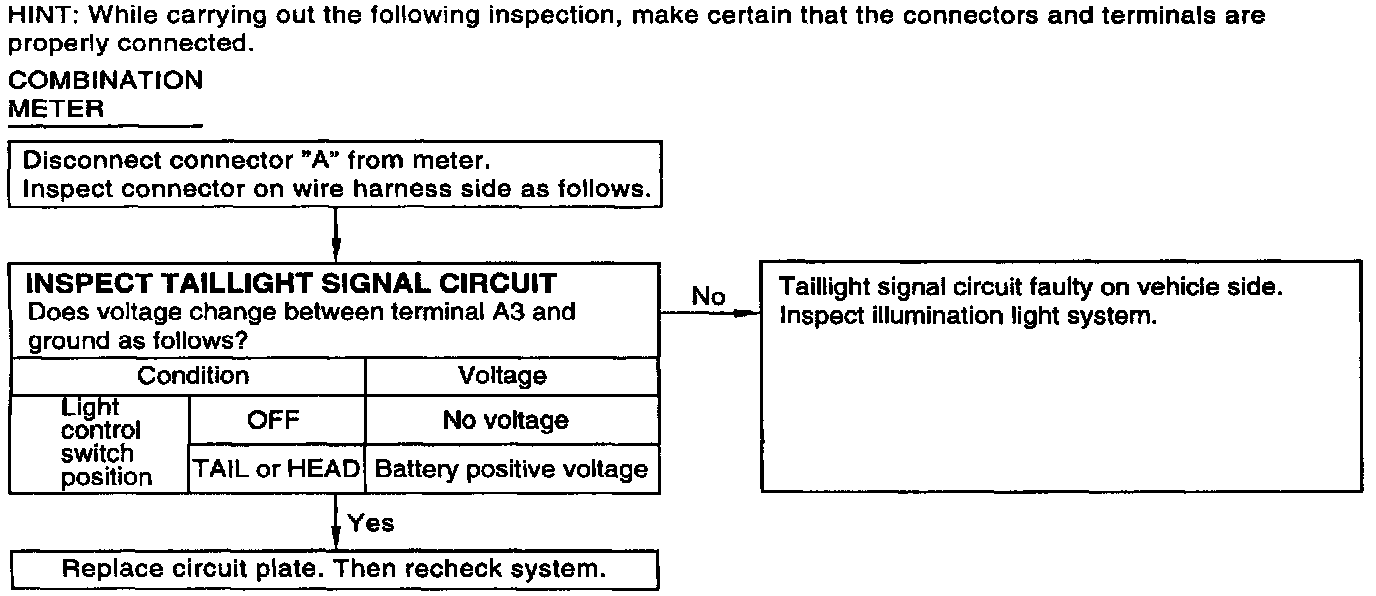

4. Brightness does not change even when light control switch is operated.(OFF-TAIL)

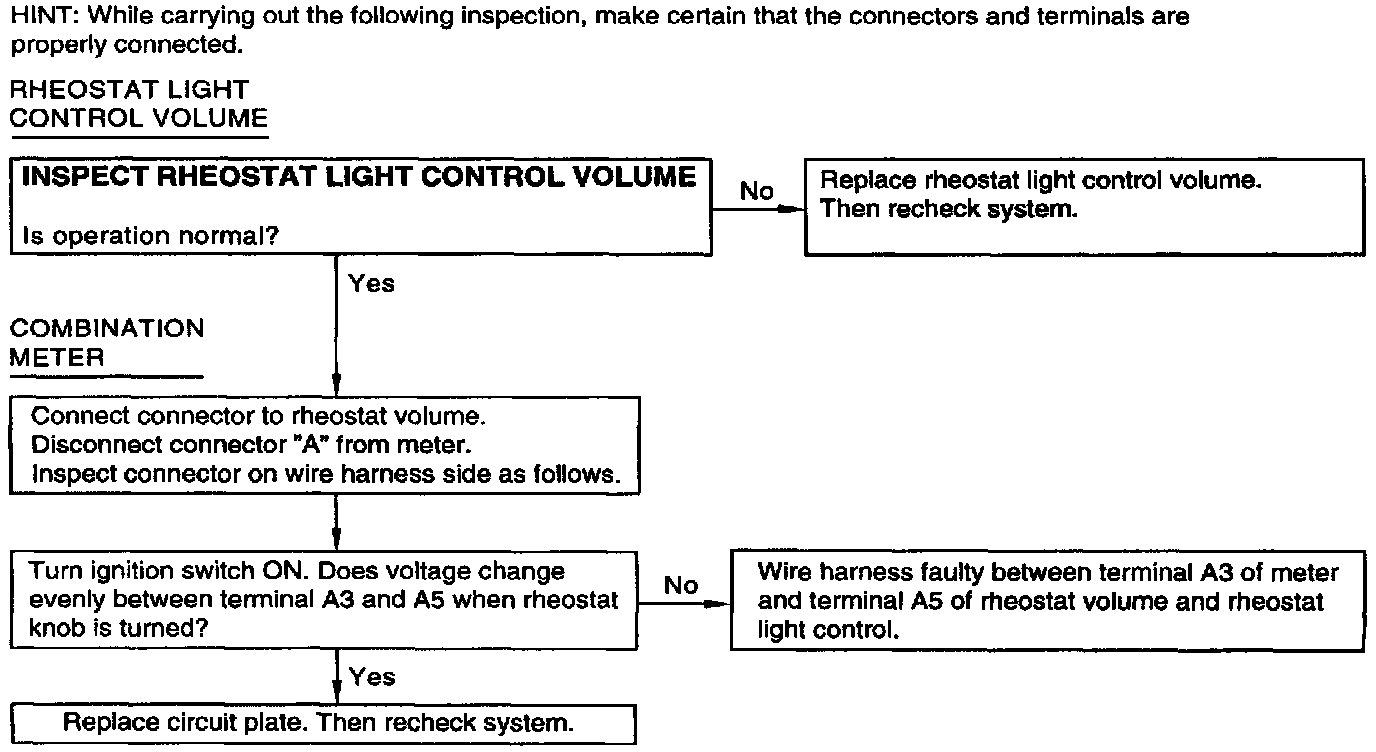

5. Brightness does not change even when rheostat volume is turned.

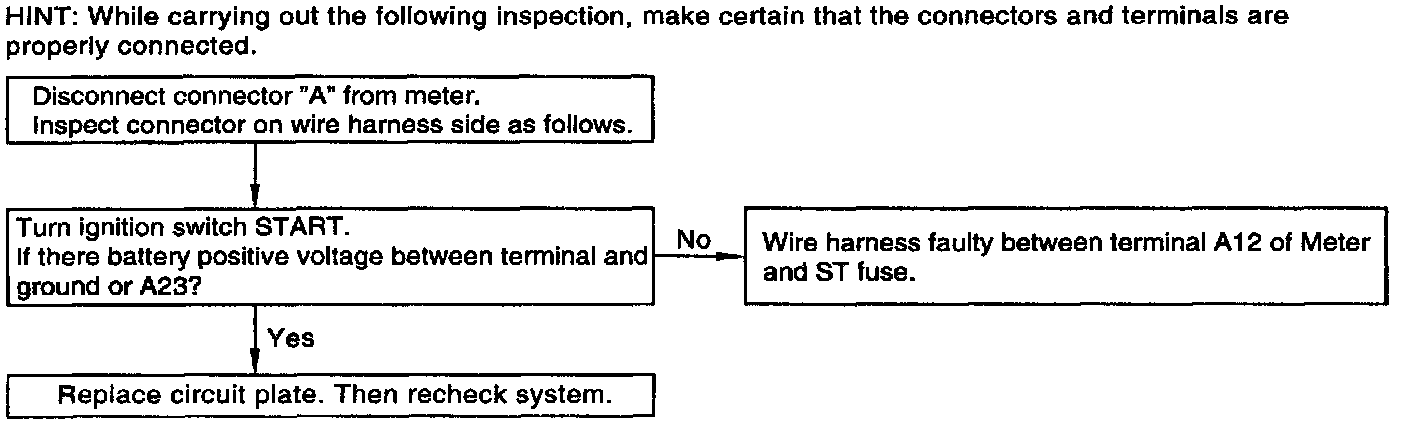

6. Does not go out while starter running.
SPEEDOMETER

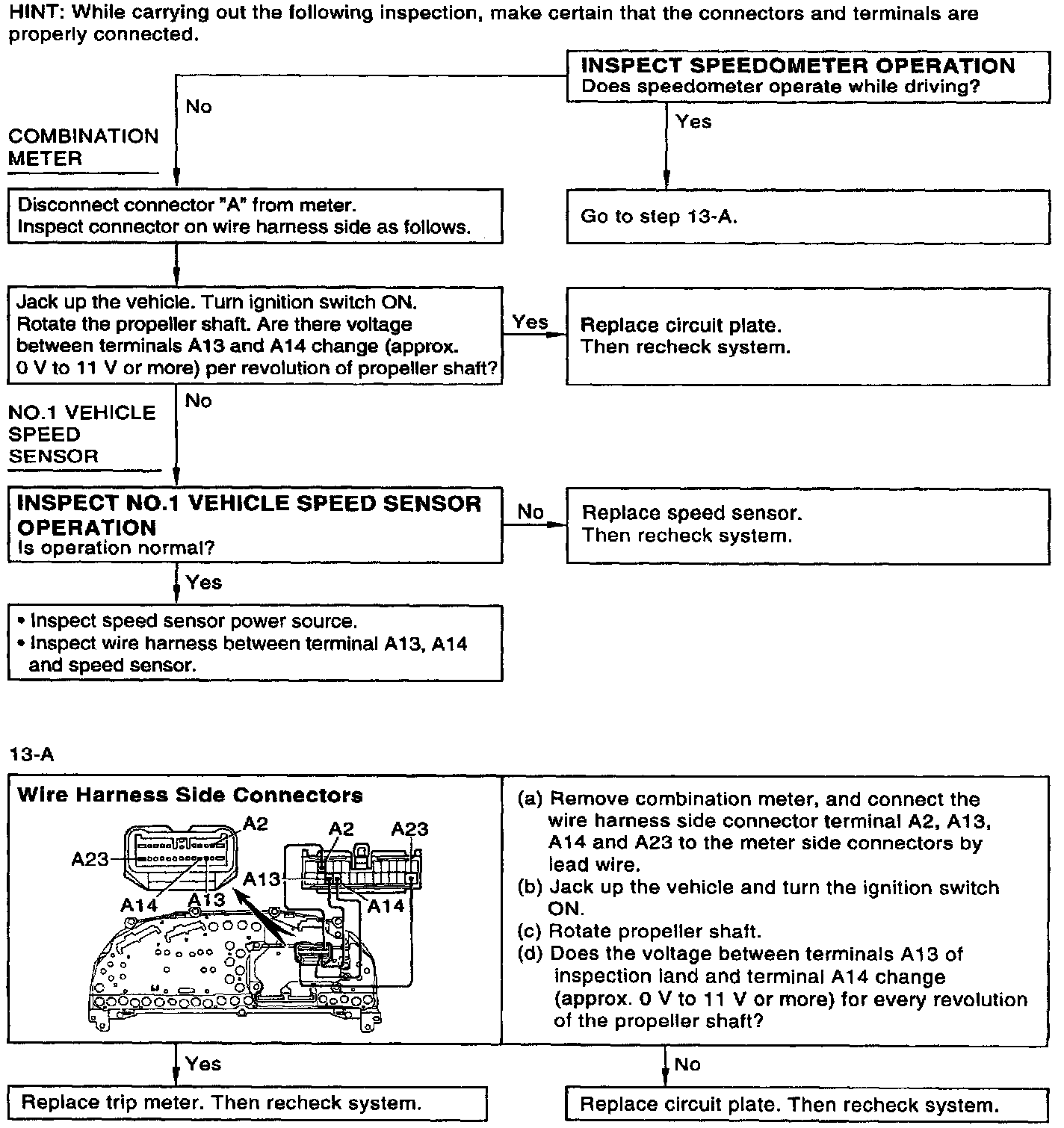

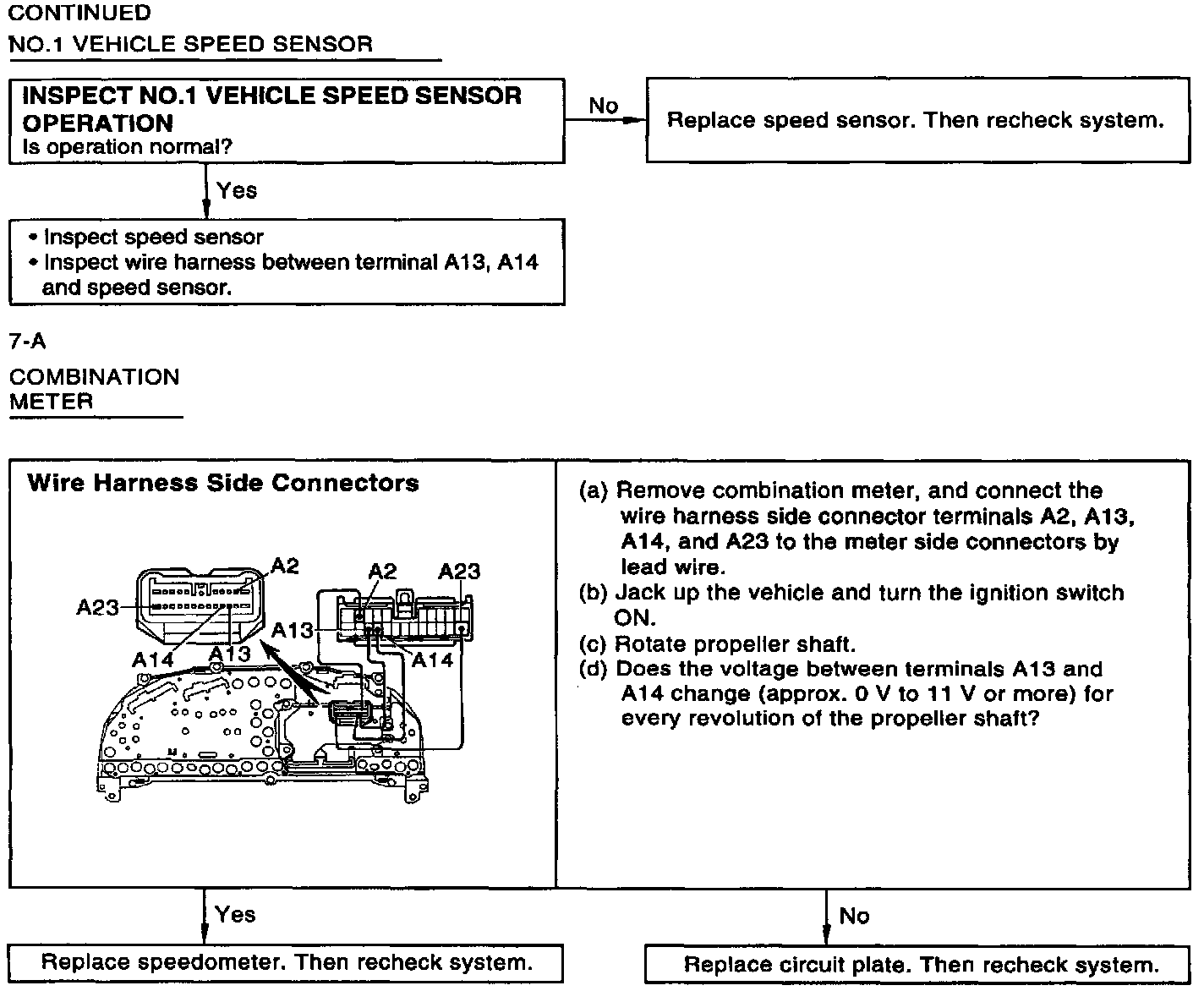

7. Speedometer does not operate while driving.

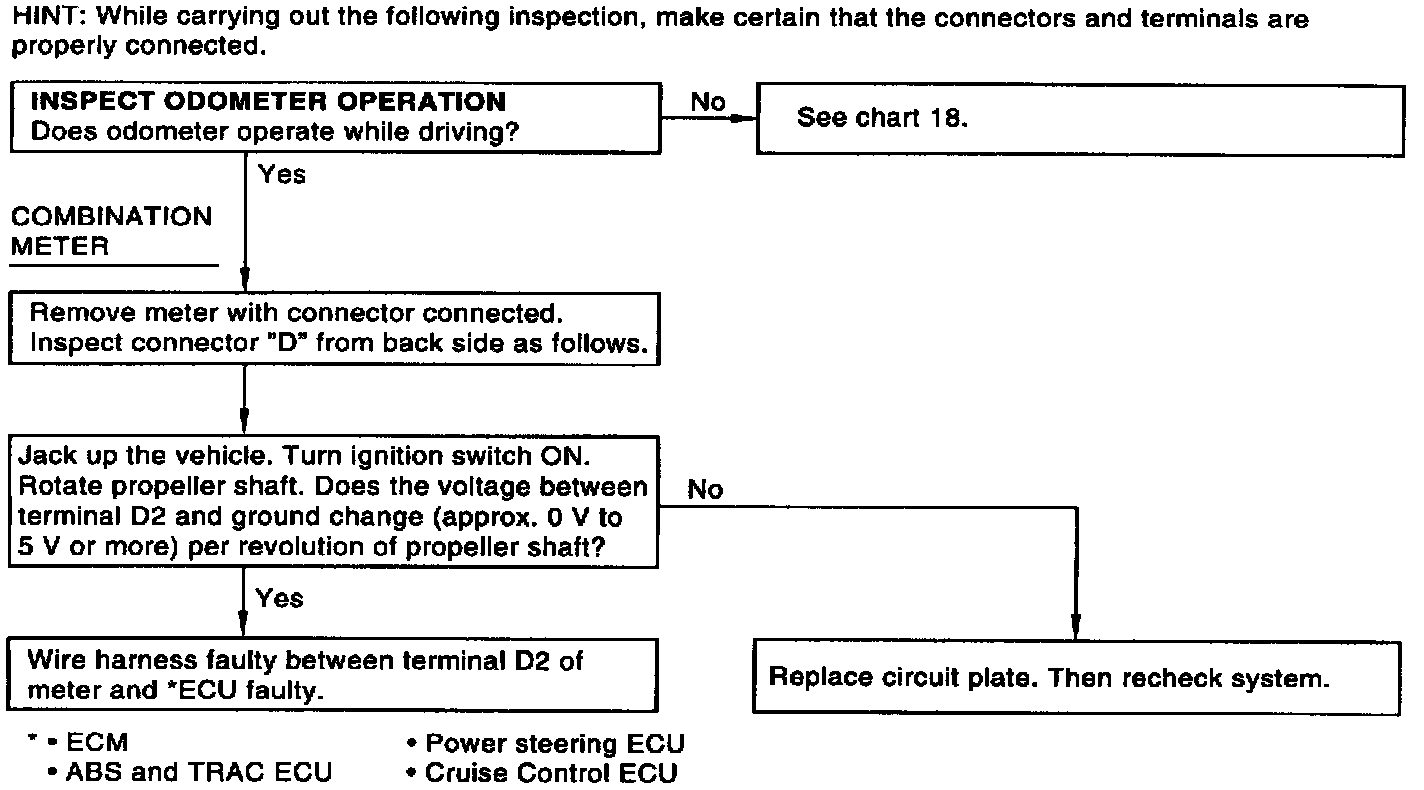

8. Vehicle speed signal (4P) faulty.
TACHOMETER

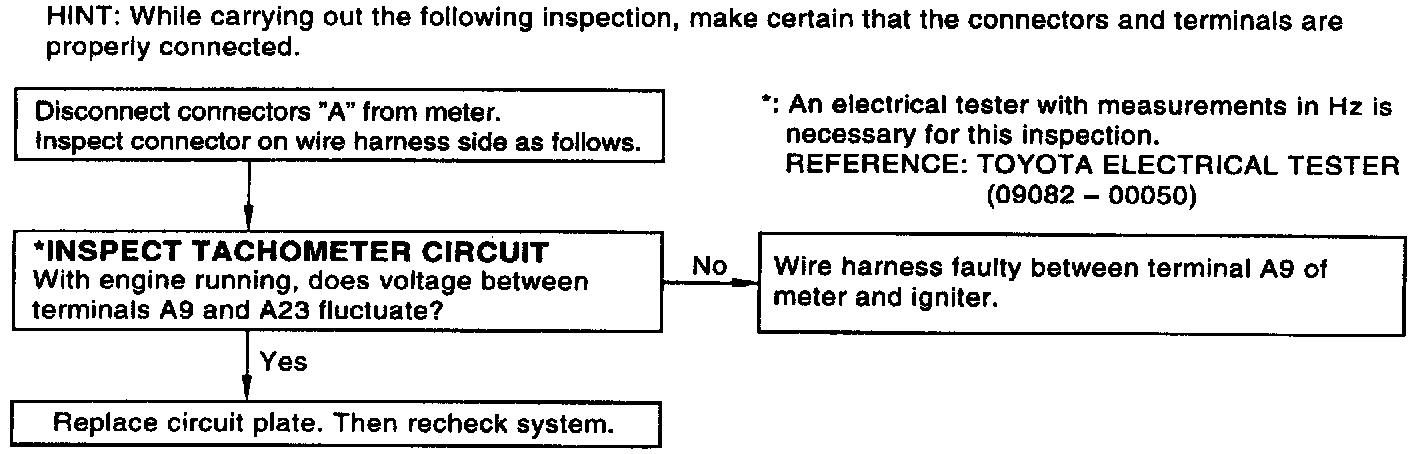

9. Tachometer does not operate while engine running.

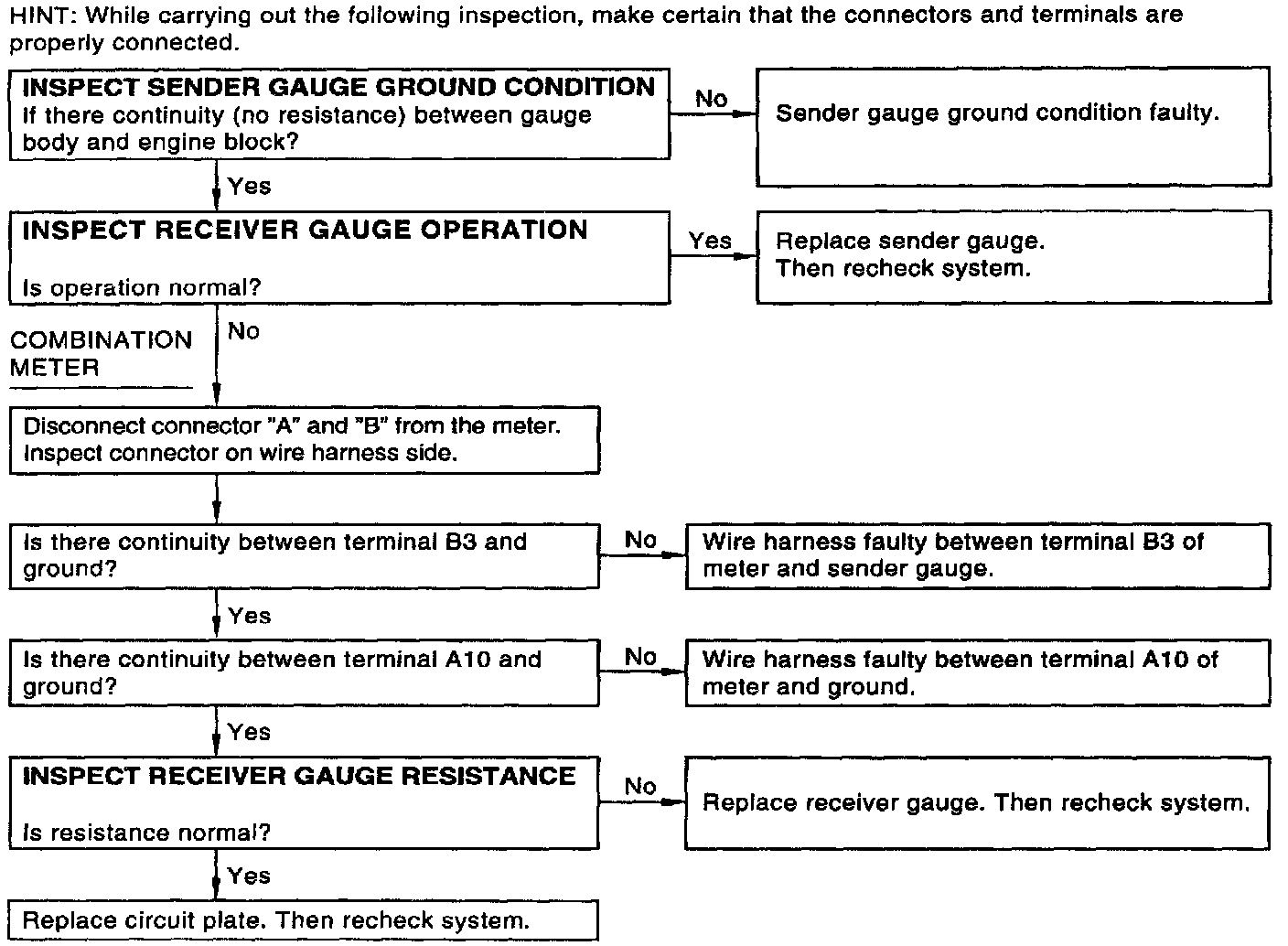

FUEL GAUGE

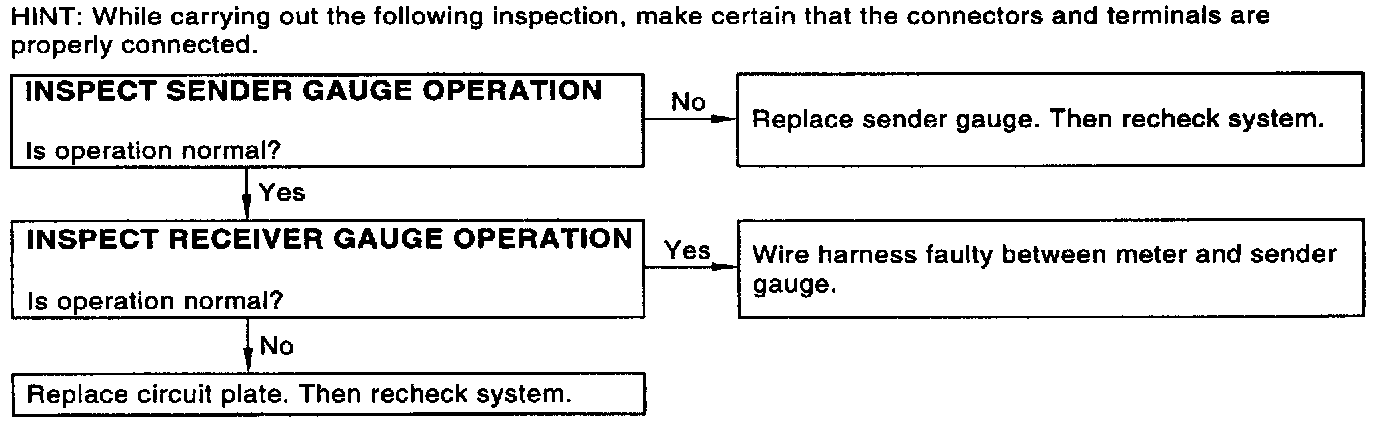

10. Does not operate or operation is abnormal.

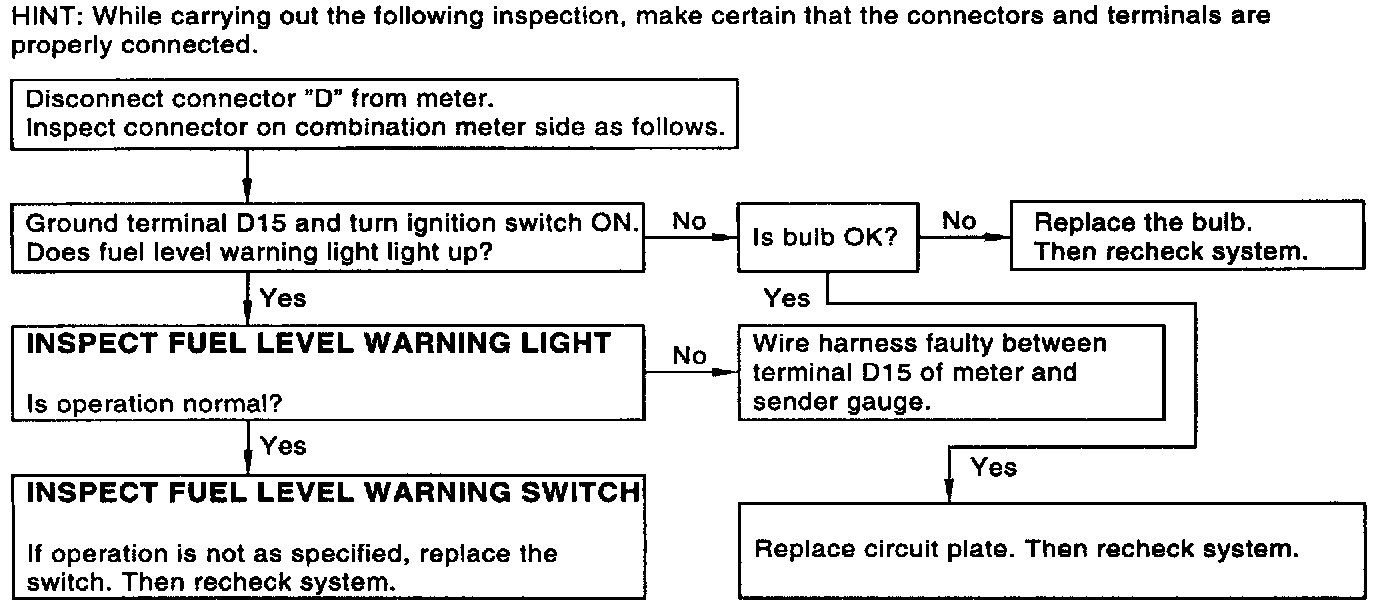

FUEL LEVEL WARNING
11. Warning light does not light up or always lights up.
ENGINE COOLANT TEMPERATURE GAUGE
12. Does not operate or operation is abnormal.

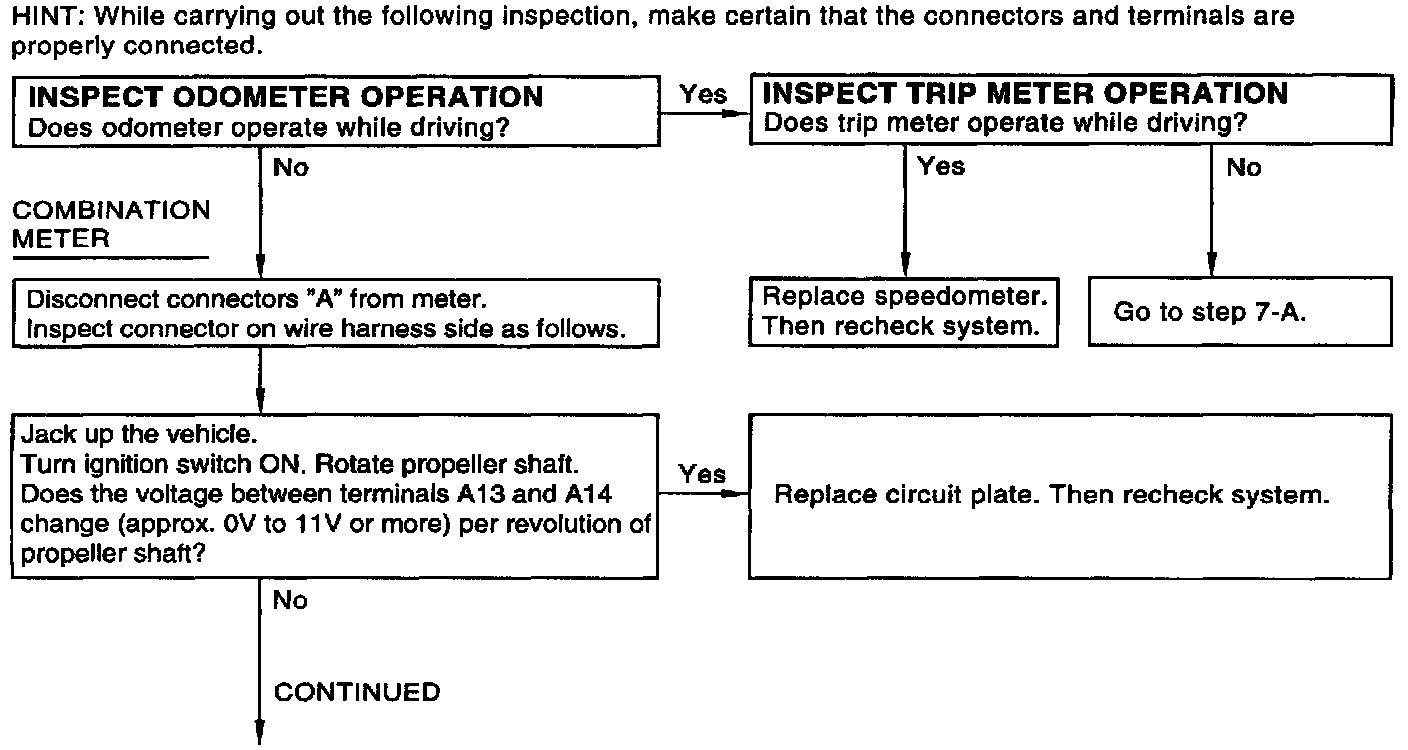

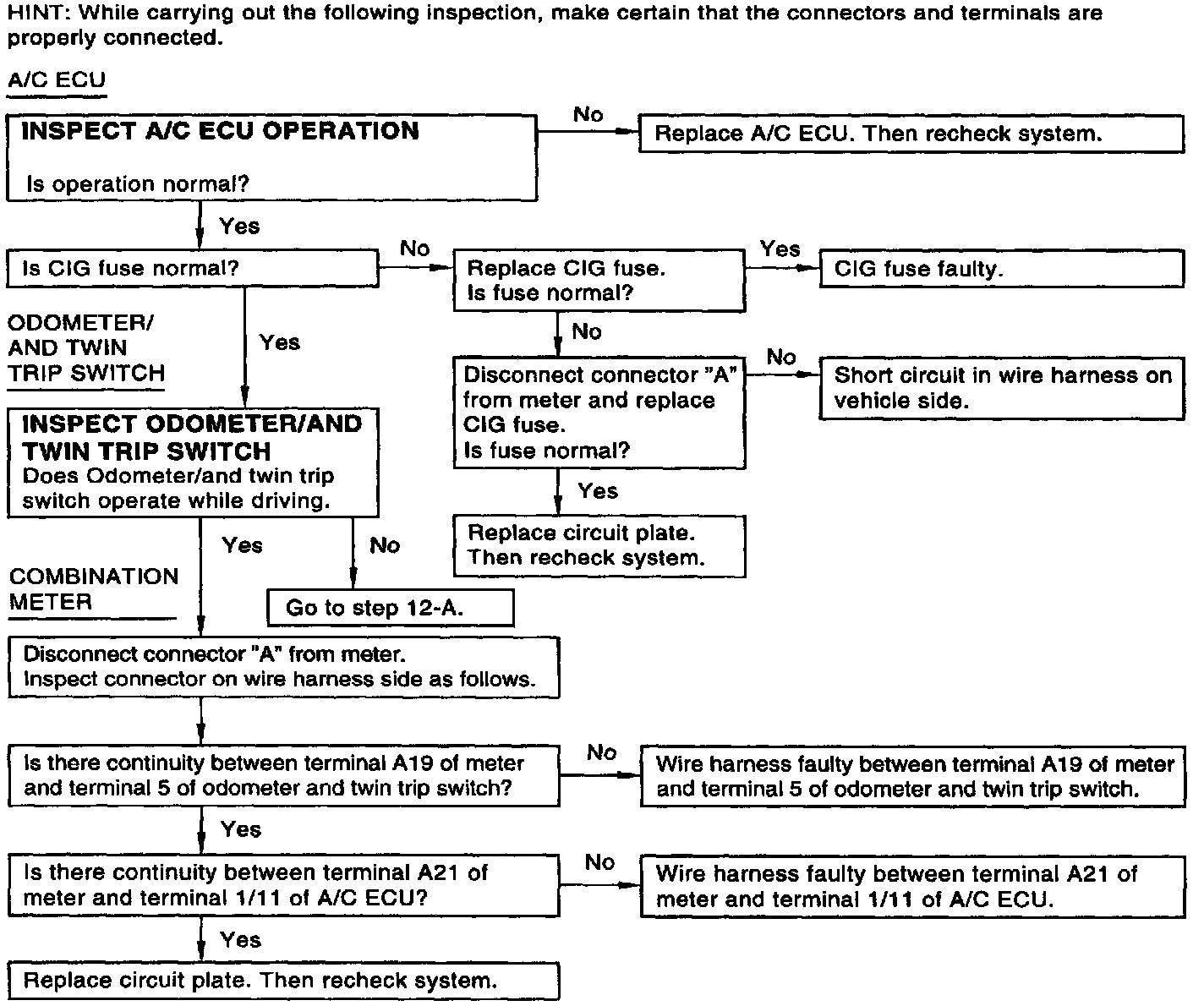

ODOMETER AND TWIN TRIP METER
13. Display does not alter during driving.

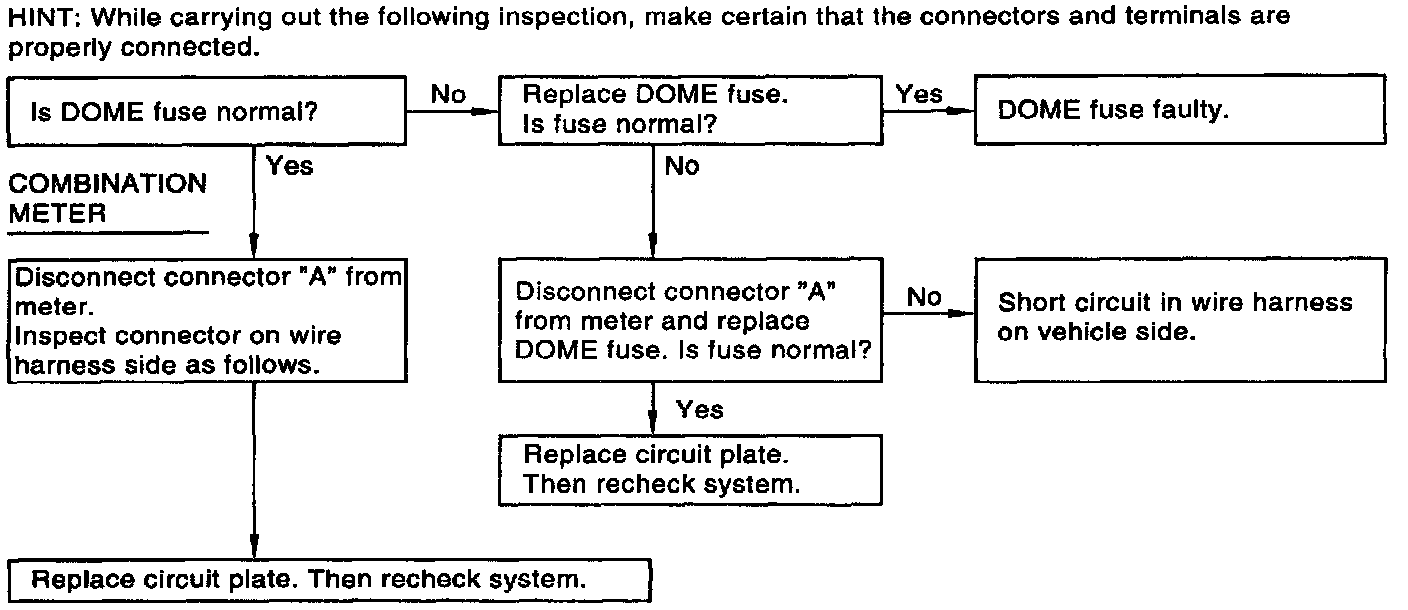

14. Display is reset whenever ignition switch is turned OFF.
OUTSIDE AIR TEMPERATURE DISPLAY
15. Abnormal display.

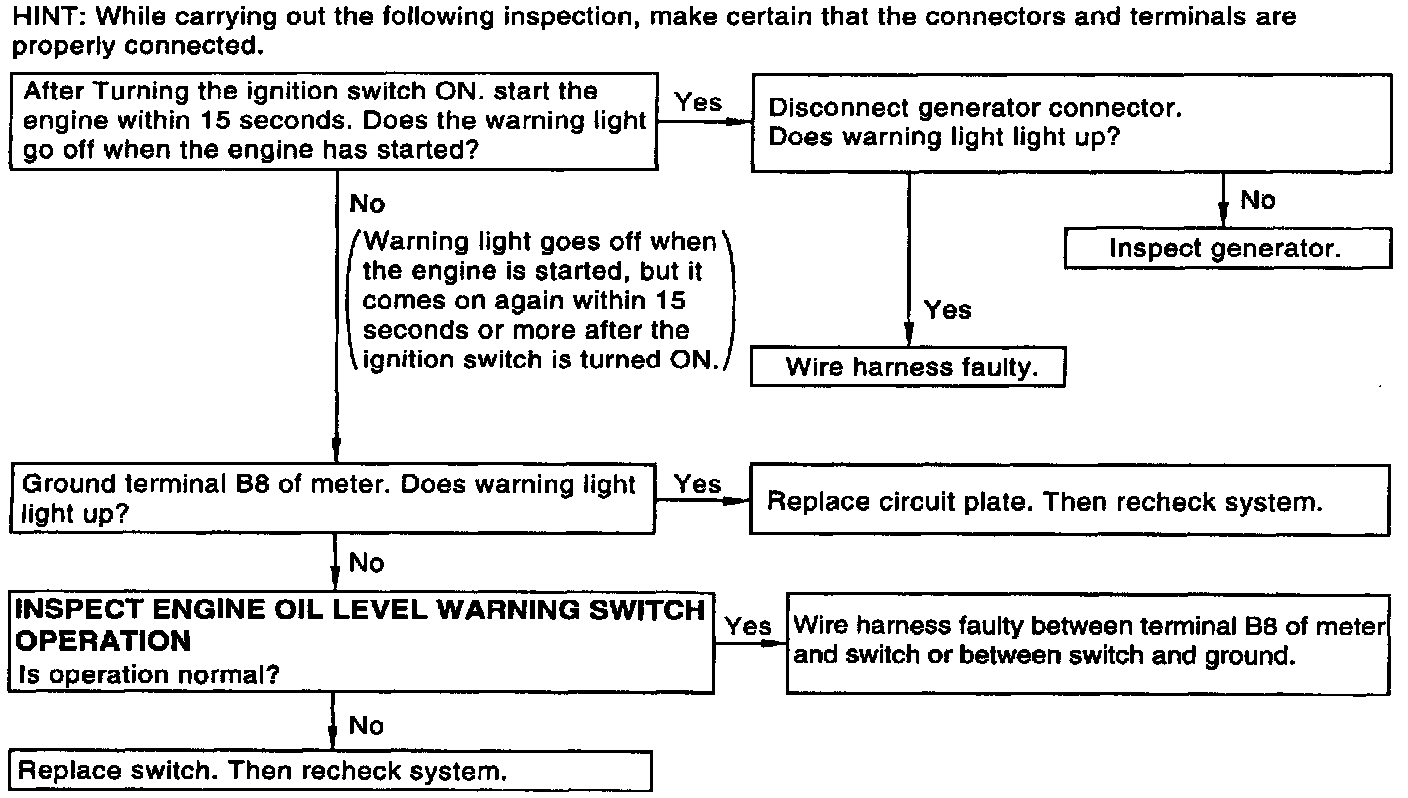

ENGINE OIL LEVEL WARNING

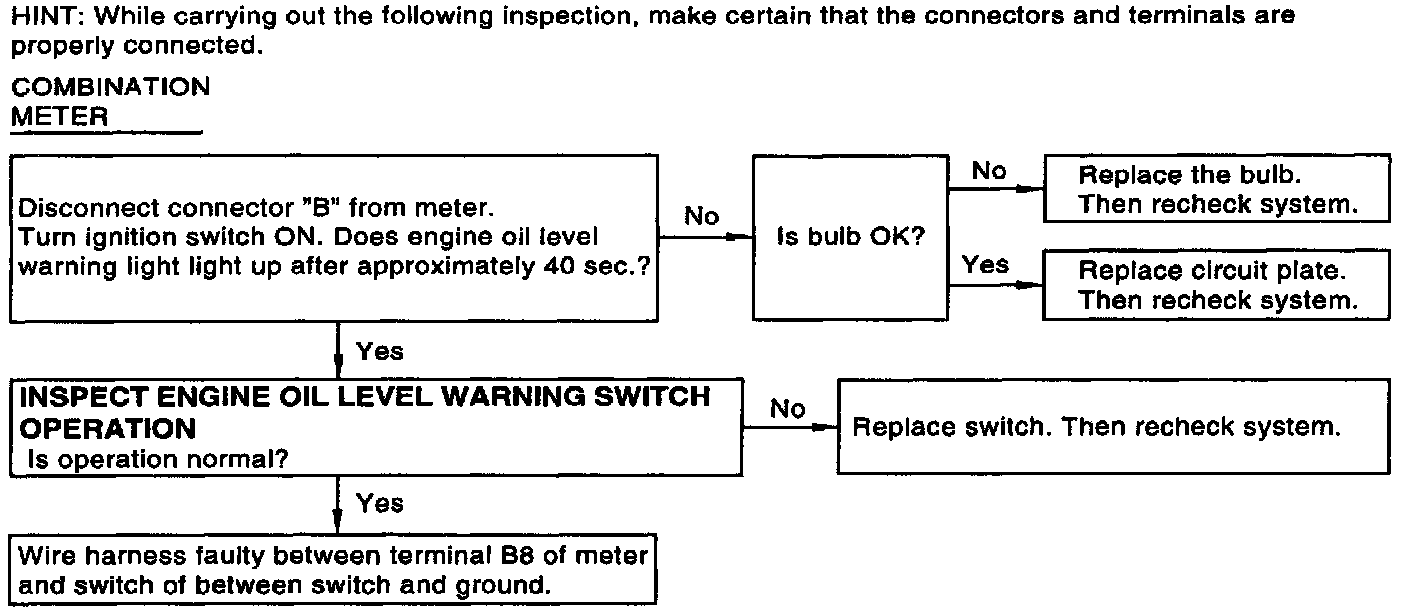

16. Warning light does not light up.
17. Warning light always light up.

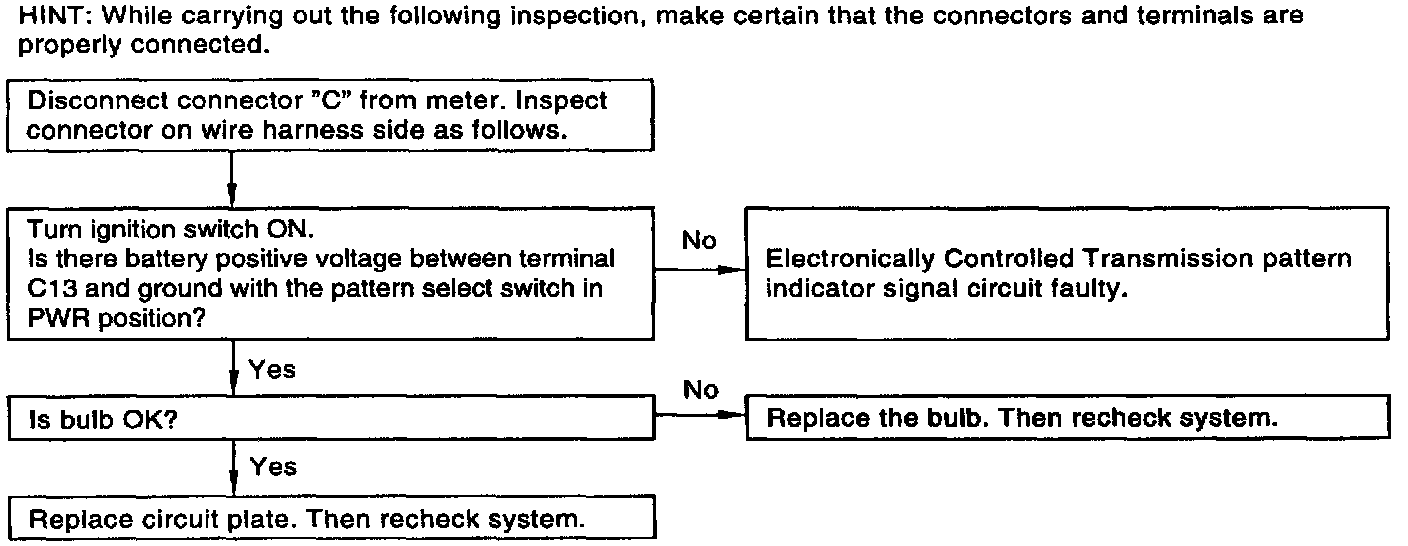

ELECTRONICALLY CONTROLLED TRANSMISSION PWR INDICATOR
18. Abnormal operation or indicator does not light up.
CRUISE MAIN INDICATOR
19. Abnormal operation or Indicator does not light up.

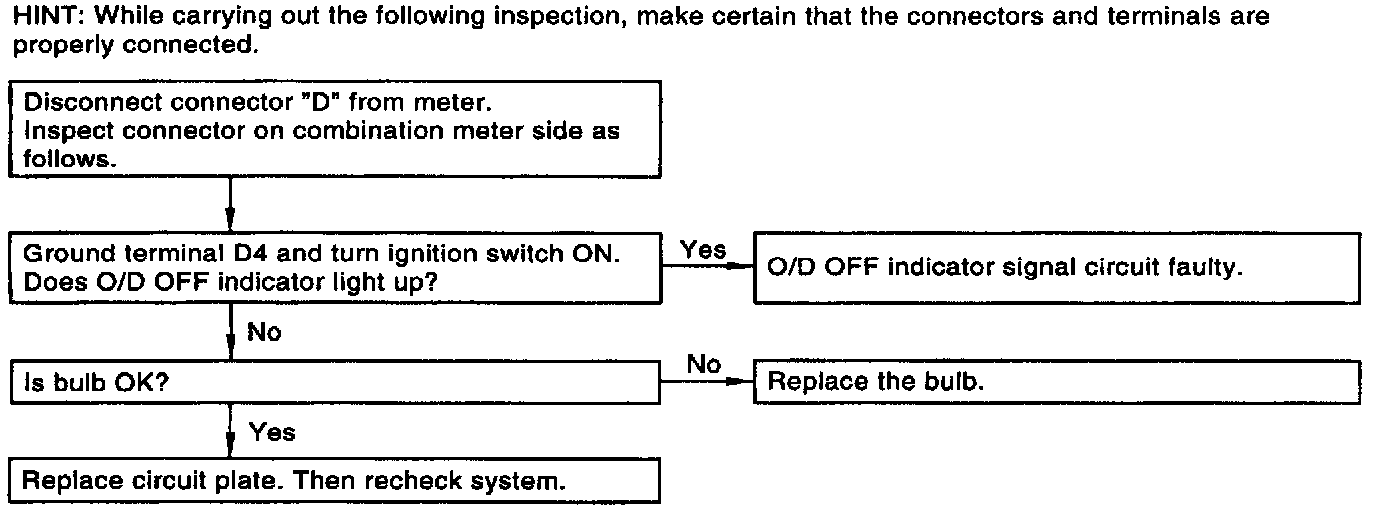

O/D OFF INDICATOR
20. Abnormal operation or Indicator does not light up.
SHIFT POSITION INDICATOR

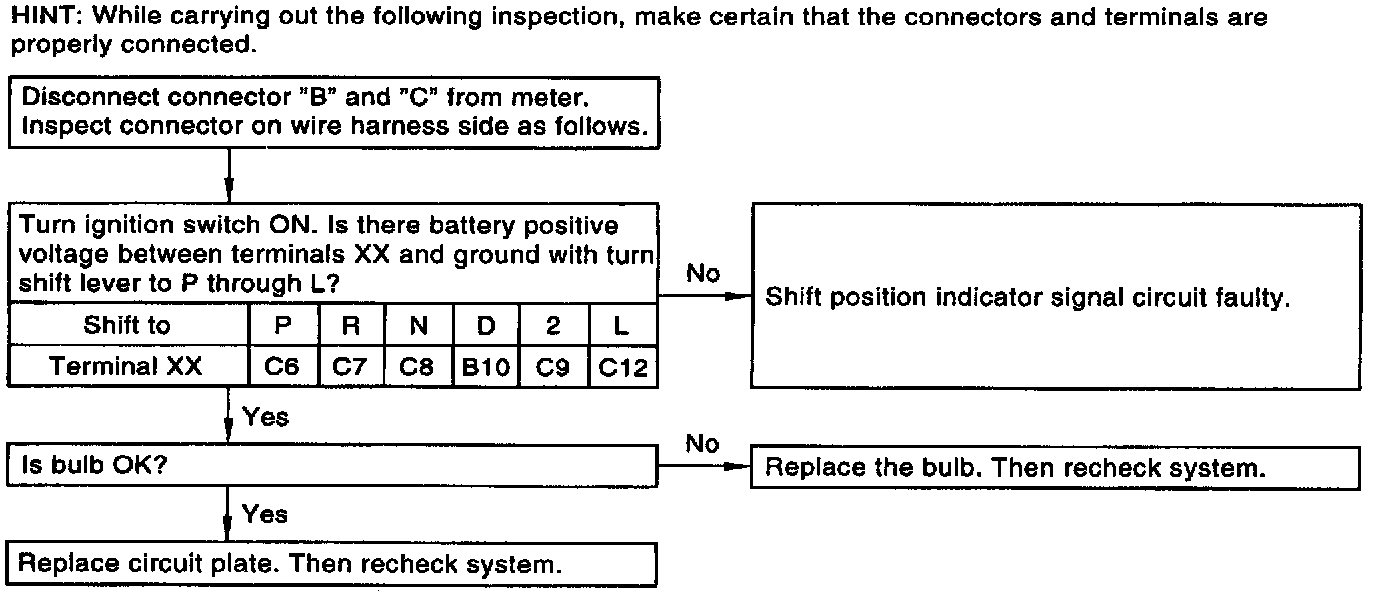

21. Abnormal operation or Indicator does not light up.

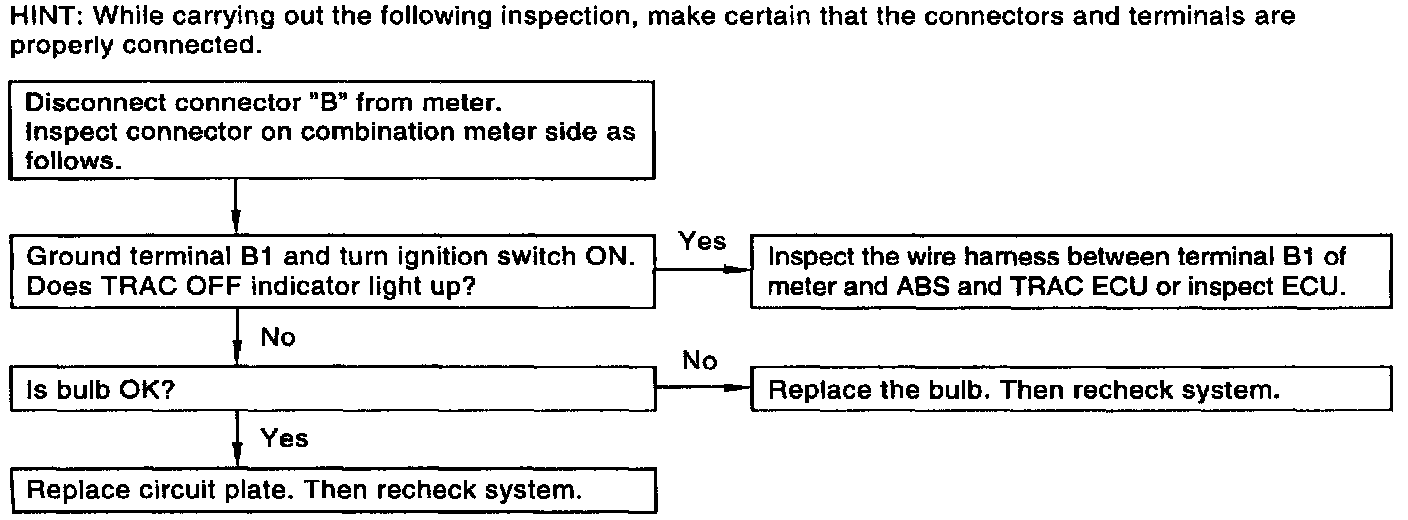

TRAC OFF INDICATOR

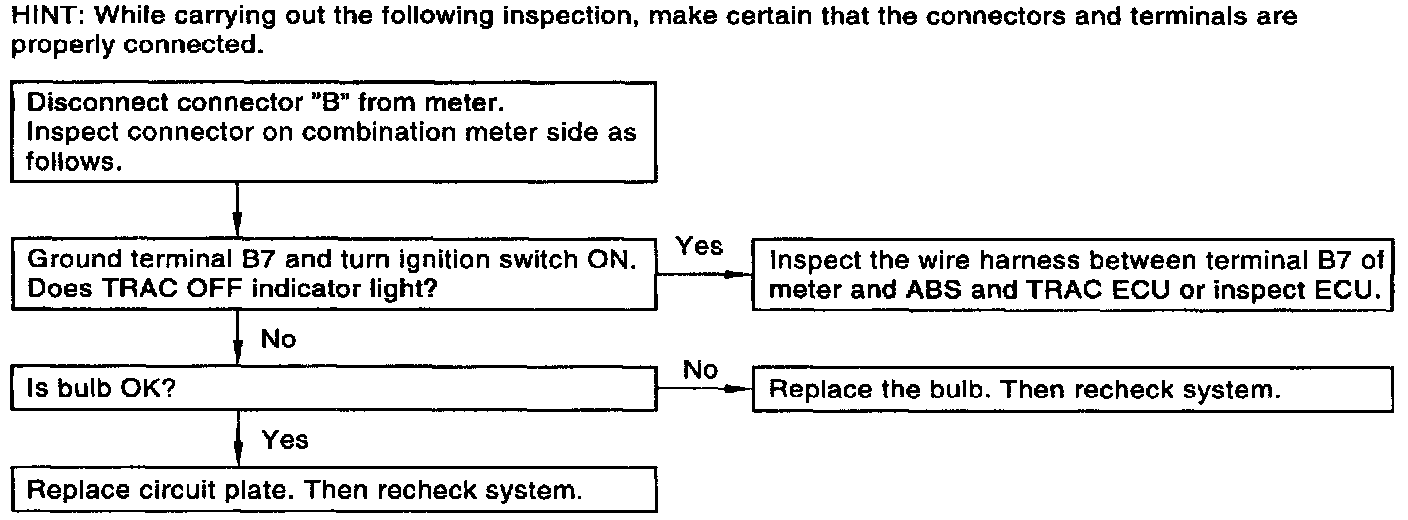

22. Abnormal operation or Indicator does not light up.
ABS WARNING
23. Abnormal operation or warning light does not light up.

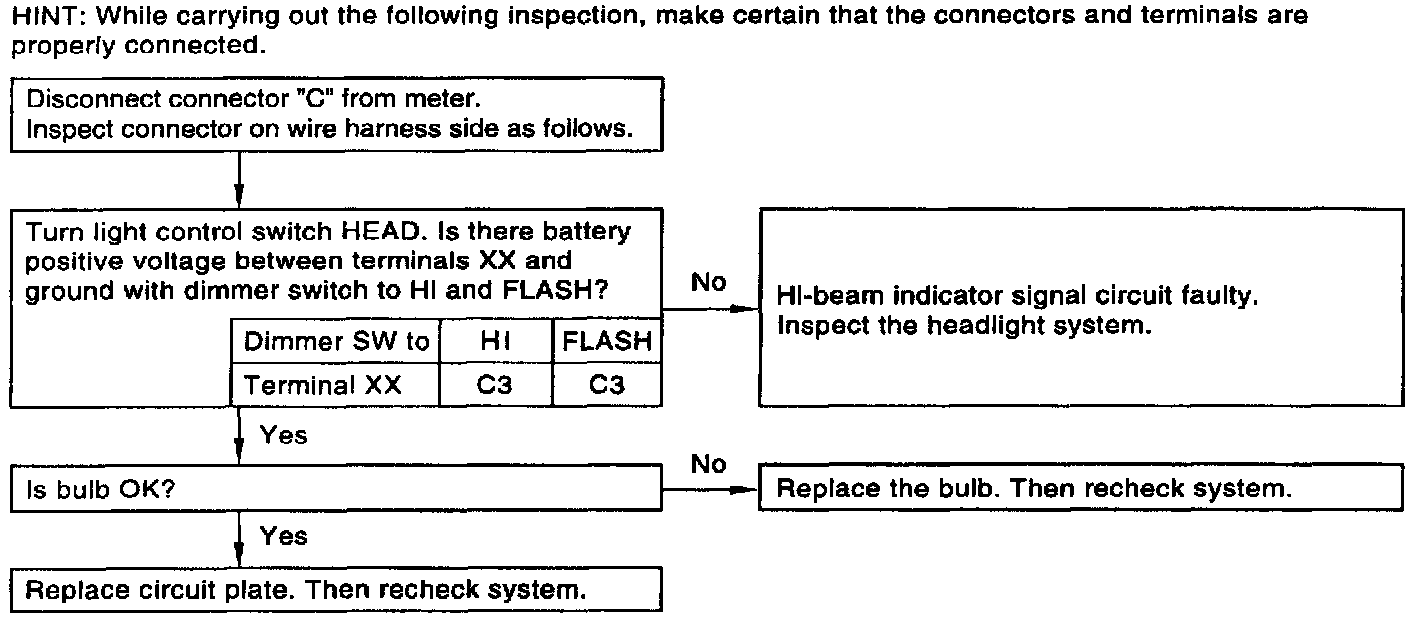

HIGH BEAM INDICATOR
24. Abnormal operation or Indicator does not light up.

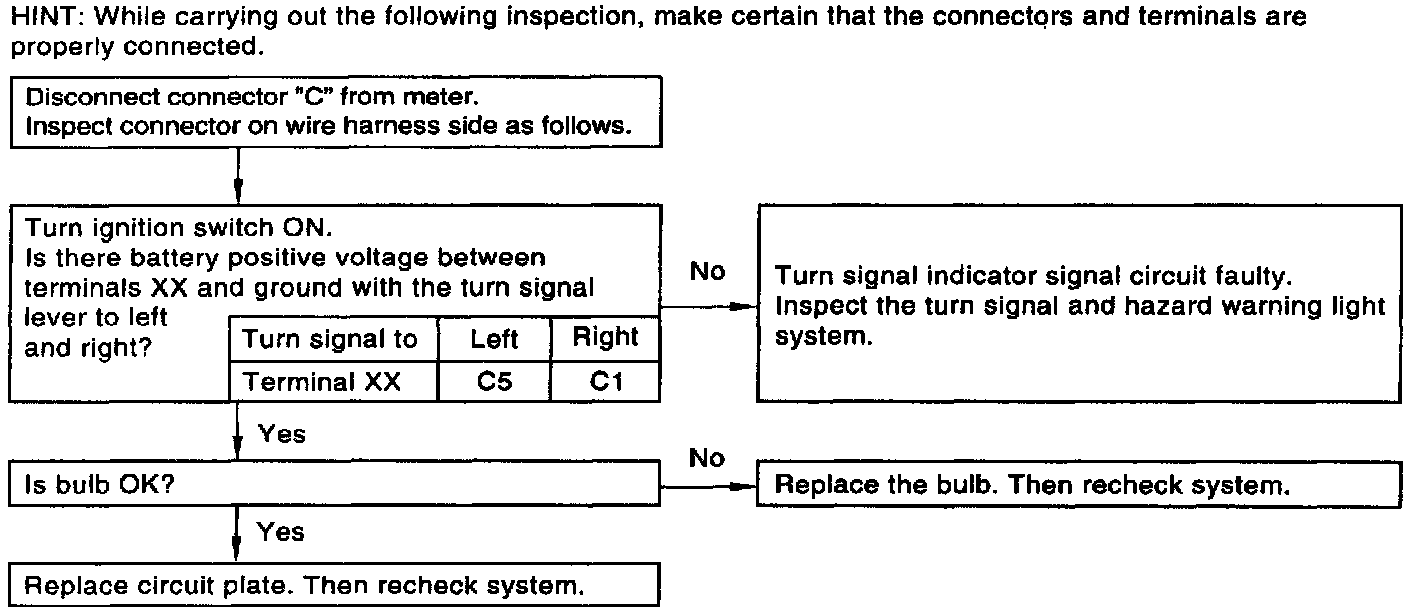

TURN SIGNAL INDICATOR
25. Abnormal operation or Indicator does not light up.

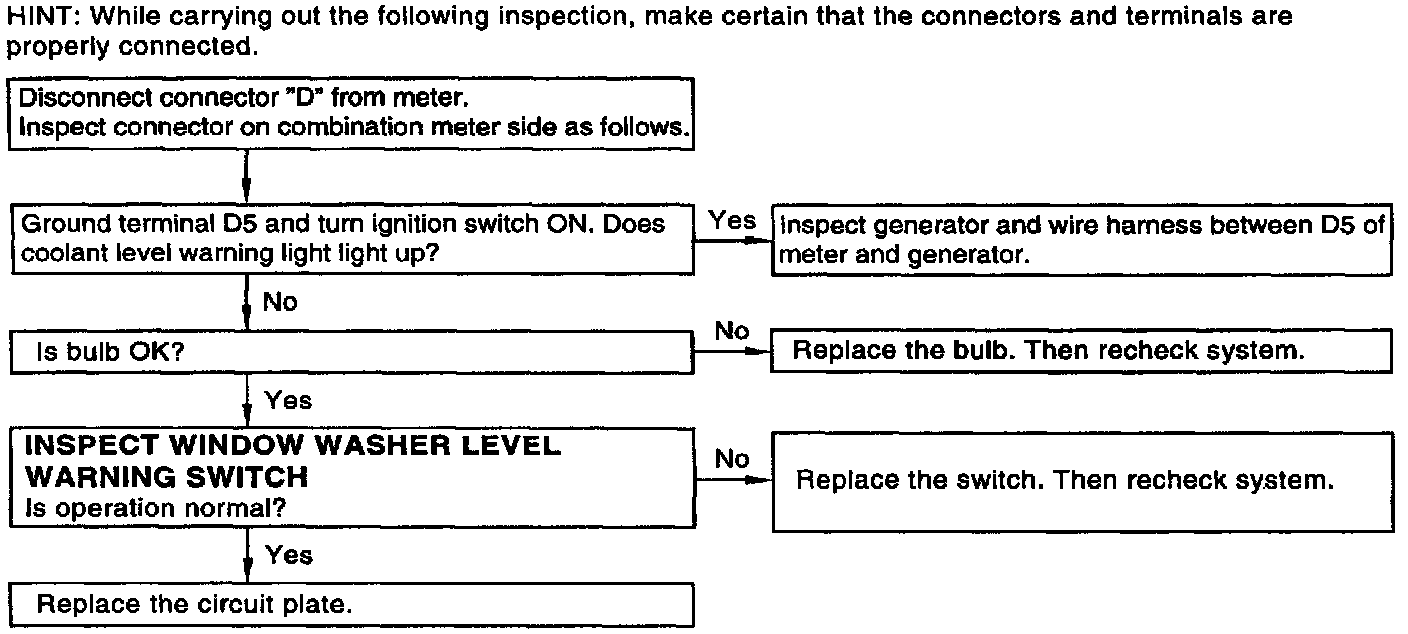

WINDOW WASHER LEVEL WARNING SWITCH
26. Abnormal operation or Indicator does not light up.

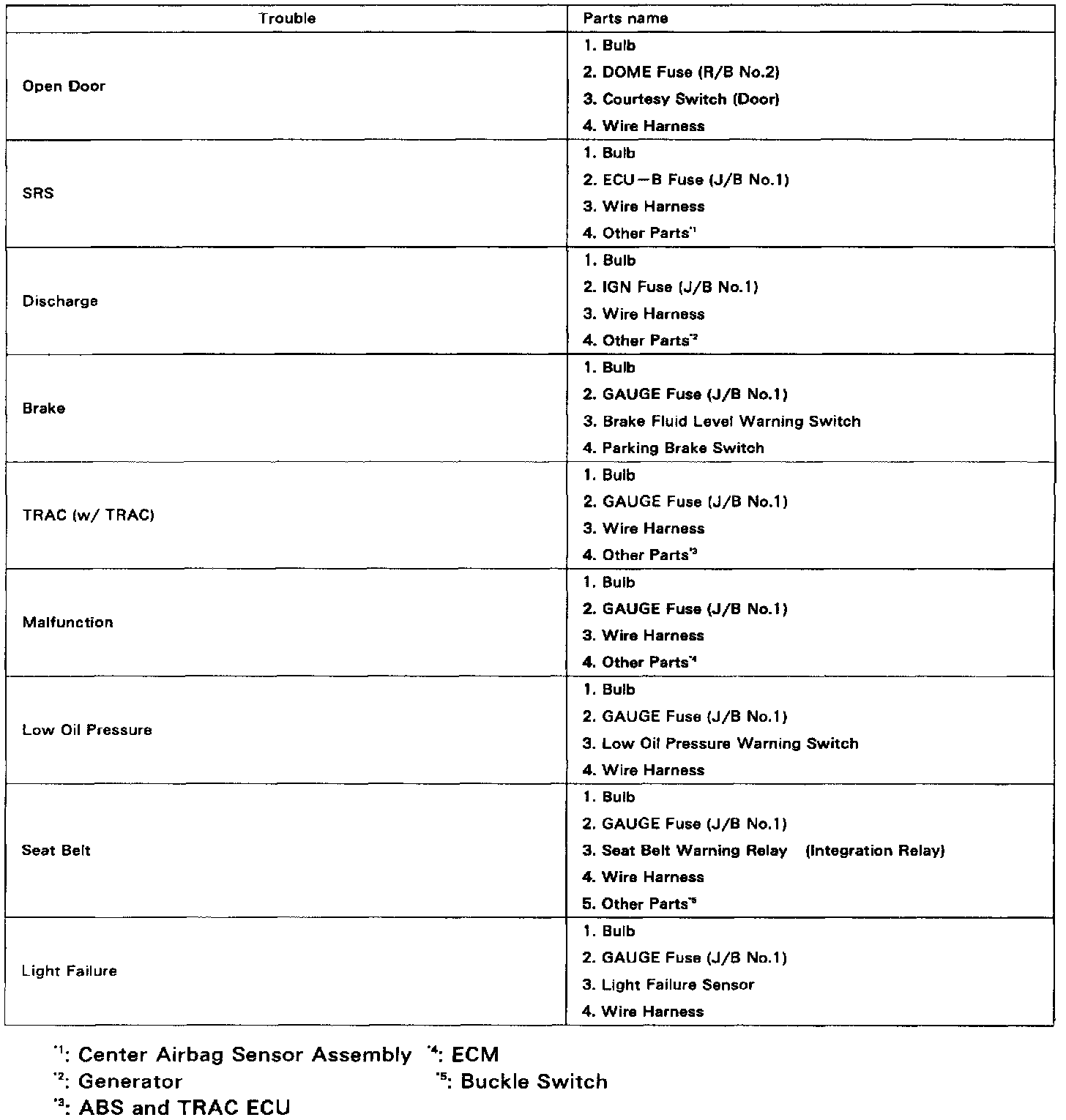

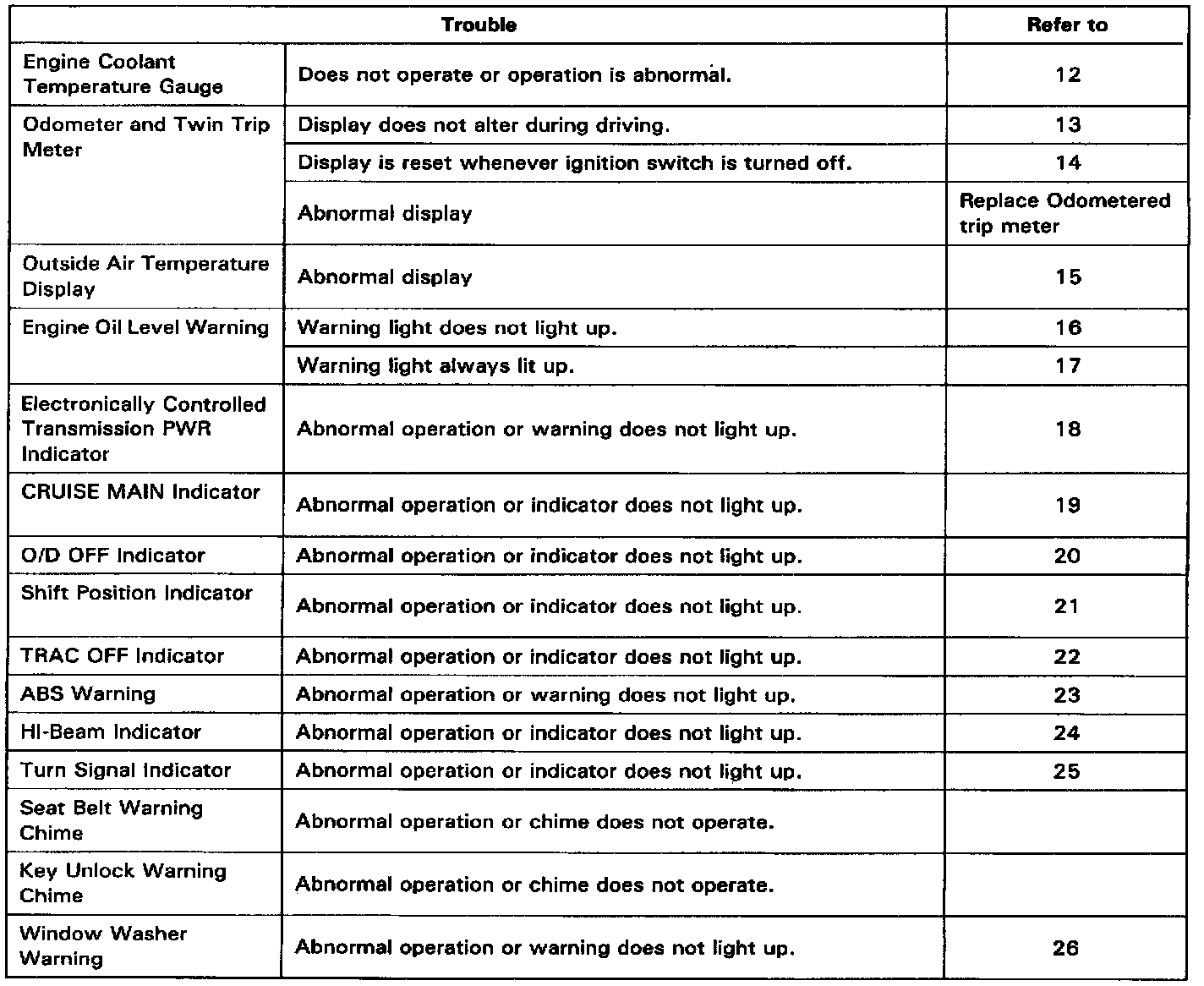

TROUBLESHOOTING/ WARNING LIGHTS AND INDICATOR LIGHT IN METER CLUSTER
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes of the malfunction are shown in the order of their probability. Inspect each part in the order shown and replace the part when it is found to be faulty.
