Combination Meter Assembly

NOTE: For Combination meter sub-assembly testing and inspection, refer to that component.

COMBINATION METER INSPECTION














INSPECT COMBINATION METER WIRING CIRCUIT

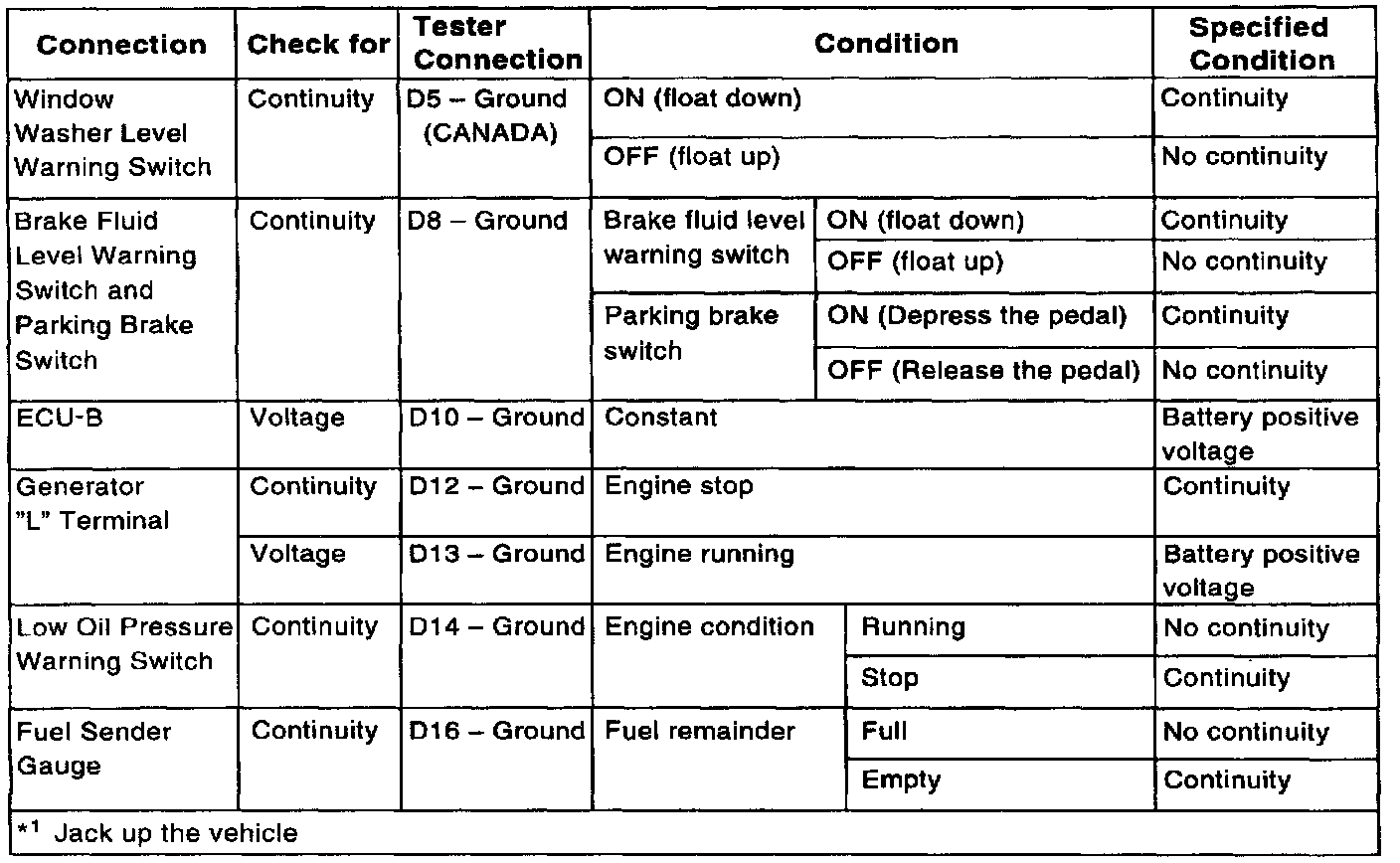

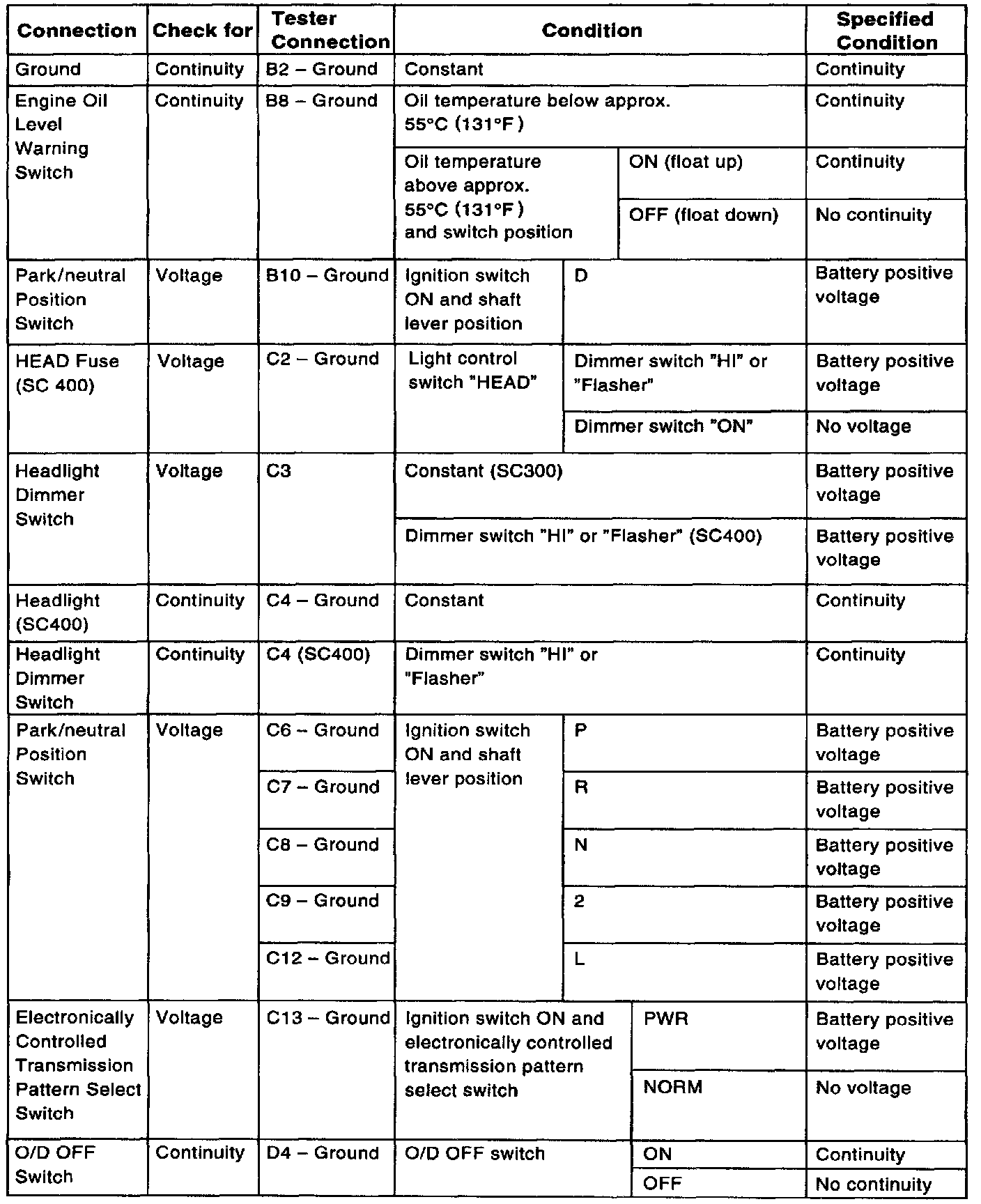

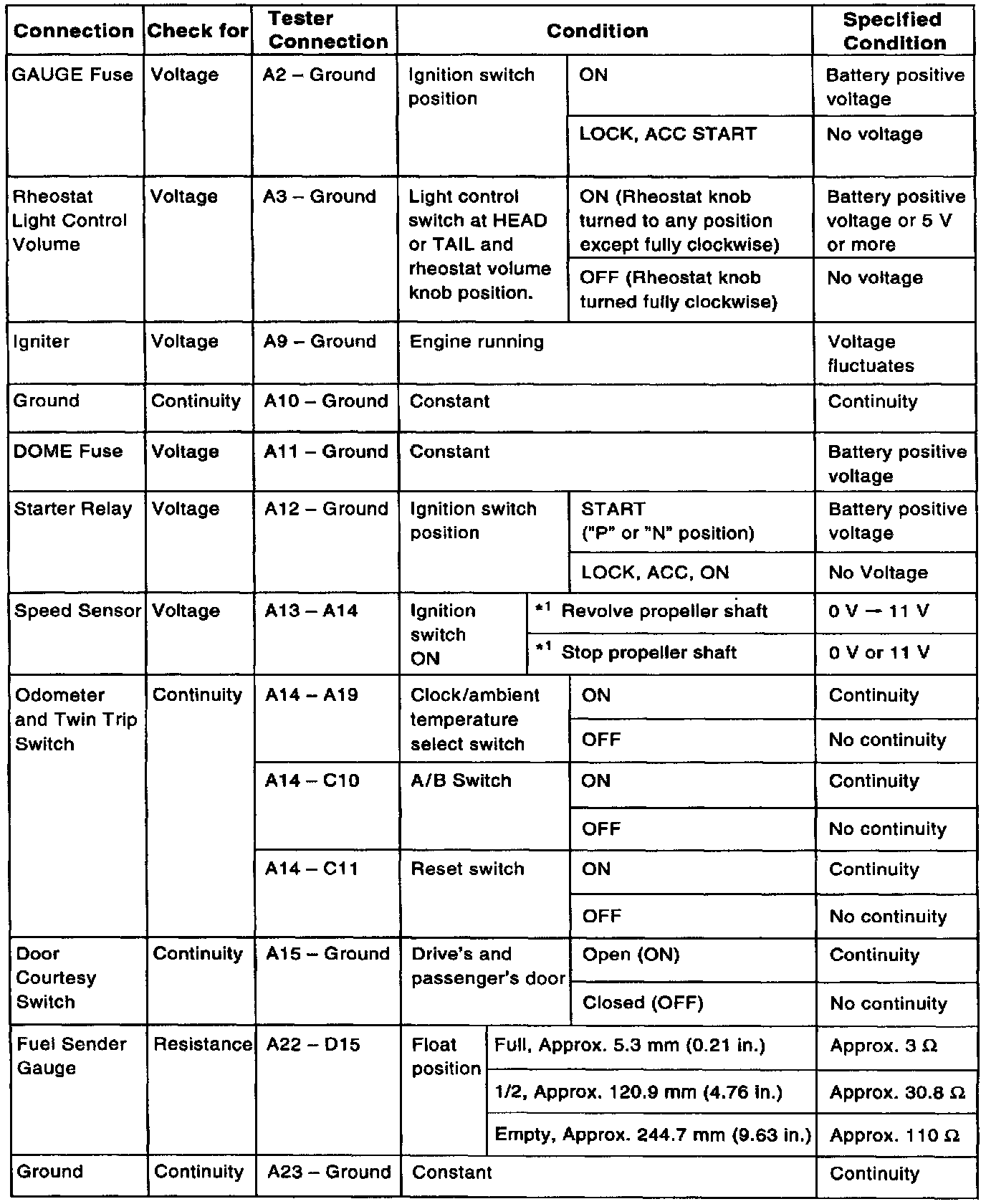

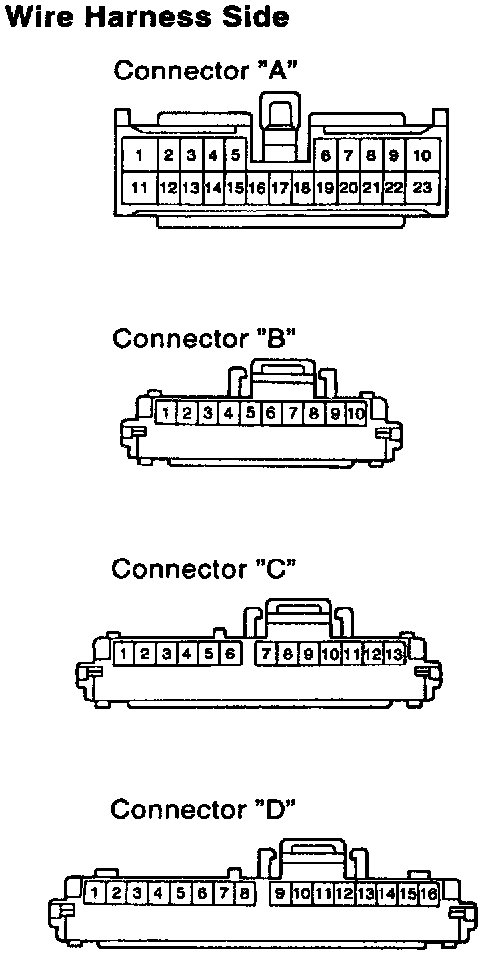

Disconnect connector A, connector B, connector C and connector D from the combination meter and inspect the connectors on the wire harness side as follows. If circuit is not as specified, inspect the circuits connected to other parts.
