Home >> Lexus >> 1997 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Odometer >> Testing and Inspection

Odometer: Testing and Inspection

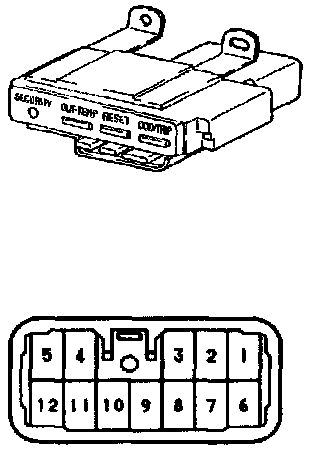

ODOMETER AND TWIN TRIP SWITCH INSPECTION

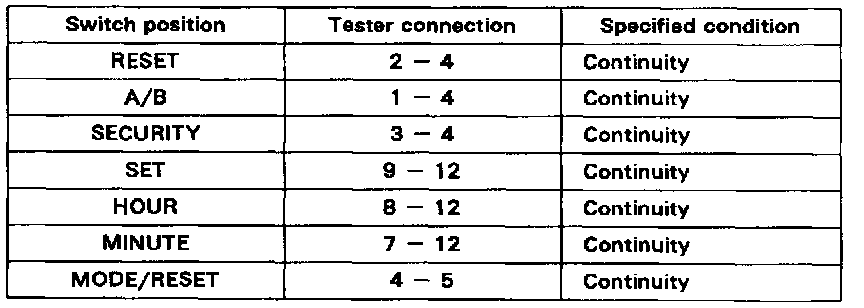

1. INSPECT TRIP SWITCH CONTINUITY
If continuity is not as specified, replace the odometer and twin trip switch.
