Instrument Cluster / Carrier: Service and Repair

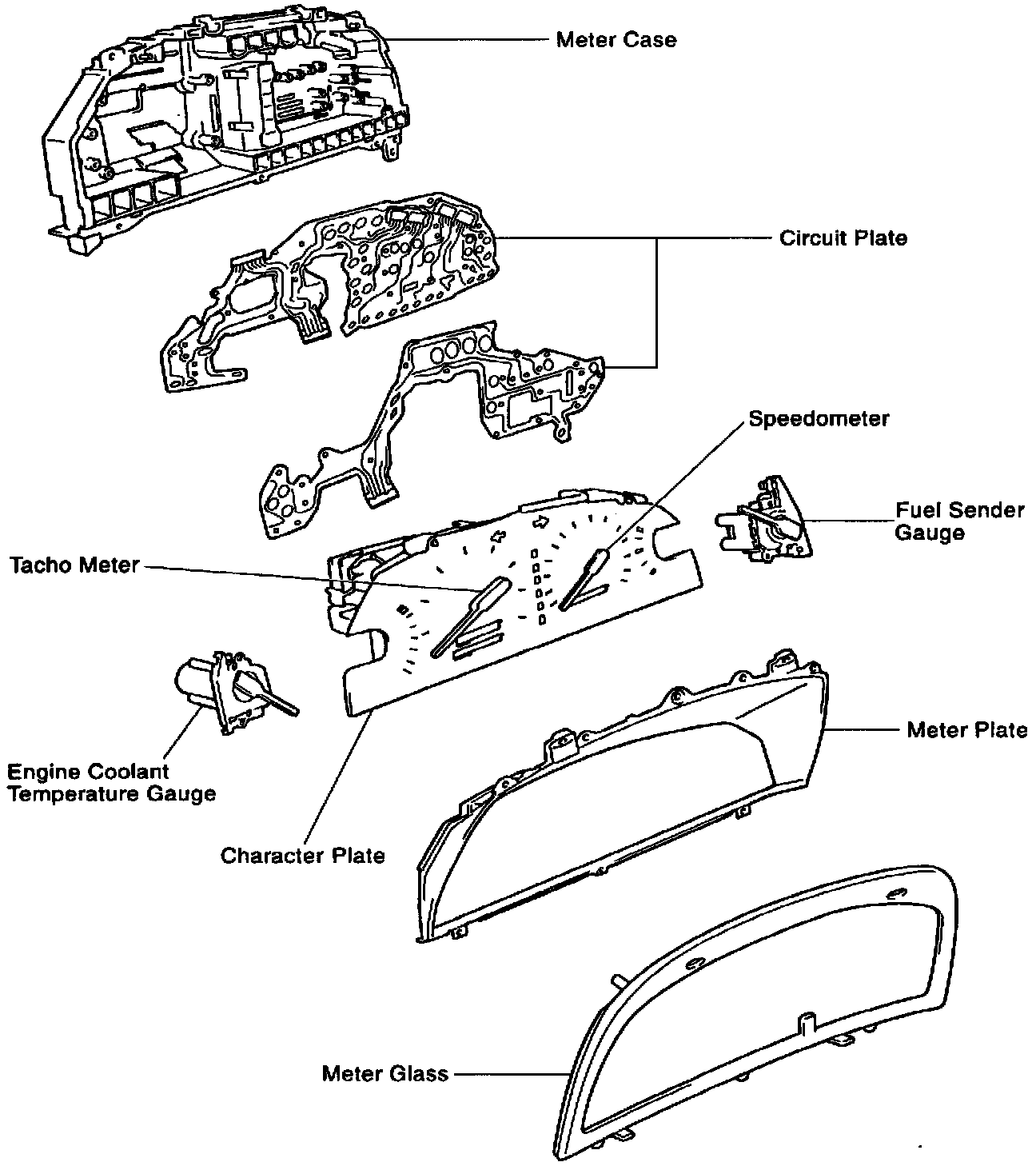

COMBINATION METER ASSEMBLY





1. REMOVE METER GLASS

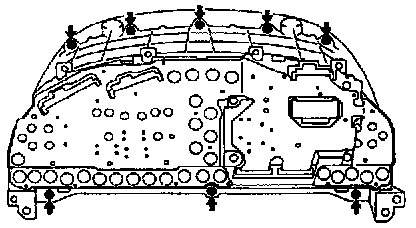

(a) Remove the 8 screws.
(b) Remove the character plate from the meter plate.





2. REMOVE METER PLATE
(a) Remove the 4 screws.
(b) Remove the meter plate from the meter case.

3. REMOVE METER CIRCUIT PLATE

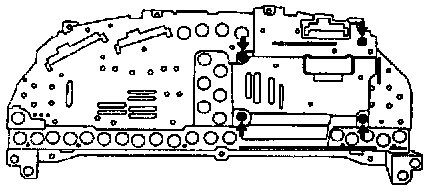

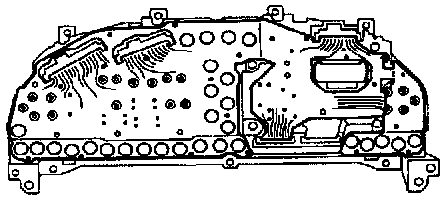

(a) Remove the 19 screws.
(b) Disconnect the 2 connectors from the meter circuit plate.

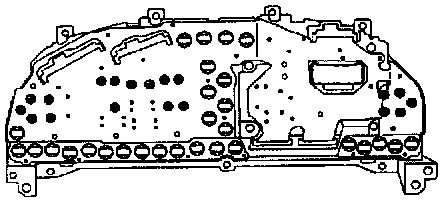

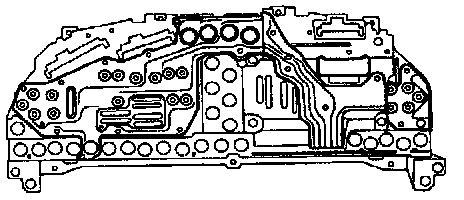

(c) Remove the bulbs from the meter circuit plate.








(d) Remove the 2 meter circuit plate.





4. REMOVE CHARACTER PLATE

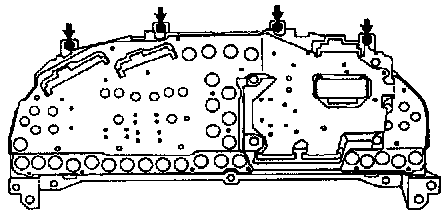

(a) Remove the 4 screws from the meter case.





5. REMOVE FUEL AND TEMPERATURE GAUGE

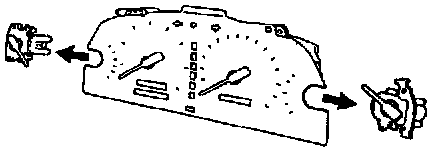

Release the 4 lugs and separate the 2 gauges from the meter lens.

COMBINATION METER ASSEMBLY
To assemble, follow the disassemble procedure in reverse.
