Door/Trunk Ajar Indicator/Lamp: Testing and Inspection

OPEN DOOR WARNING INSPECTION

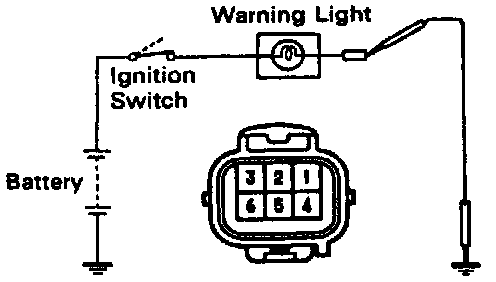

1. INSPECT WARNING LIGHT
Disconnect the connector from the door courtesy switch and ground terminal 3 on the wire harness side connector and check that the warning light lights up.
If the warning light does not light up, inspect the bulb or wire harness.

2. INSPECT COURTESY SWITCH
