Inspection of Refrigerant Volume

1. RUN ENGINE AT IDLE SPEED

2. OPERATE A/C AT MAXIMUM COOLING FOR A FEW MINUTES

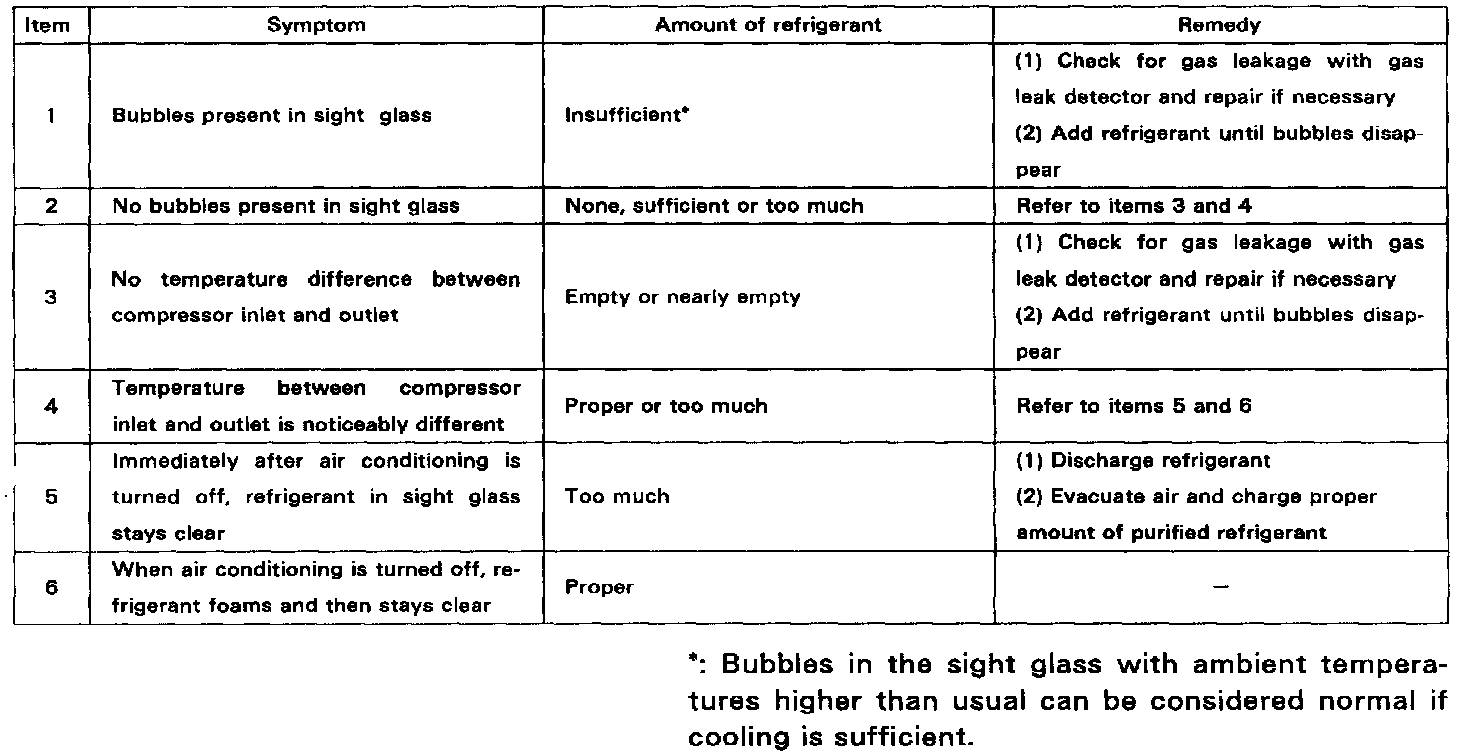

3. INSPECT AMOUNT OF REFRIGERANT
Observe the sight glass on the liquid tube.

REFRIGERANT CHARGE VOLUME
Specified amount:
950 ± 50 g (33.51 ± 1.76 oz)
