IG Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the air conditioning control assembly (contains the A/C control assembly) and servomotor, etc.

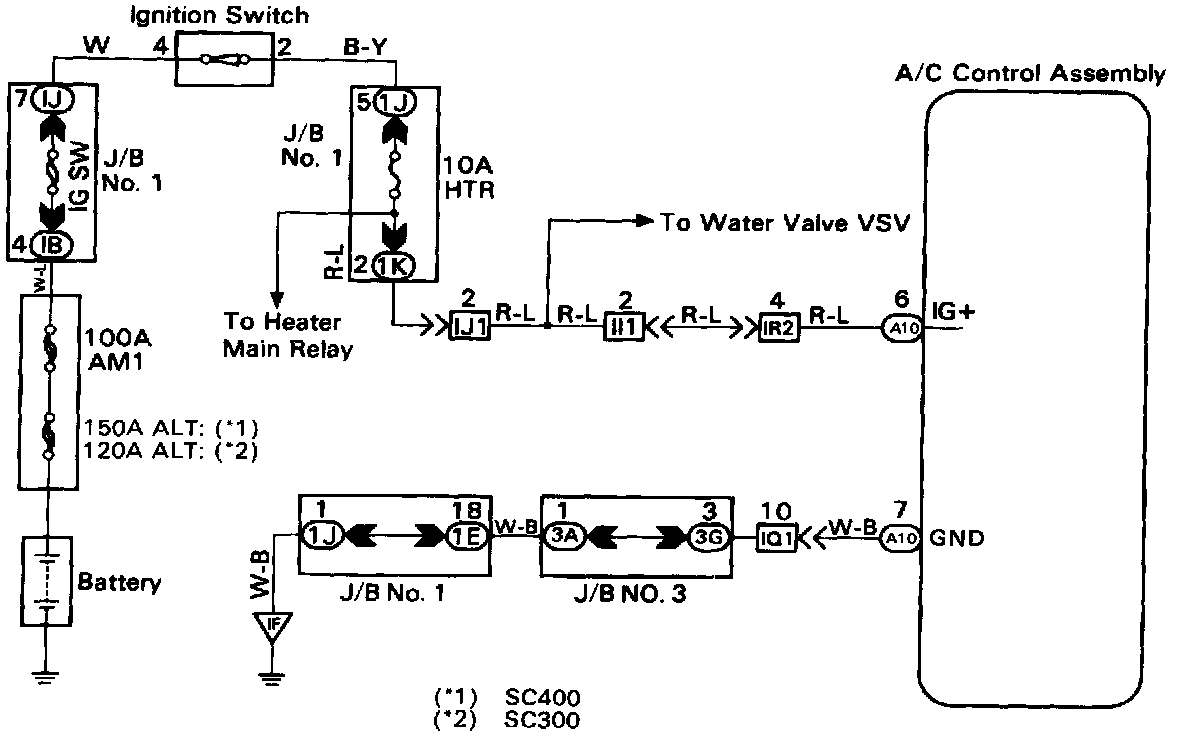

WIRING DIAGRAM

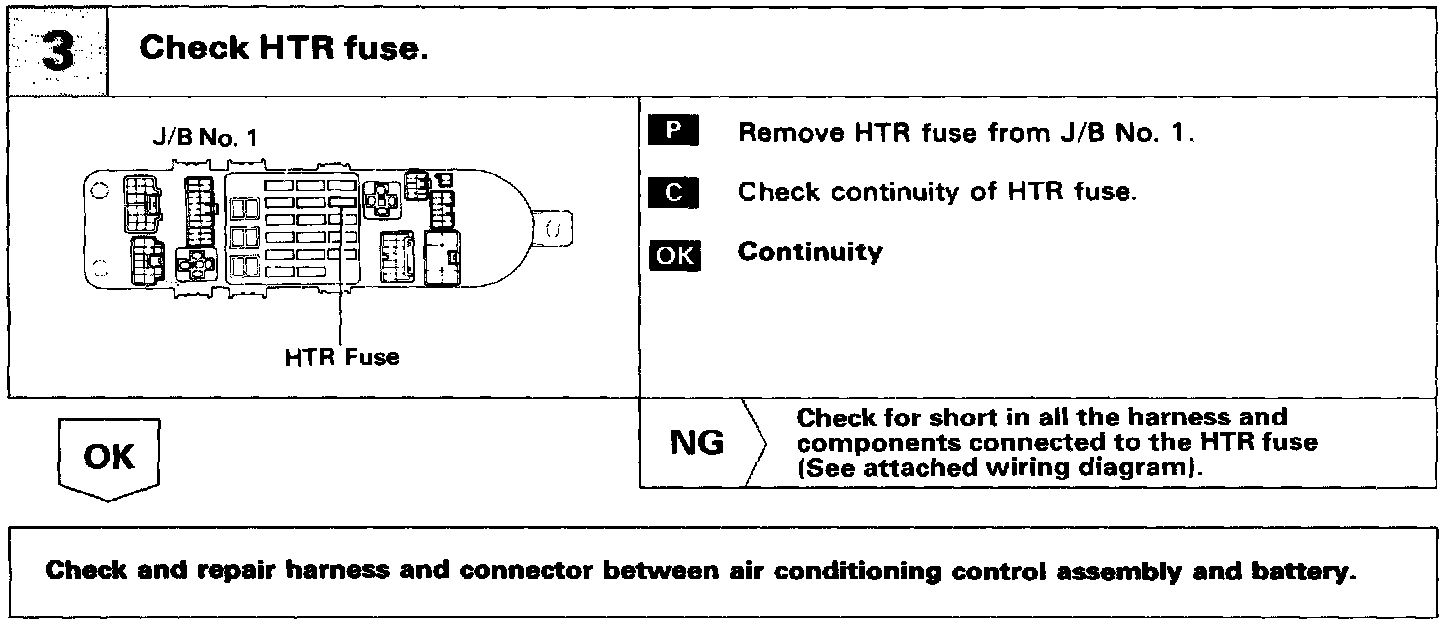

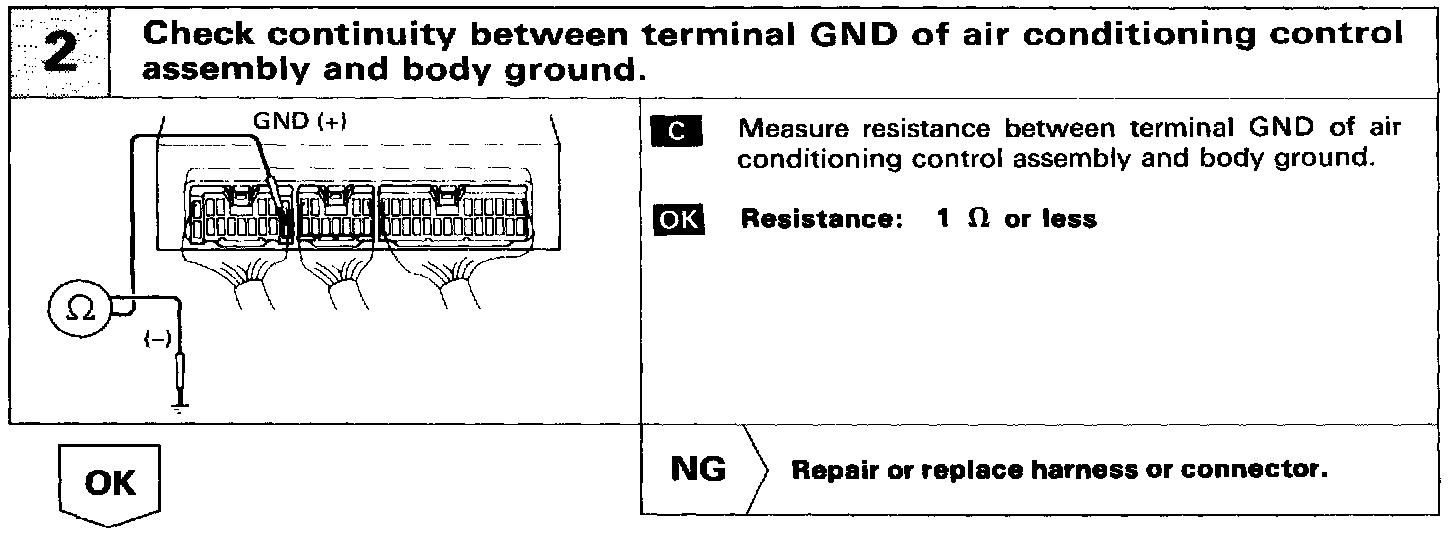

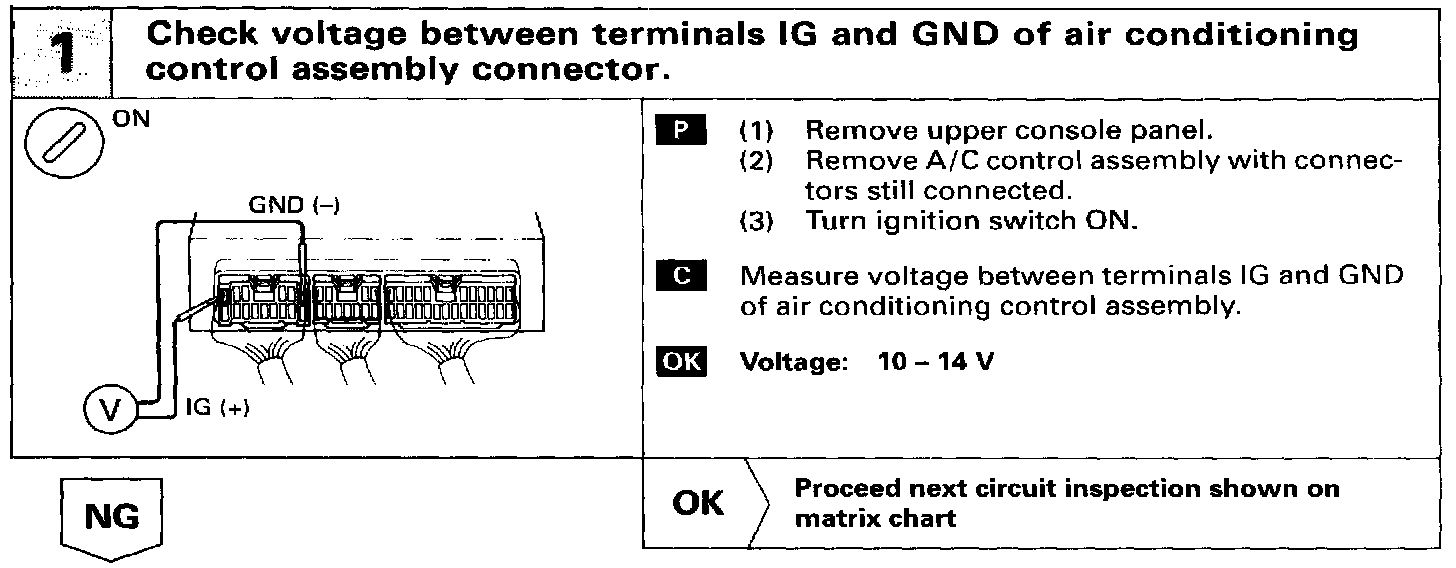

INSPECTION PROCEDURE
