Compressor Magnetic Clutch Circuit

CIRCUIT DESCRIPTION
The air conditioning control assembly outputs the magnetic clutch ON signal from terminal MGC to the ECM.

When the ECM receives this signal, it sends a signal from terminal ACMG and switches the air conditioning magnetic clutch relay on, thus turning on the air conditioning compressor magnetic clutch. The air conditioning control assembly also monitors at terminal A/C IN whether or not power is being supplied to the magnetic clutch.

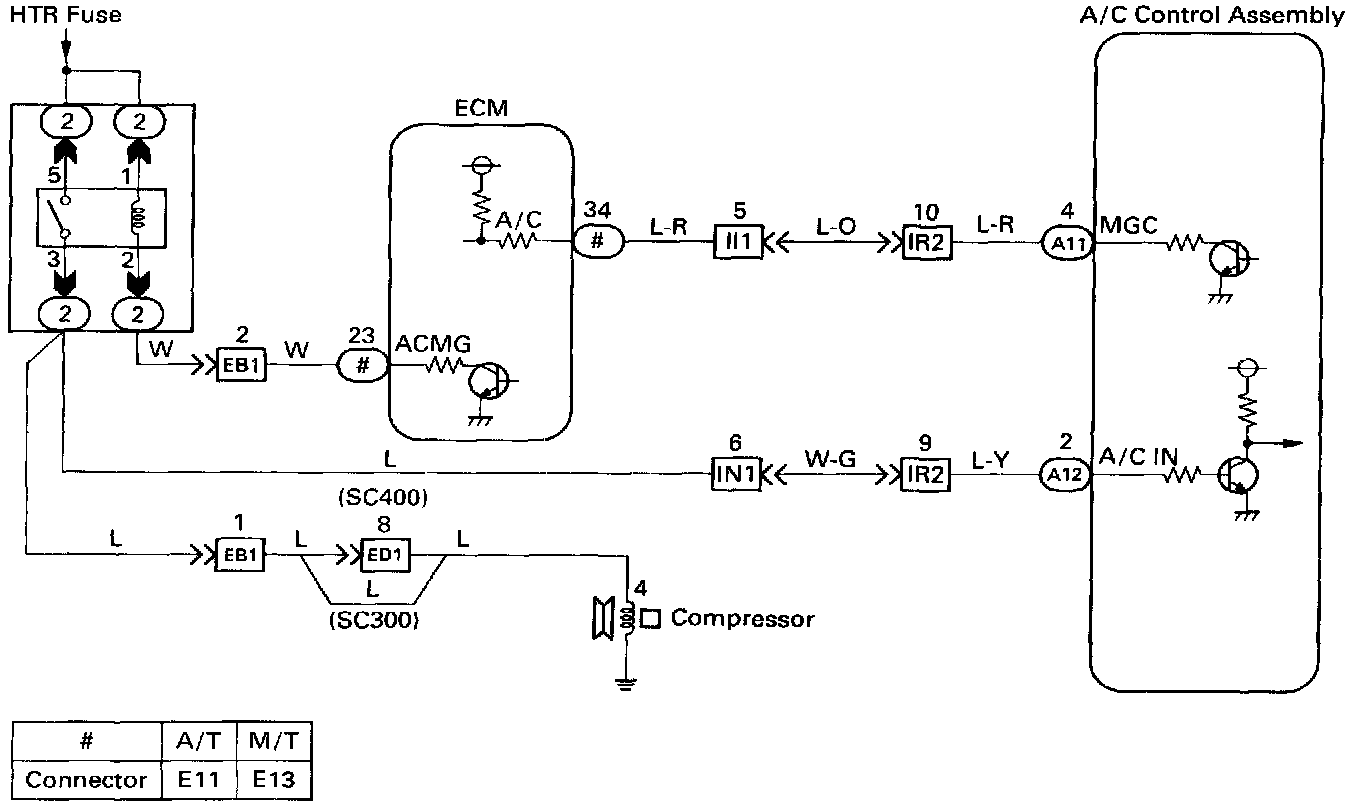

WIRING DIAGRAM

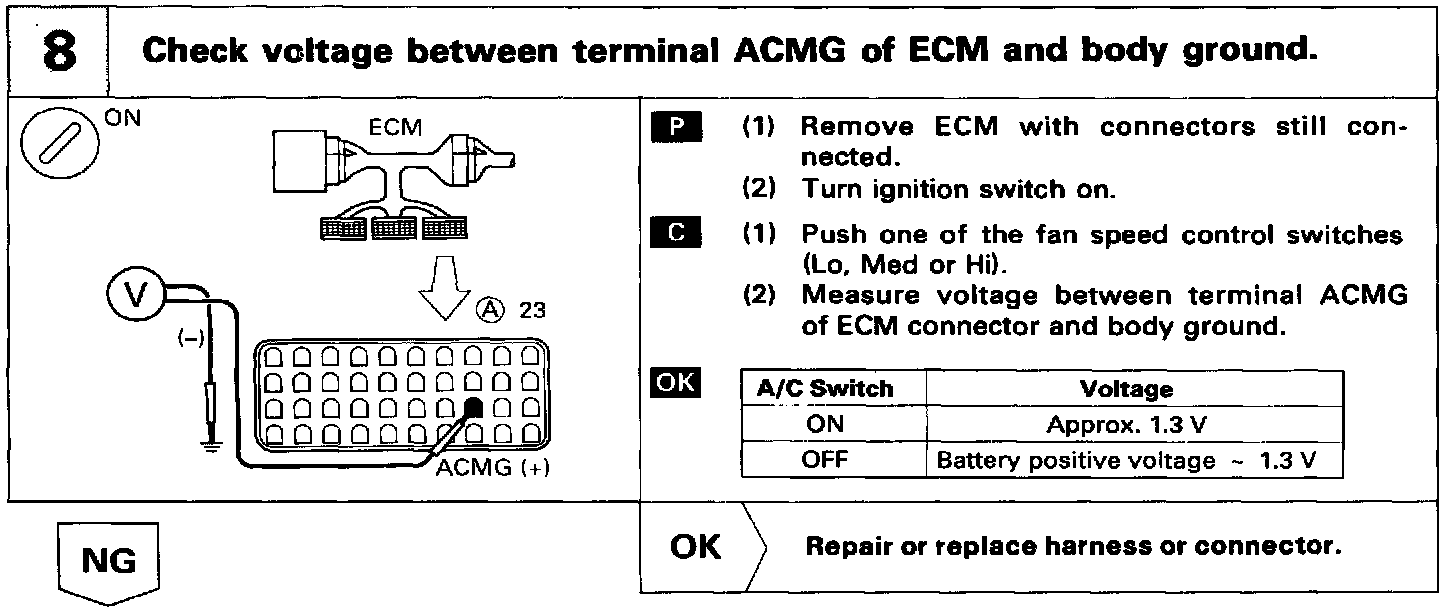

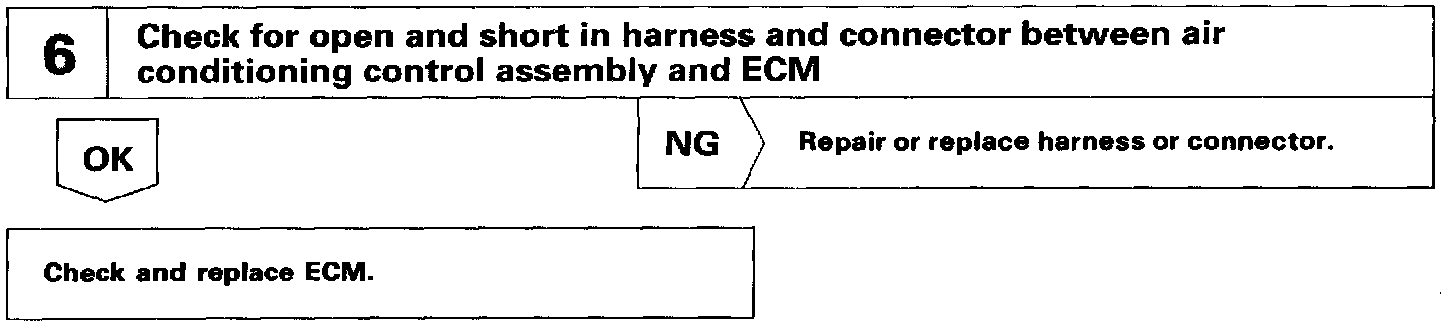

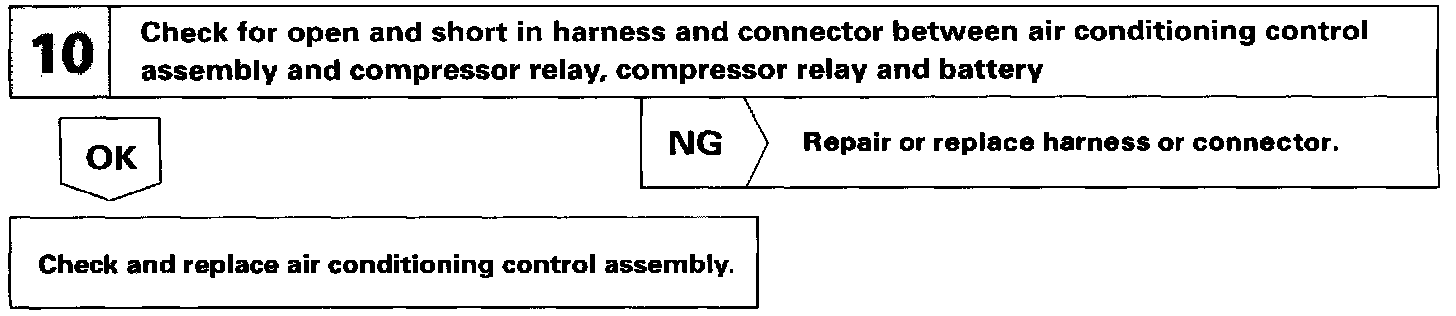

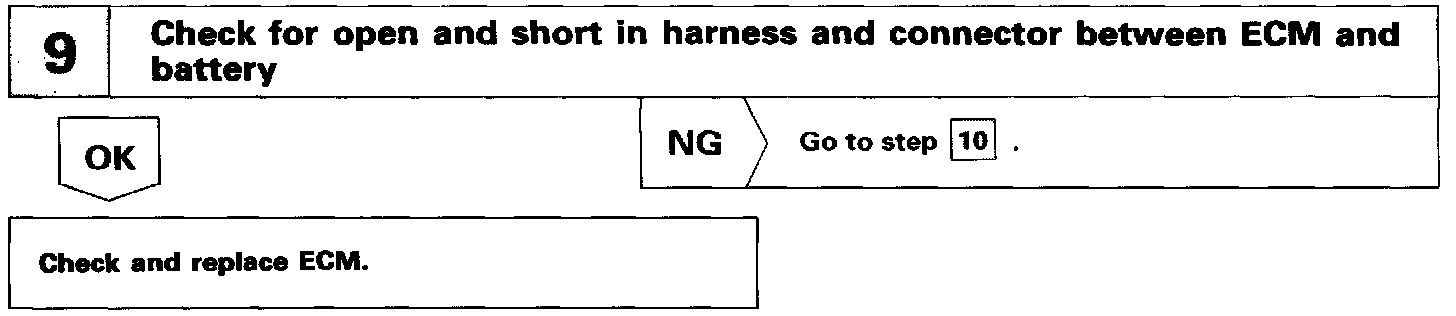

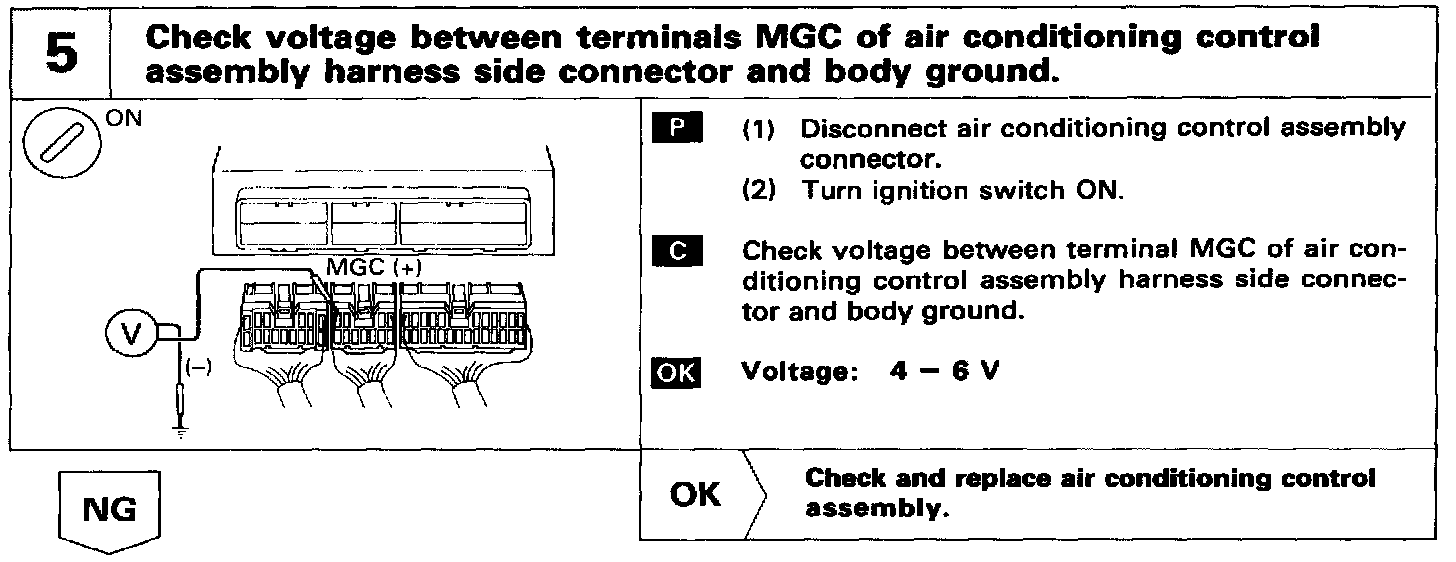

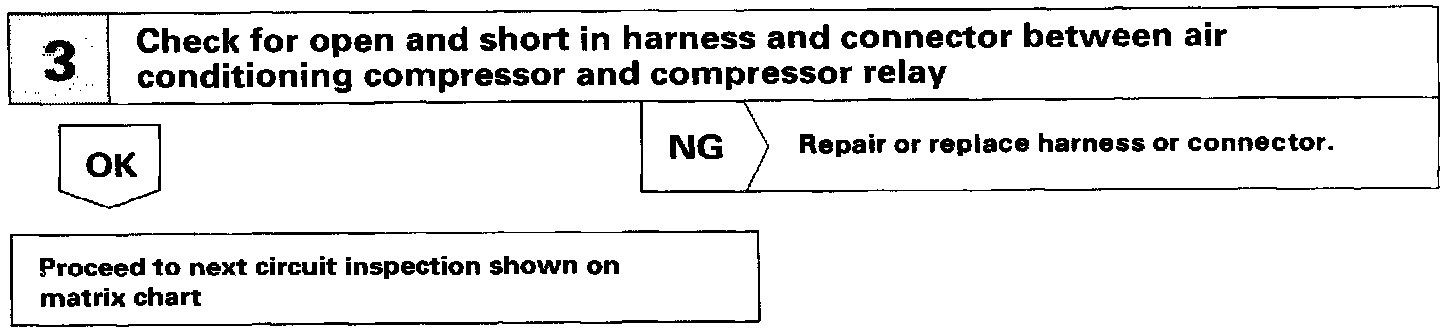

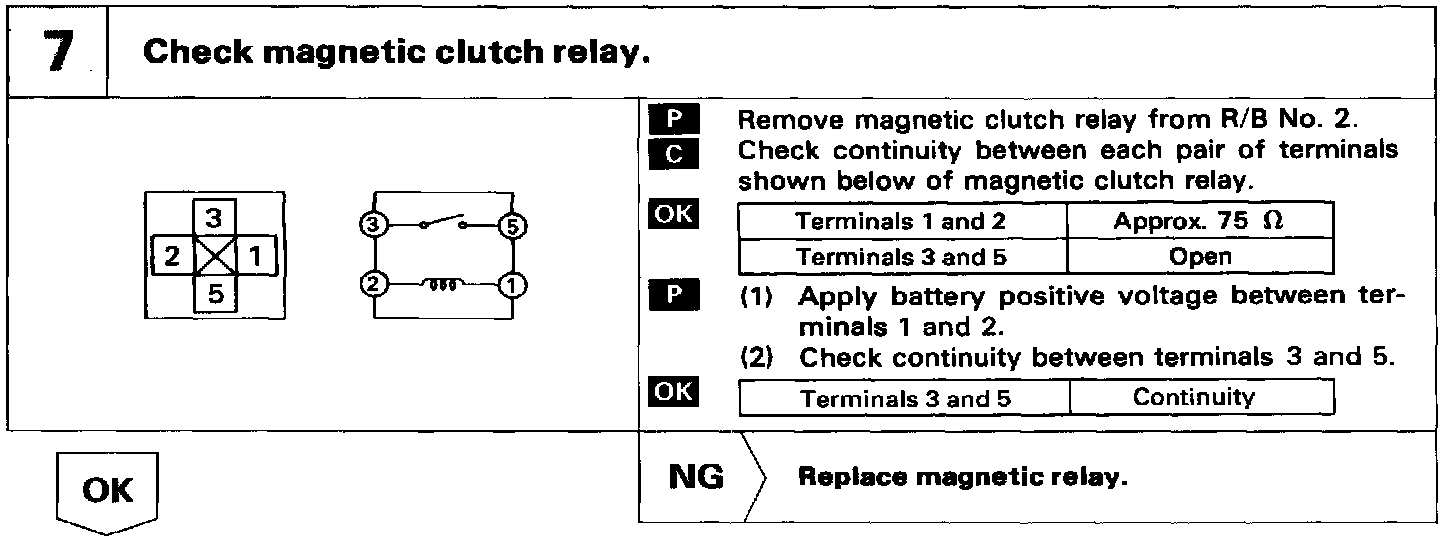

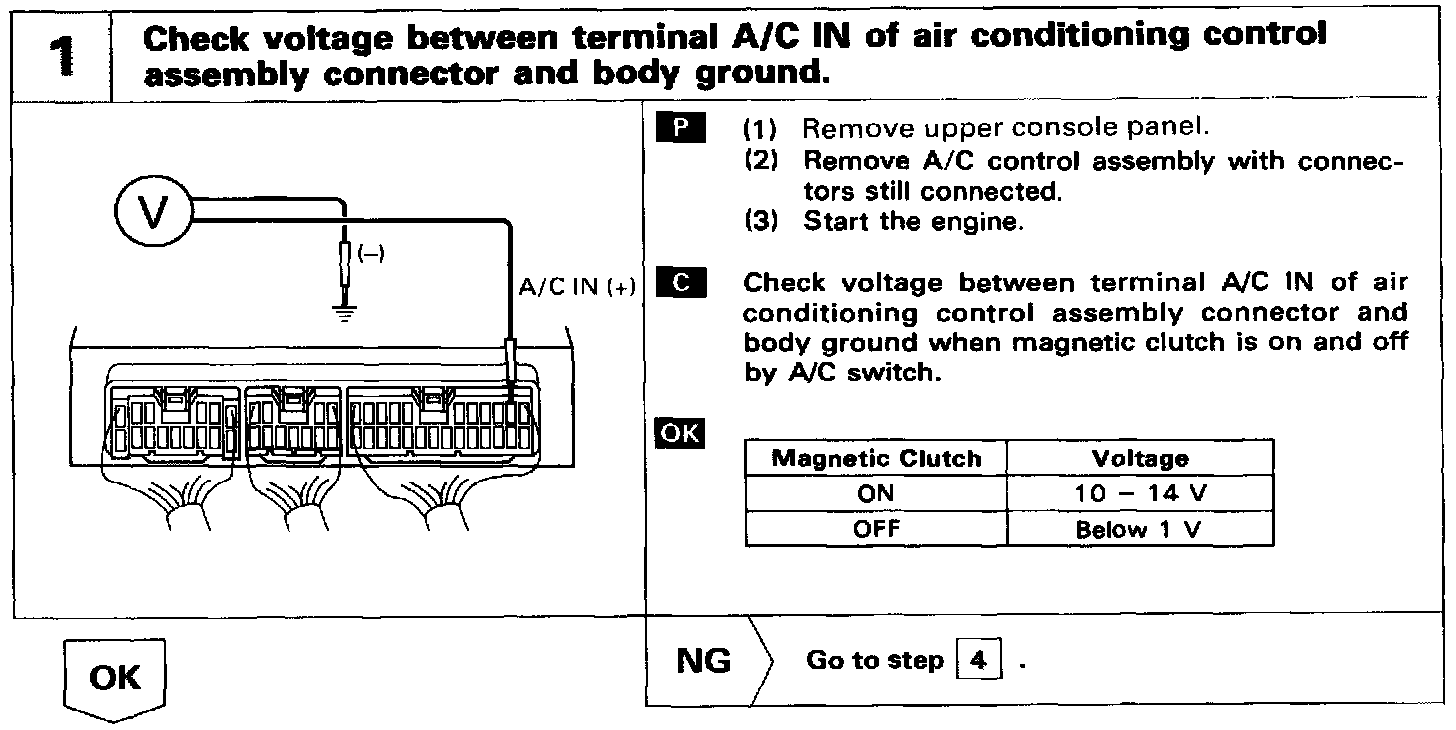

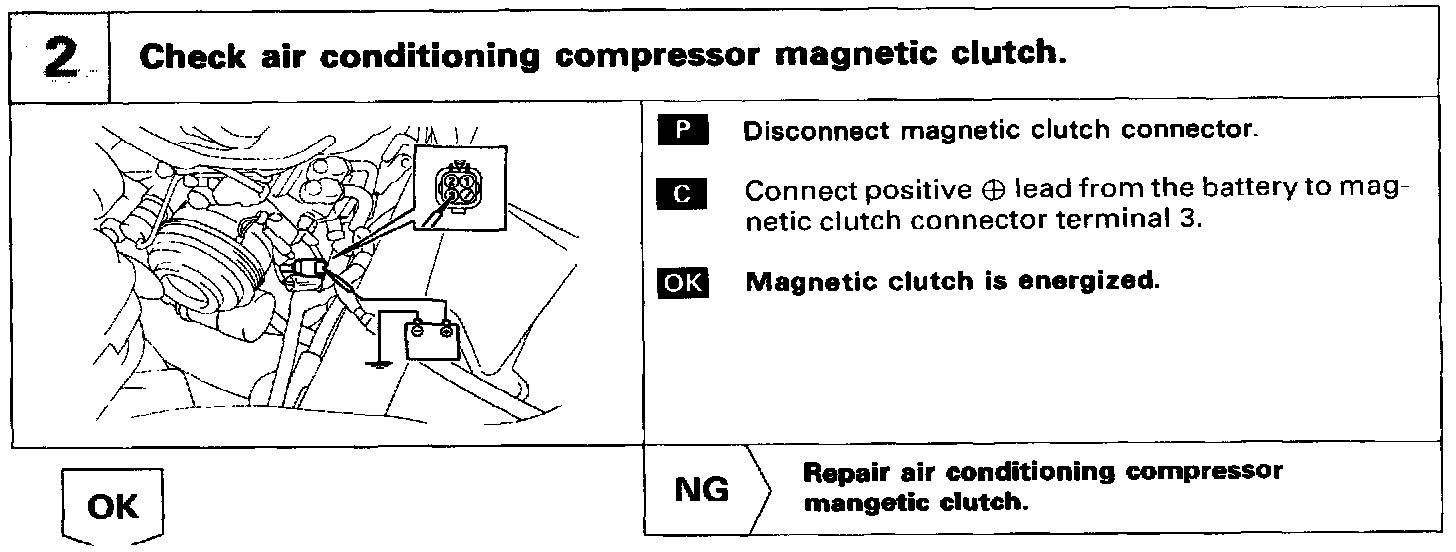

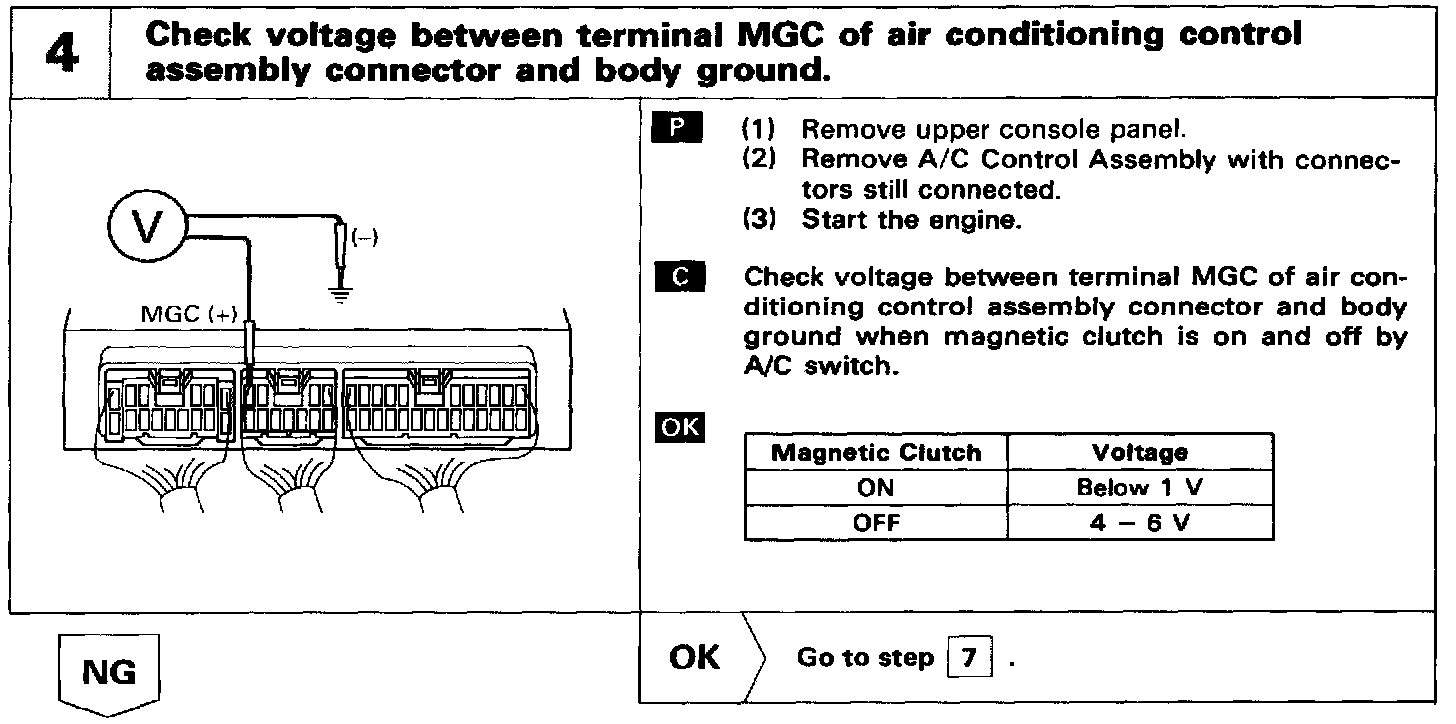

INSPECTION PROCEDURE
