Blower Motor Circuit

CIRCUIT DESCRIPTION
This is the power source for the blower motor.

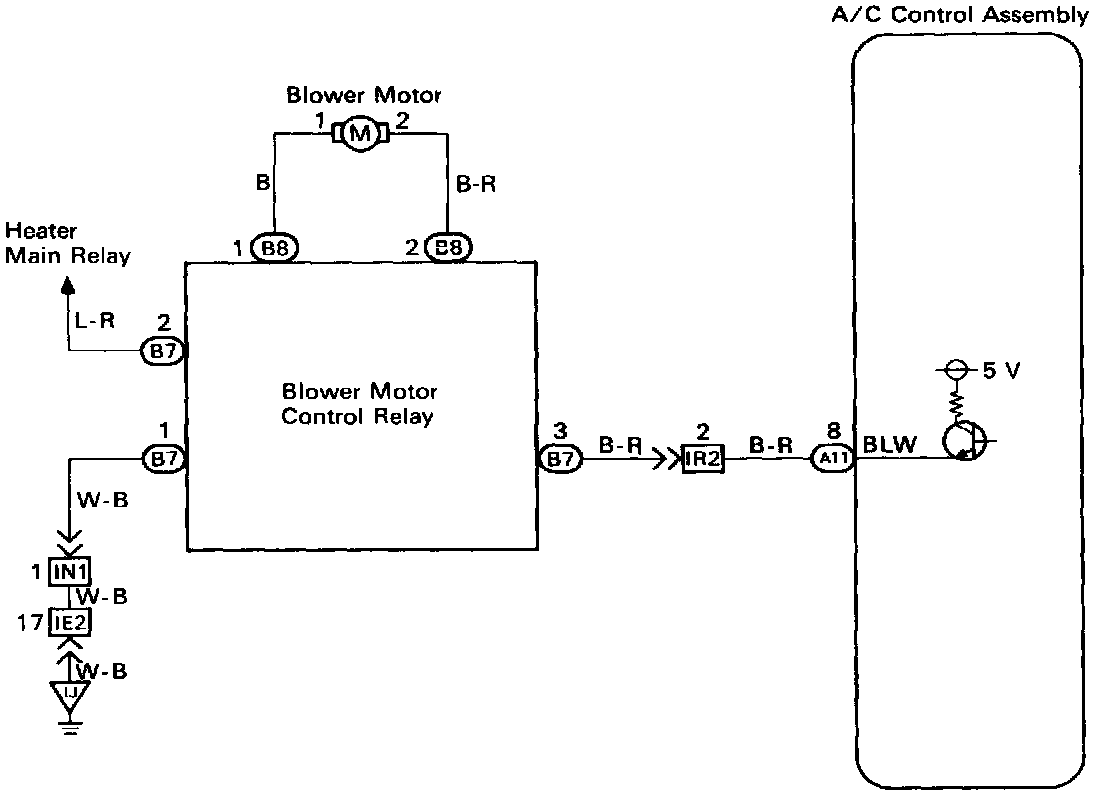

WIRING DIAGRAM

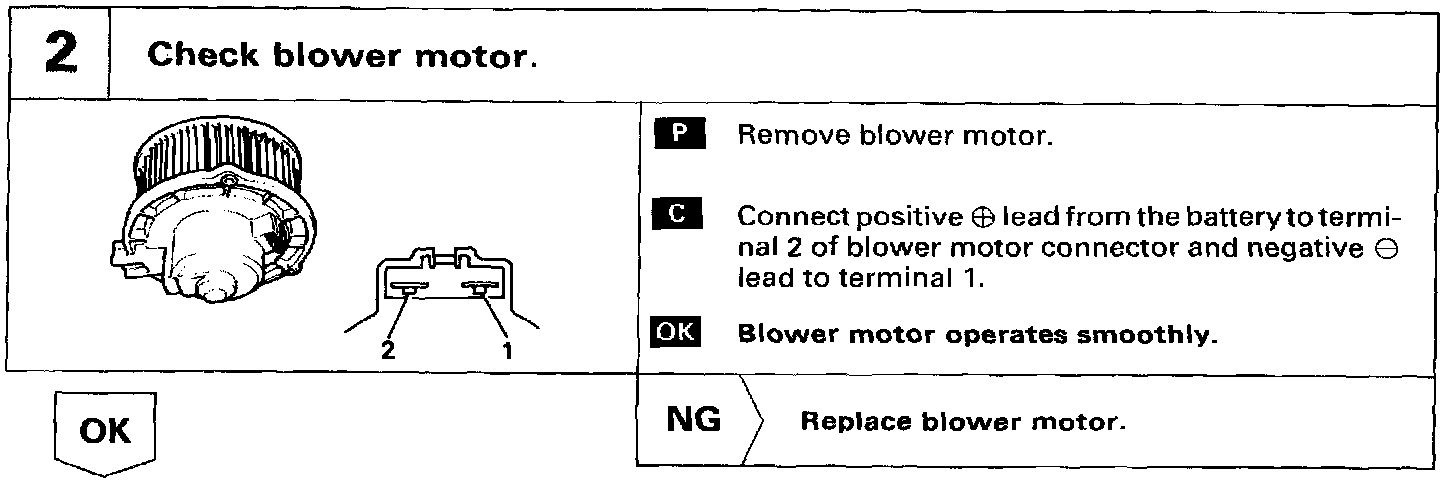

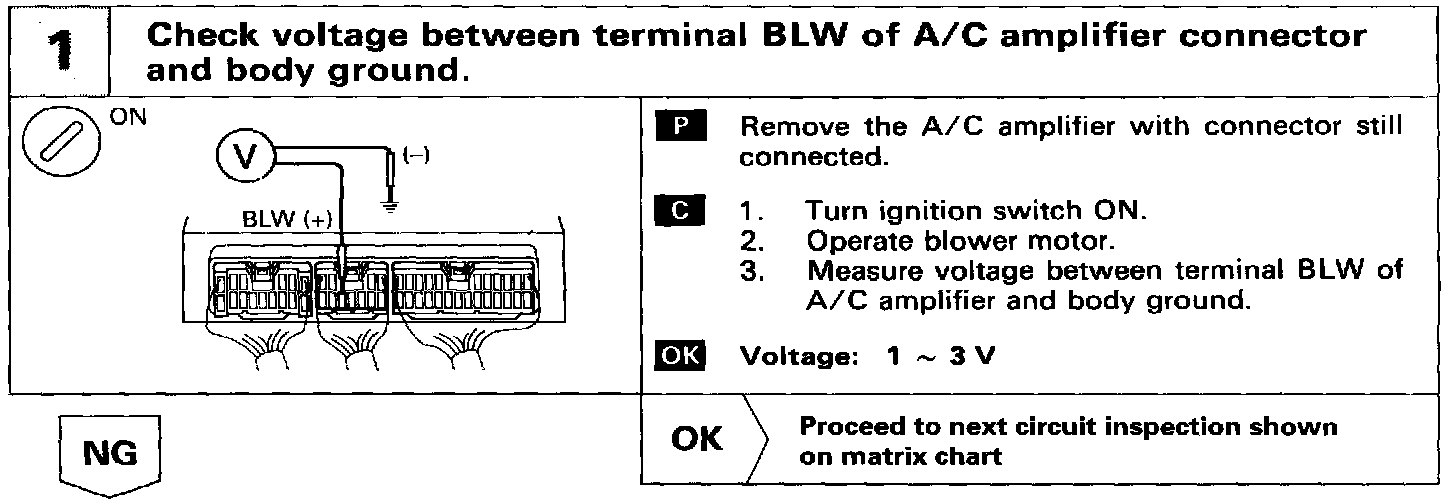

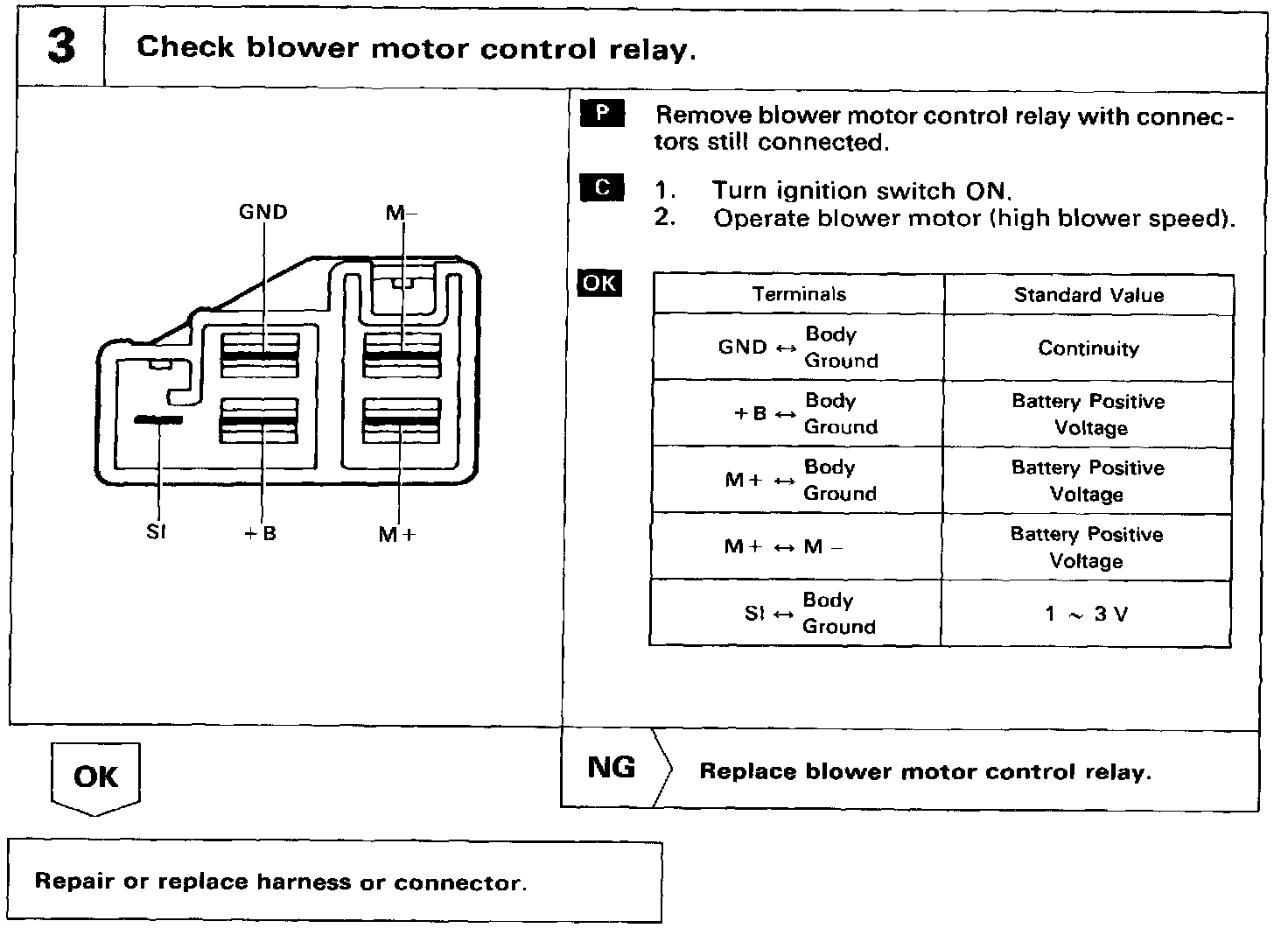

INSPECTION PROCEDURE
