Back-Up Power Source Circuit

CIRCUIT DESCRIPTION
This is the backup power source for the air conditioning control assembly. Power is supplied even when the ignition switch is off and is used for diagnostic trouble code memory, etc.

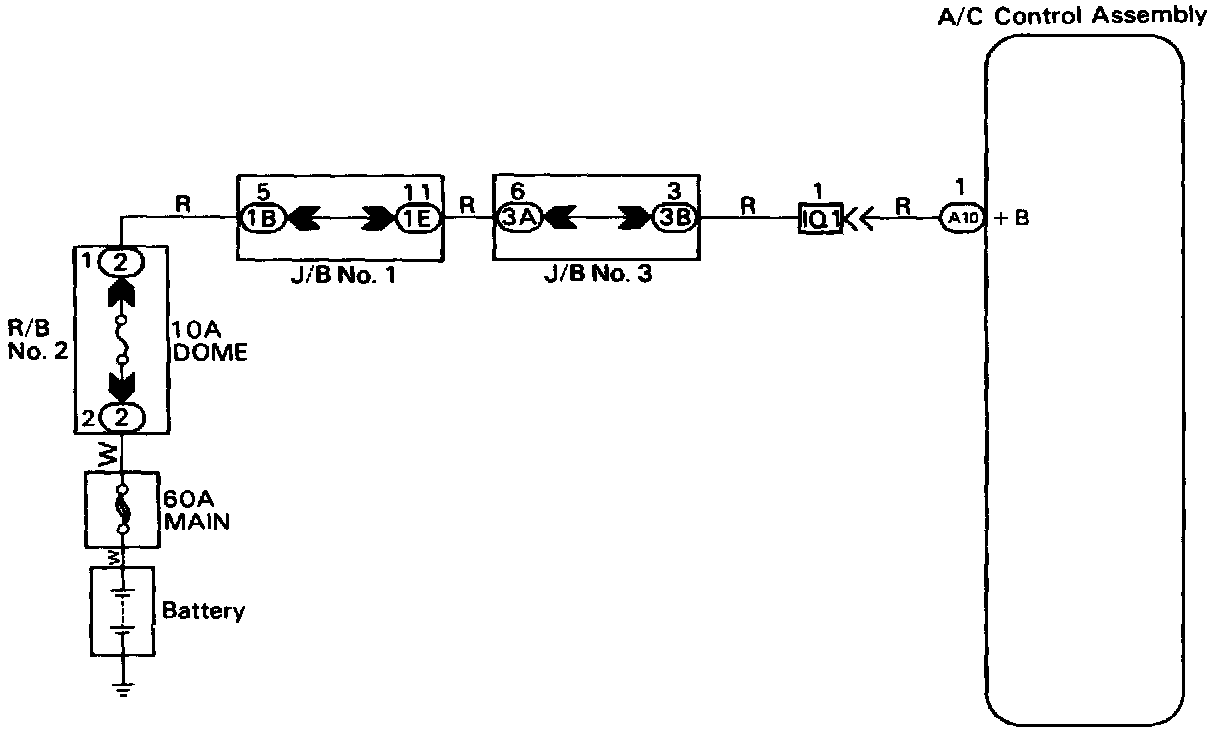

WIRING DIAGRAM

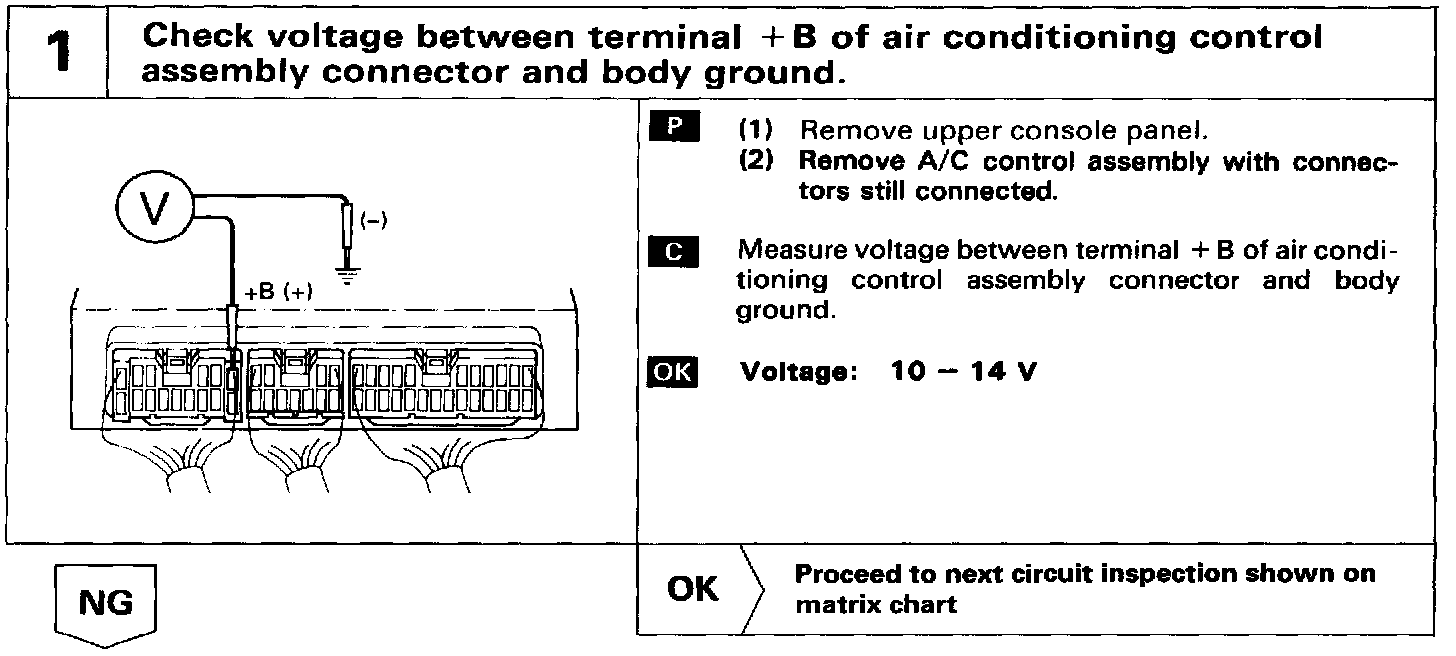

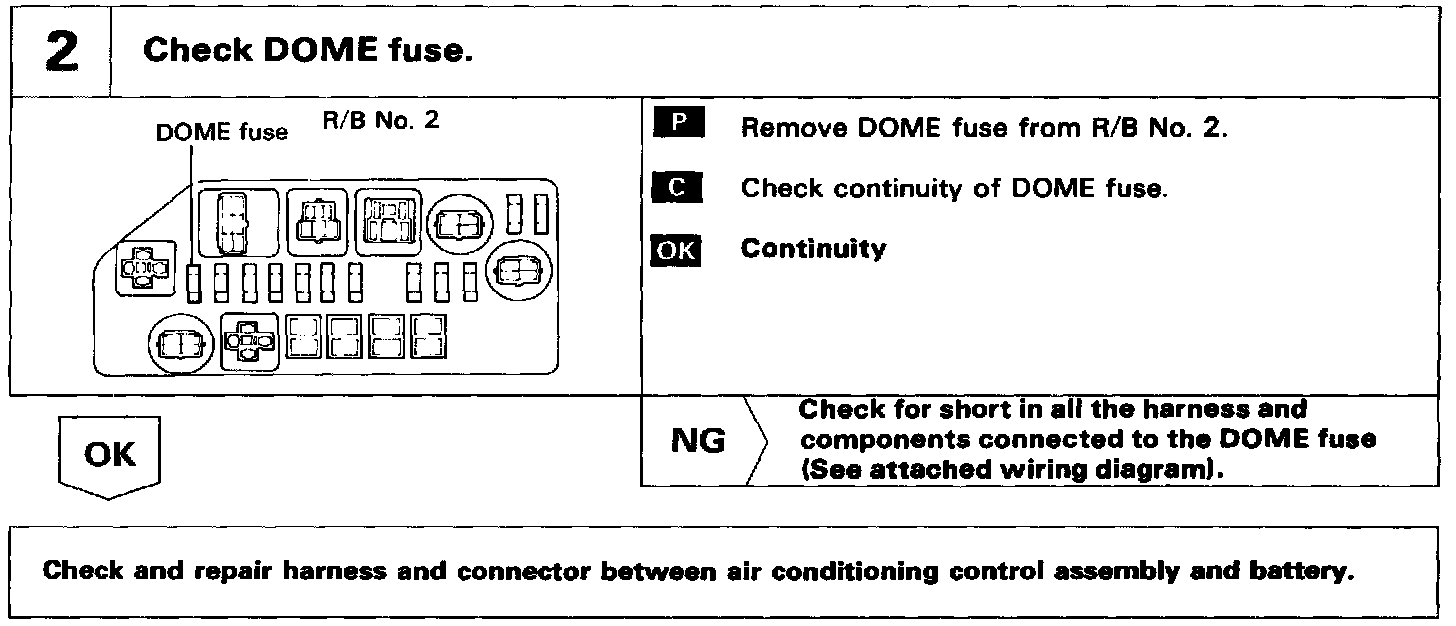

INSPECTION PROCEDURE
