Home >> Lexus >> 1997 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> ACC Power Source Circuit

ACC Power Source Circuit

CIRCUIT DESCRIPTION
This circuit supplies power to the air conditioning control assembly (contains the A/C control assembly).

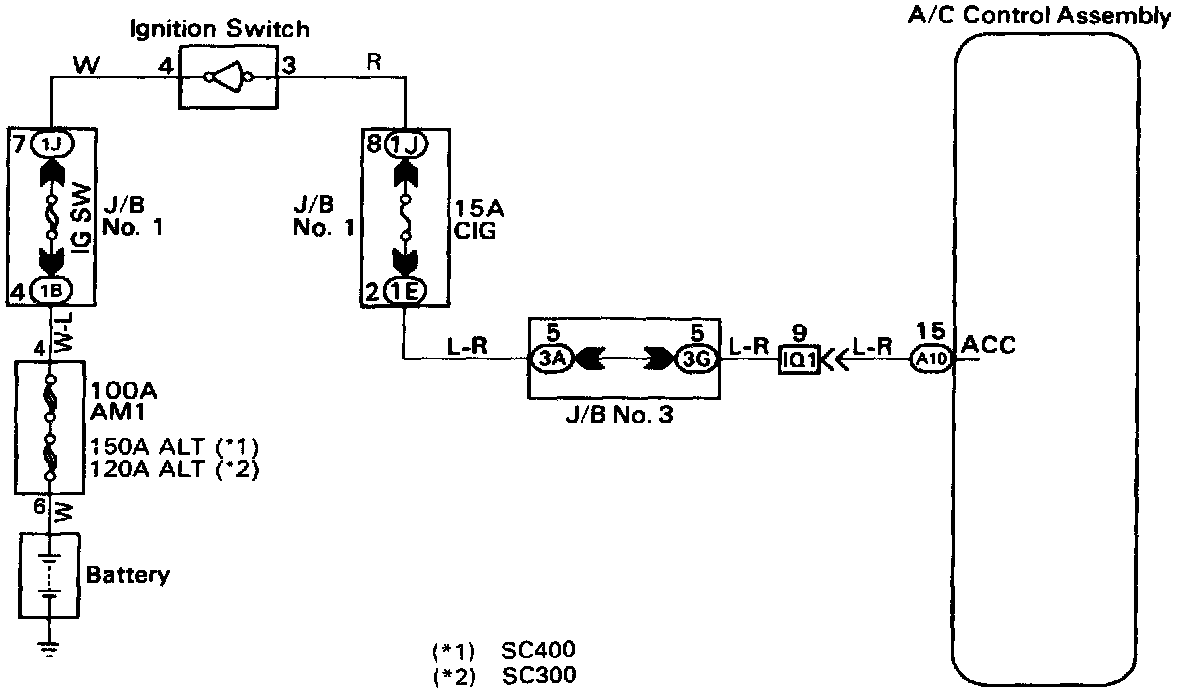

WIRING DIAGRAM

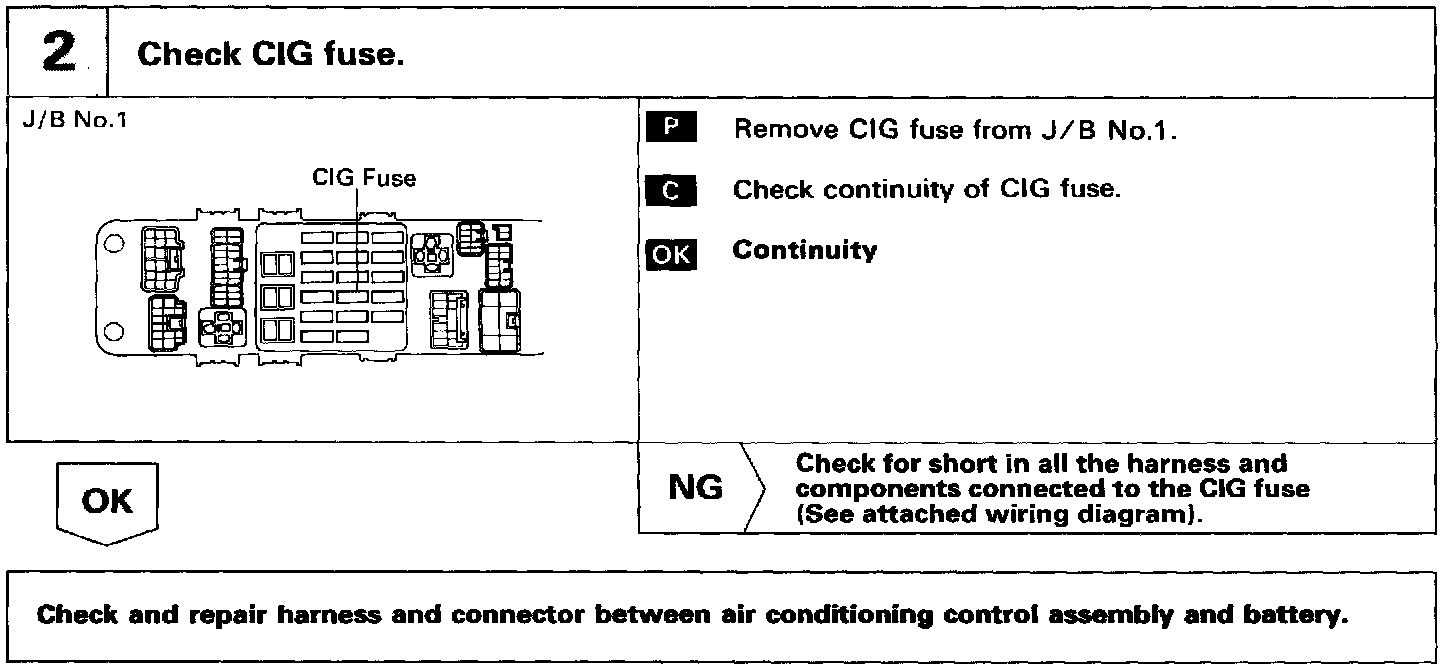

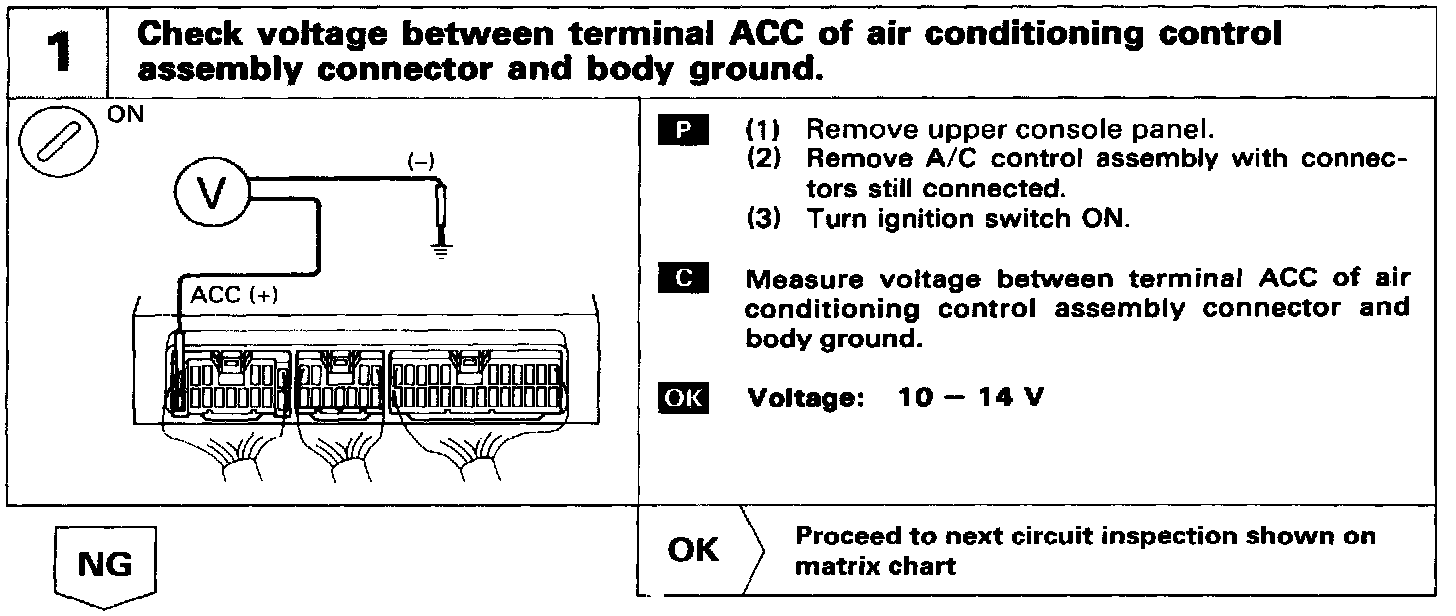

INSPECTION PROCEDURE
