Air Outlet Servomotor

AIR OUTLET SERVOMOTOR REMOVAL
1. REMOVE THESE PARTS:
(a) No.1 under cover
(b) No.1 lower finish panel
(c) Lower finish panel LH

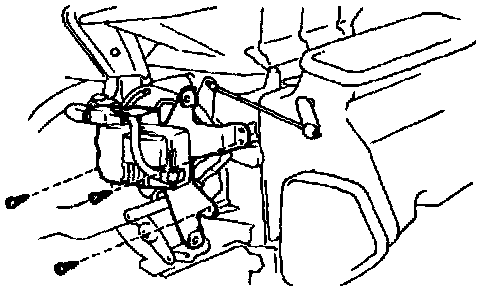

2. REMOVE SERVOMOTOR
(a) Disconnect the connector.
(b) Remove the 3 screws and the servomotor.

AIR OUTLET SERVOMOTOR INSTALLATION
Installation is in the reverse order at removal.
