Air Mix Control Motor

AIR MIX SERVOMOTOR REMOVAL




1. REMOVE A/C UNIT
Service and Repair

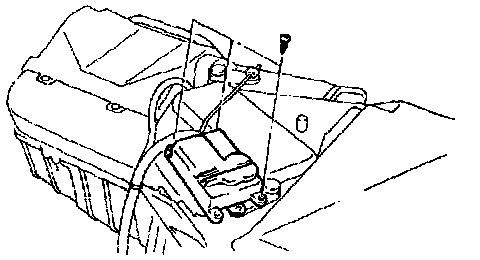

2. REMOVE SERVOMOTOR
(a) Disconnect the connector.
(b) Remove the 3 screws and the servomotor.

AIR MIX SERVOMOTOR INSTALLATION
Installation is in the reverse order at removal.
