Air Inlet Servomotor

AIR INLET SERVOMOTOR REMOVAL





1. REMOVE THESE PARTS:
(a) No.2 under cover
(b) Glove compartment assembly
(c) Lower finish panel RH

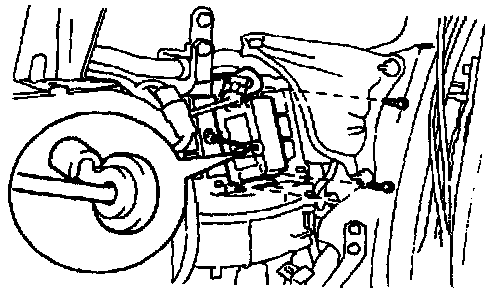

2. REMOVE SERVOMOTOR
(a) Disconnect the connector.
(b) Disconnect the control link.
(c) Remove the 3 screws and the servomotor.

AIR INLET SERVOMOTOR INSTALLATION
Installation is in the reverse order of removal.
