Hydraulic Tensioner

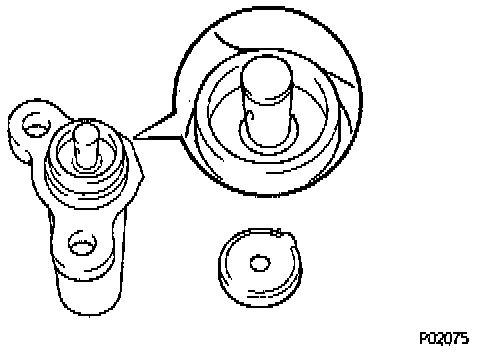

1. Visually check tensioner for oil leakage.

NOTE:
- If there is only the faintest trace of oil on the seal on the push rod side, the tensioner is all right.
- If leakage is found, replace tensioner.

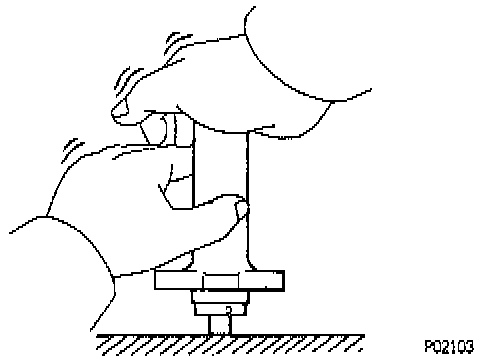

2. Hold the tensioner with both hands and push the push rod strongly against the floor or wall to check that it doesn't move.
- If the push rod moves, replace the tensioner.

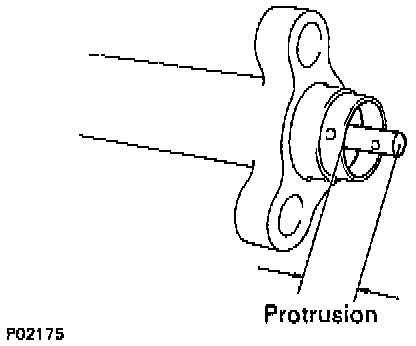

3. Measure the protrusion of the push rod from the housing end.
- Protrusion: 8.0-8.8 mm (0.315-0.346 inch).
- If the protrusion is not as specified, replace the tensioner.
