Automatic Transmission

1. Assembly engine and transmission.
2. Install the starter and engine wire to transmission.
3. Install A/T oil cooler pipes for transmission.

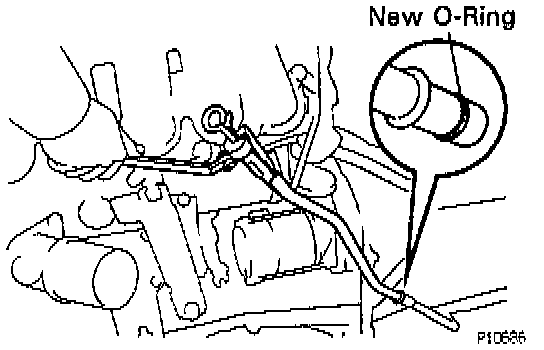

4. Install oil dipstick guide and dipstick for transmission as follows:





(a) Install a new O-ring to the dipstick guide.
(b) Apply soapy water to the O-ring.
(c) Push in the dipstick guide end to the dipstick tube of the oil pan.
(d) Install the dipstick guide with the bolt.
(e) Install the dipstick.
