Oil Pump Housing Removed From Engine

NOTE: Refer to engine Lubrication for Oil Pump remove and Install procedures.

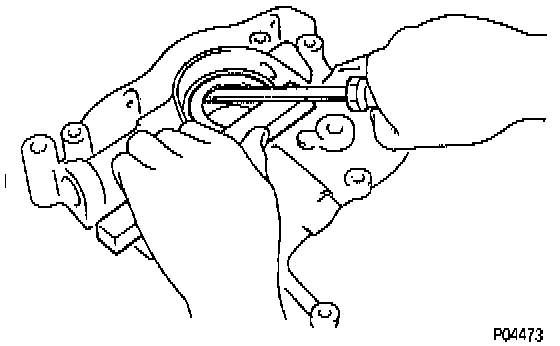

1. Using a screwdriver, pry out the oil seal.






2. Using seal driver Special Service Tool (SST) No. 09316-60011 (09316-00011), or equivalent, and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.
3. Apply MP grease to the oil seal lip.
