Intake Air Chamber

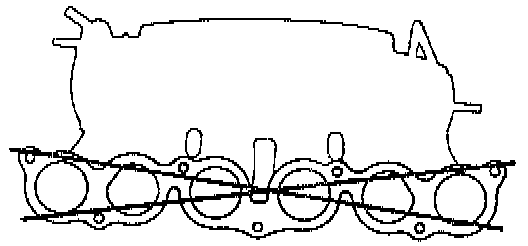

1. Using a precision straight edge and feeler gauge, measure the surface contacting the intake manifold for warpage.
Maximum warpage: 0.15 mm (0.0059 inch).
2. If warpage is greater than maximum, replace the chamber.
