Runout

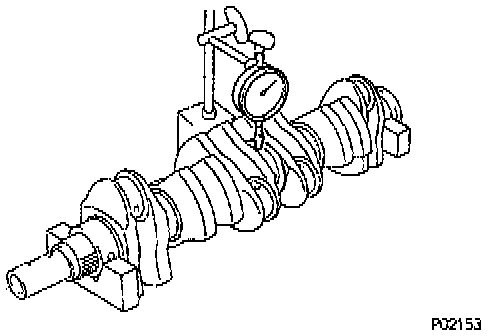

1. Place the crankshaft on V-blocks.
2. Using a dial indicator, measure the circle runout at the center journal.
Maximum circle runout: 0.060 mm (0.0024 inch).
3. If the circle runout is greater than maximum, replace the crankshaft.
1. Place the crankshaft on V-blocks.
2. Using a dial indicator, measure the circle runout at the center journal.
Maximum circle runout: 0.060 mm (0.0024 inch).
3. If the circle runout is greater than maximum, replace the crankshaft.
