Thrust Washer

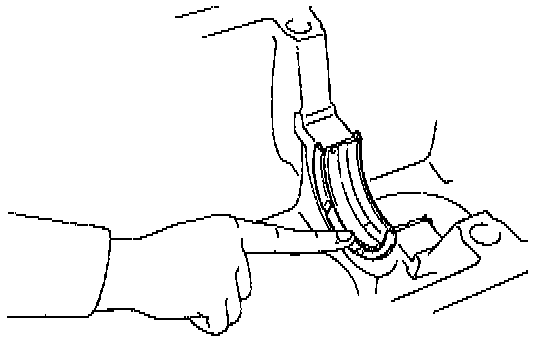

Install the 2 thrust washers under the No. 4 main journal position of the cylinder block with the on' grooves facing outward.
