Removal

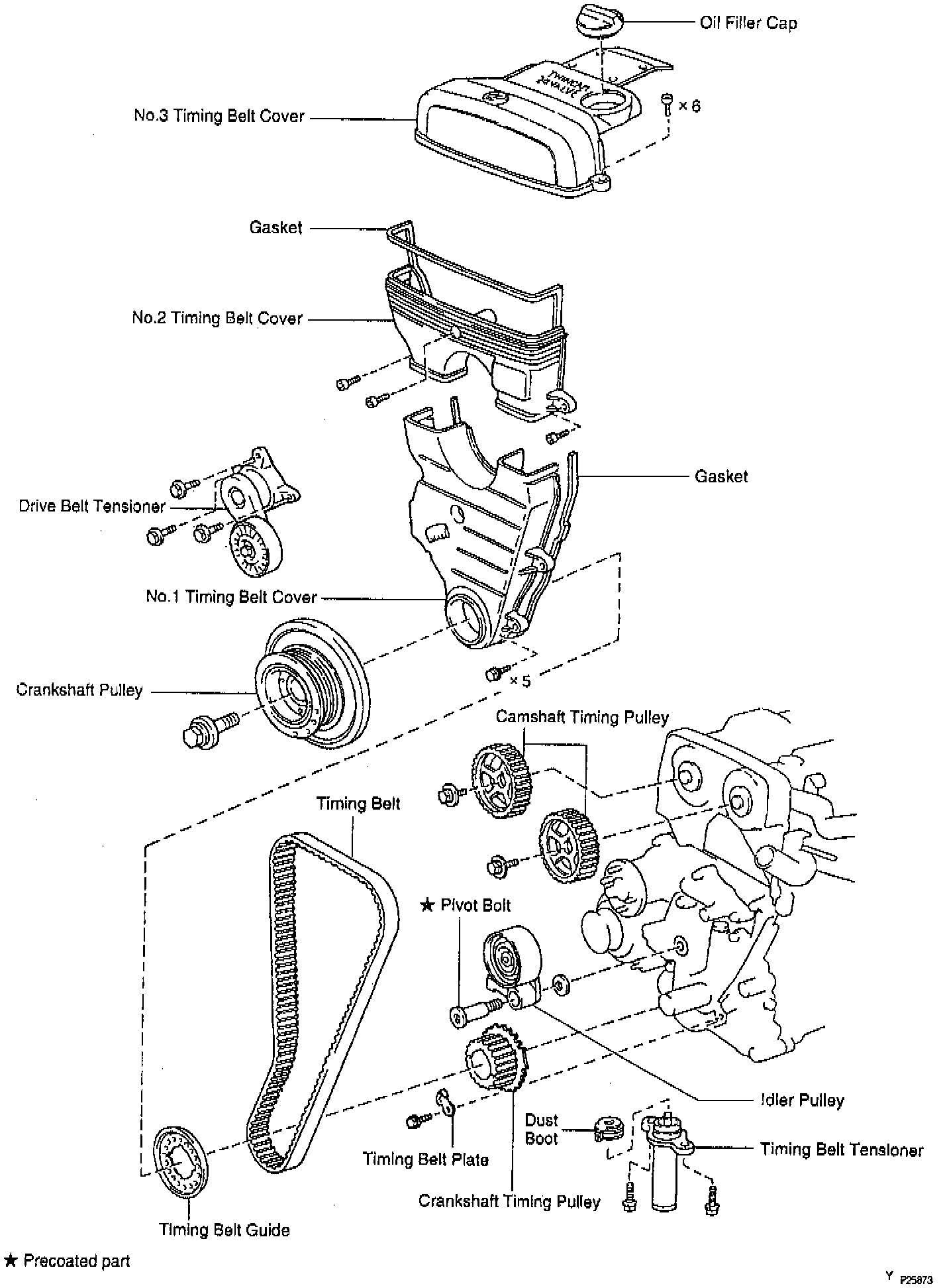

1. Remove the timing belt.
2. Remove the bolt and timing belt plate.
3. Remove the crankshaft timing pulley.





NOTE:

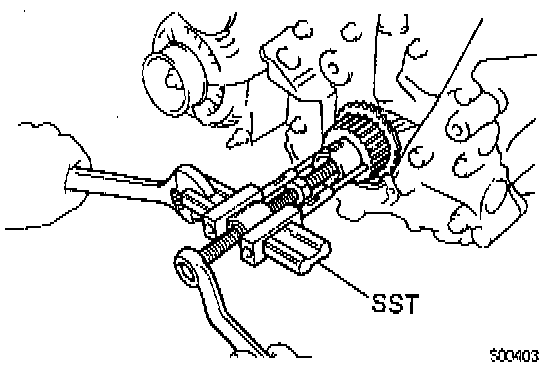

- If the pulley cannot be removed by hand, use a suitable puller set to remove the crankshaft timing pulley.
- Do not scratch the sensor wheel part the crankshaft timing pulley.
