Installation

1. Align the pulley set key with the key groove of the pulley.

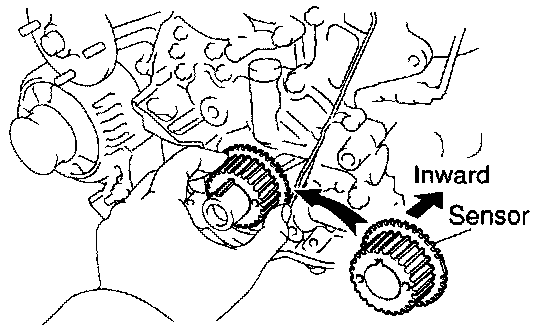

2. Slide on the timing pulley facing the flange side inward.

NOTE: Do not scratch the sensor part of the crankshaft timing pulley.

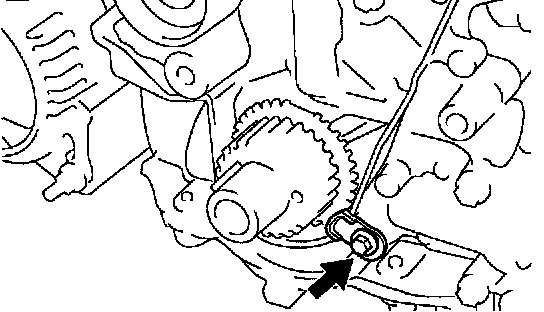

3. Install the timing belt plate with the bolt, tighten to 7.8 Nm (69 inch lbs.).
4. Install the timing belt plate and the remaining timing belt components.
