Bushing Replacement

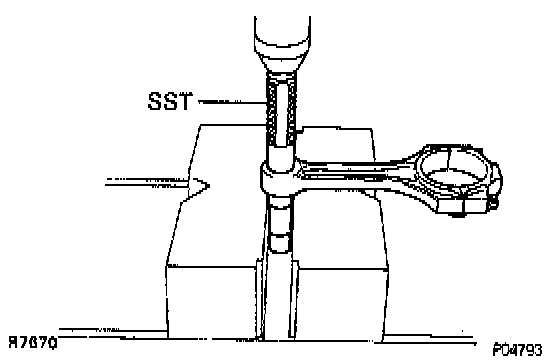

1. Using press Special Service Tool (SST) No. 09222-30010, or equivalent, and a suitable press, press out the bushing.

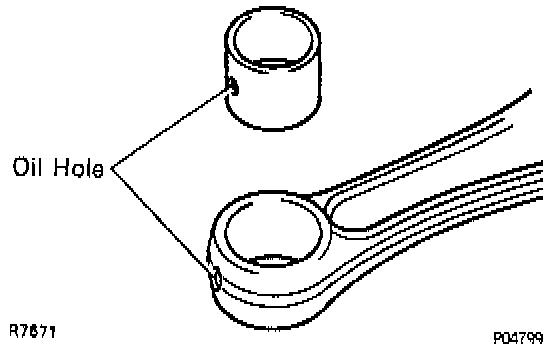

2. Align the oil holes of a new bushing and the connecting rod.
3. Using press tool and a press, press in the bushing.

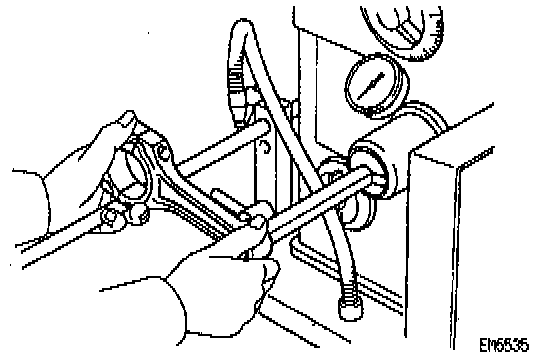

4. Using a suitable pin hole grinder, bore the bushing to obtain the standard specified clearance between the bushing and piston pin.
