Heater Core: Service and Repair

HEATER RADIATOR REMOVAL
1. REMOVE A/C UNIT
Evaporator Case

2. REMOVE HEATER RADIATOR

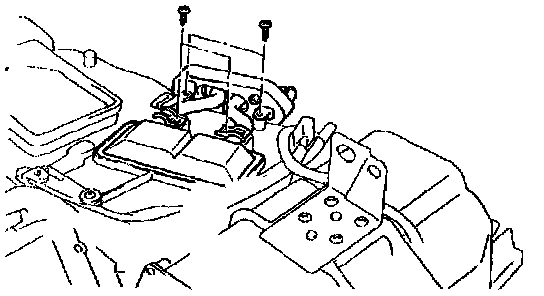

(a) Remove the 2 screws and the plate.
(b) Remove the 2 screws and the clamps.

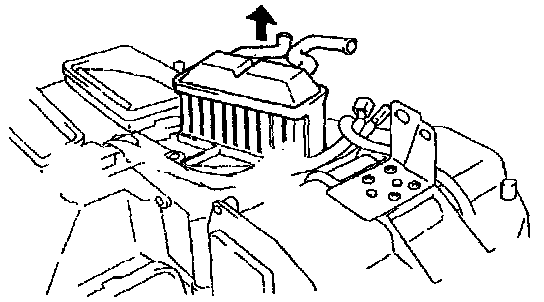

(c) Pull out the radiator.

HEATER RADIATOR INSTALLATION
Installation is in the reverse order of removal.
