Home >> Lexus >> 1997 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cellular Phone

Cellular Phone

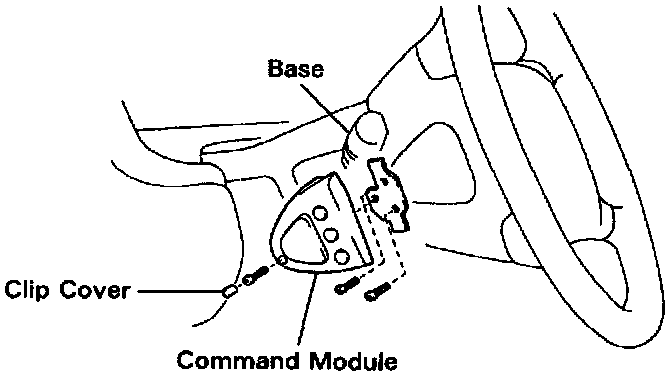

MICROPHONE (Hands Free)
COMPONENTS

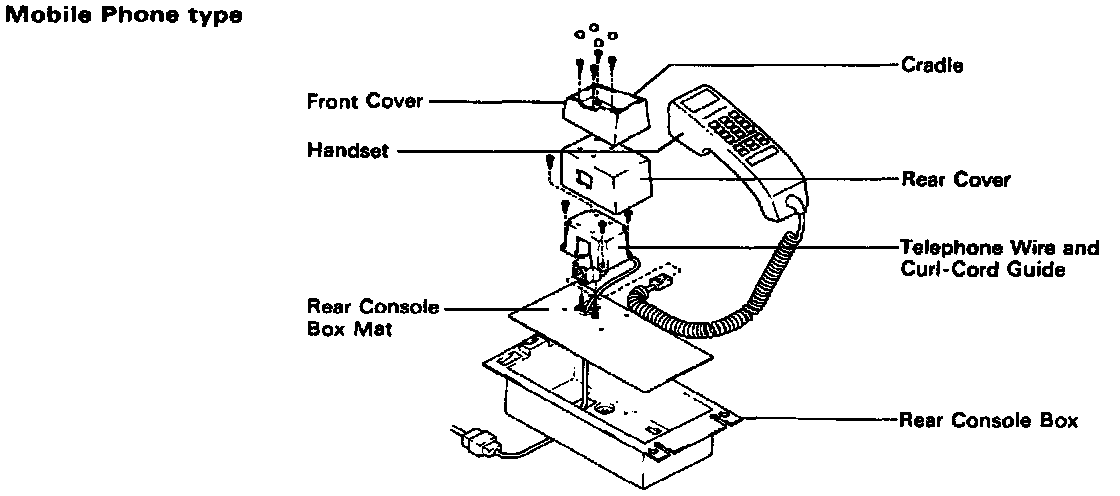

CELLULAR PHONE (Handset)
COMPONENTS





DOCKING PORTABLE TYPE

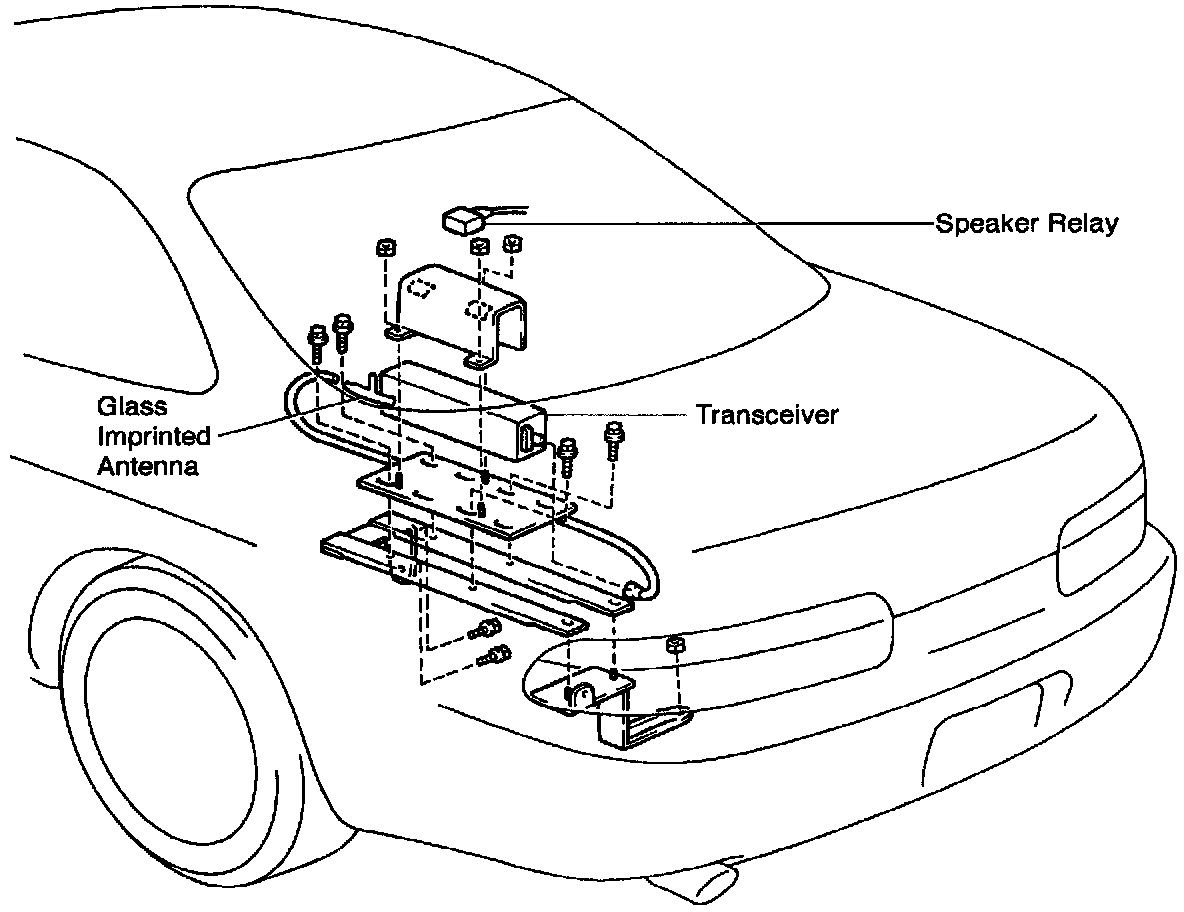

ANTENNA, TRANSCEIVER AND SPEAKER RELAY
